What Makes the Gflow Series Different
Built to Handle Wind, Rain, and Outdoor Conditions

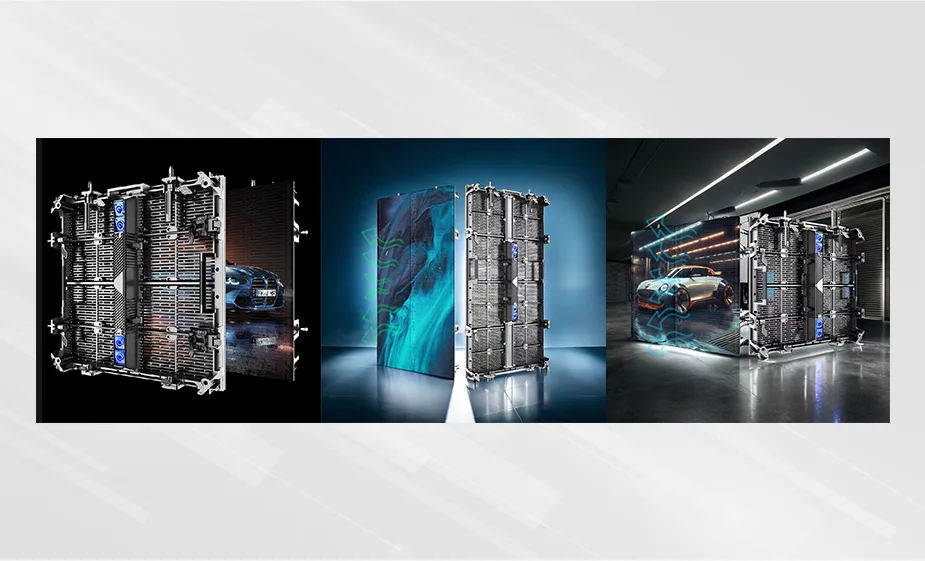

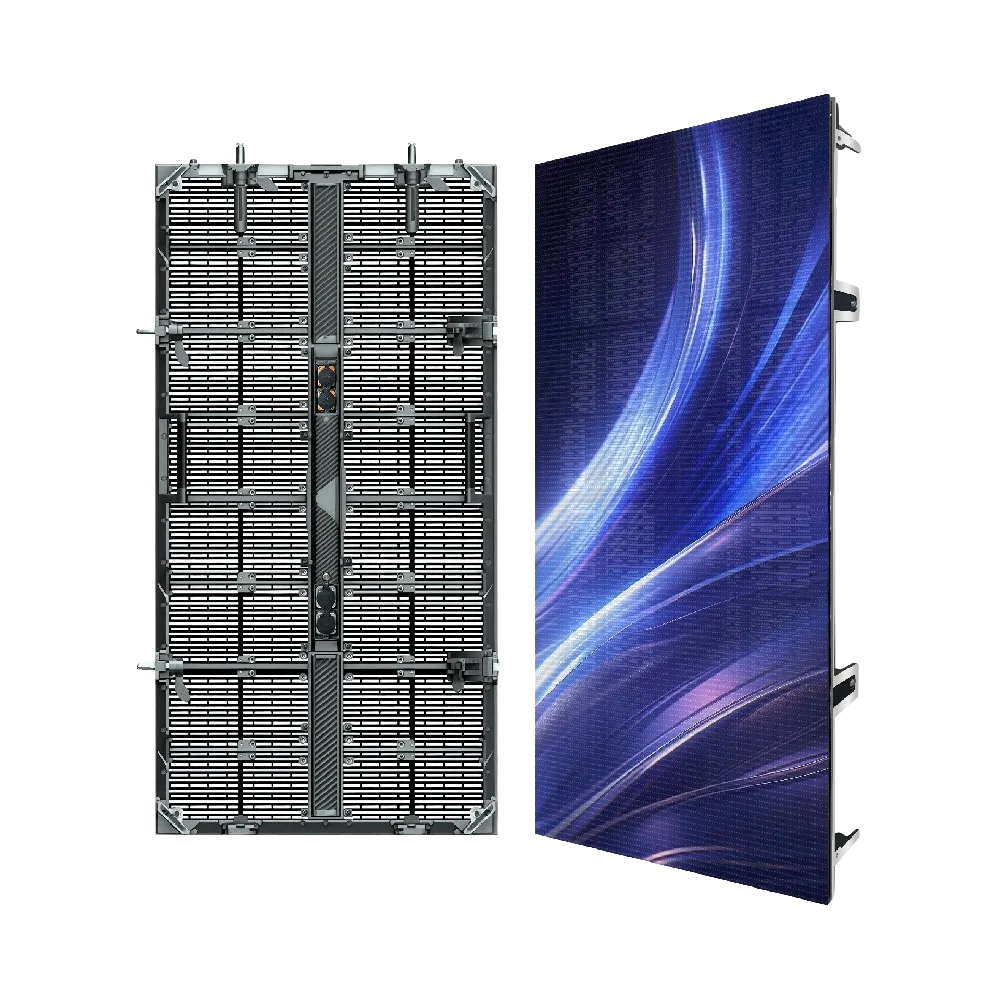

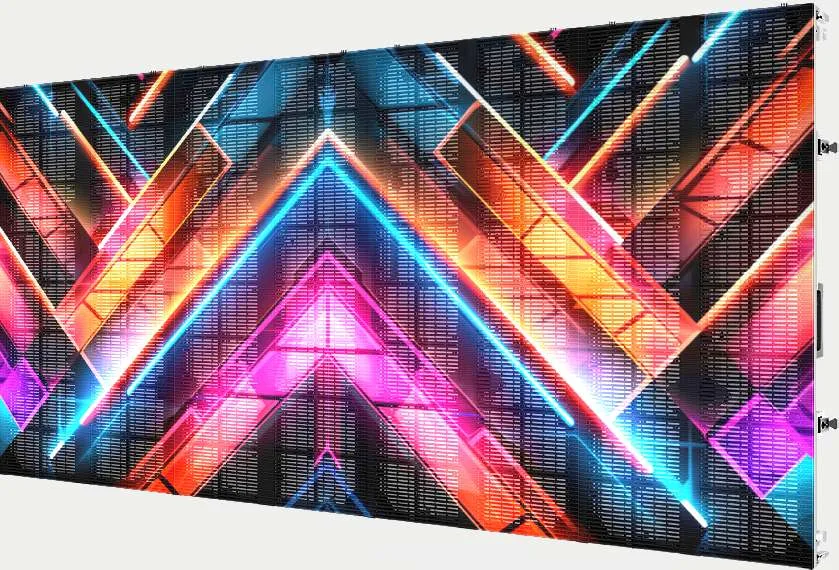

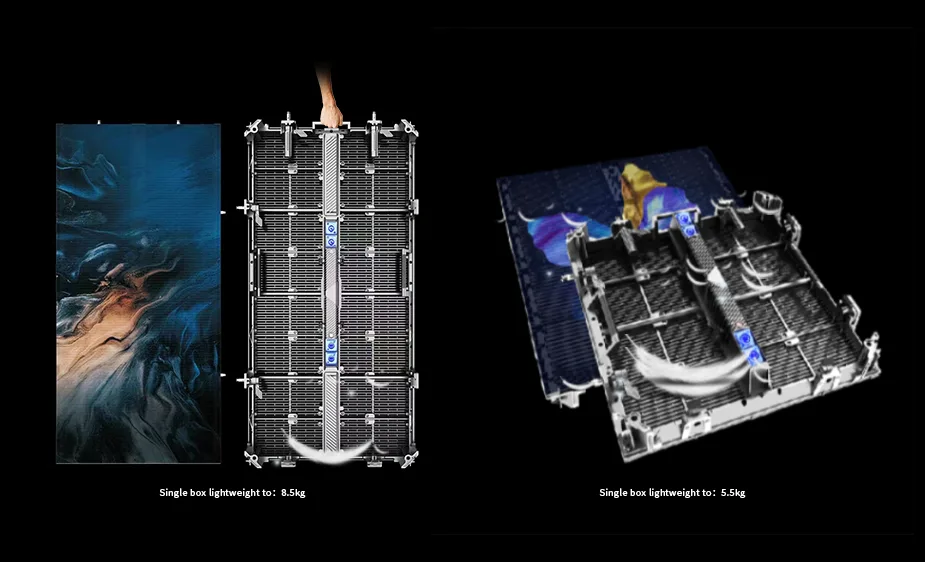

The Gflow's blown-through panel design lets wind pass freely through the display surface, dramatically reducing wind load and the structural requirements that come with it. With a 50% transparency rating, the panels require less material per square meter, which means lighter mounting infrastructure and lower transport weight.
4500 Nits for Full Daylight Visibility

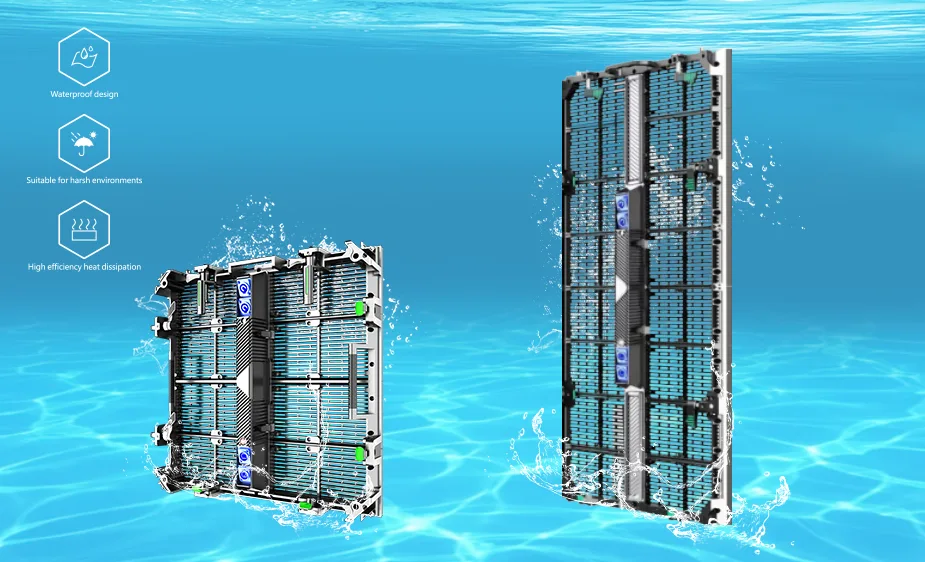

Outdoor visibility depends on brightness. At 4500 nits, Gflow panels deliver legible content in direct sunlight and maintain accurate color rendition from dusk through evening events. The IP65 rating ensures performance is unaffected by rain, dust, or humidity regardless of weather conditions.
L-Shapes, Corners, and Creative Structures

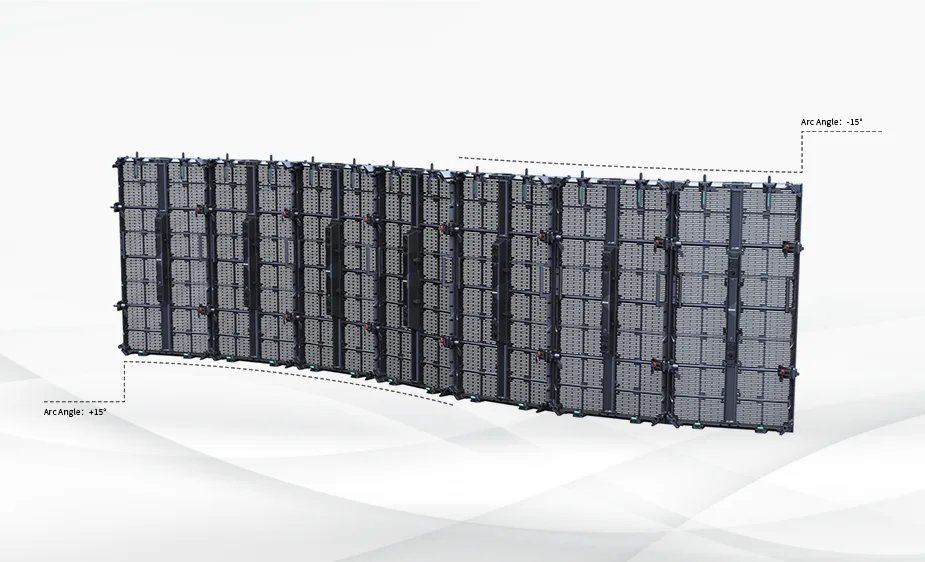

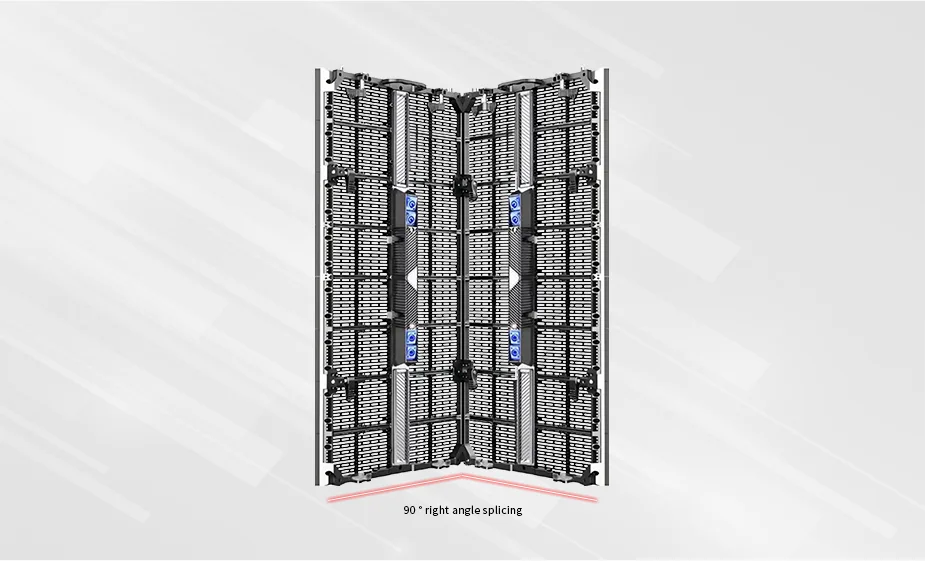

A 45-degree chamfered panel edge lets panels join at 90-degree angles without a visible seam, which opens up L-shaped screens, wraparound columns, and other shapes a flat panel simply can't form. Add in a -15 degrees to +15 degrees curve range, and the same panel inventory can build a straight wall, a gentle arc, or a sharp corner depending on what the stage design calls for that week.
Quick Setup with Integrated Connectors

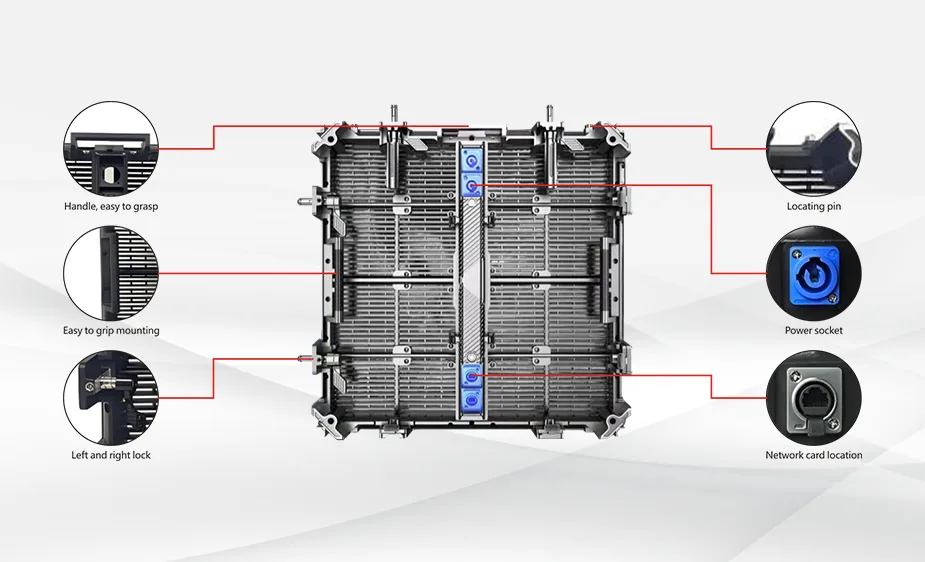

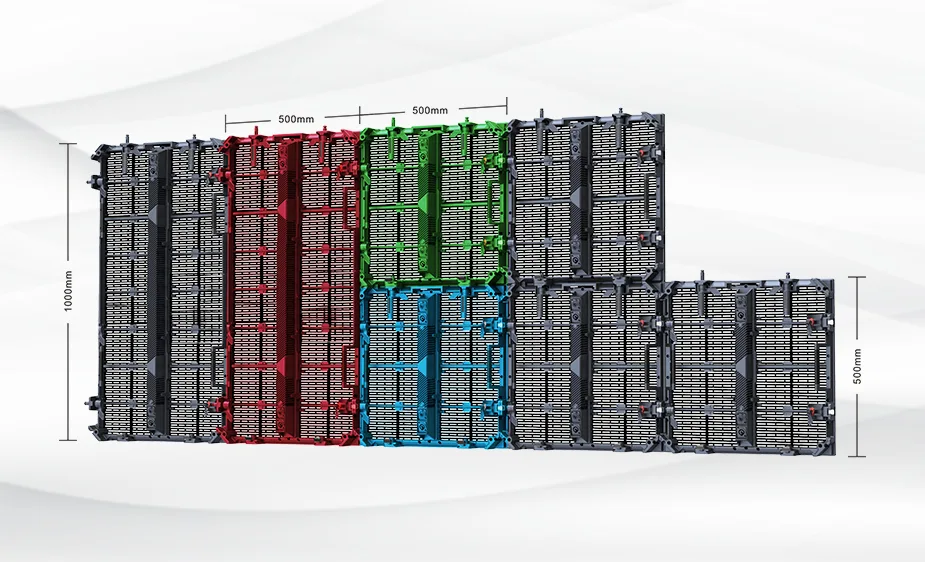

Gflow panels include integrated upper/lower positioning pins, left/right quick locks, and combined power and network connectors, reducing setup time and eliminating the cable management challenges common in outdoor rental installations. The 500x1000mm panel size gives installers a consistent building block for towers, walls, and irregular shaped structures alike.
Rear-Service Design for Outdoor Maintenance

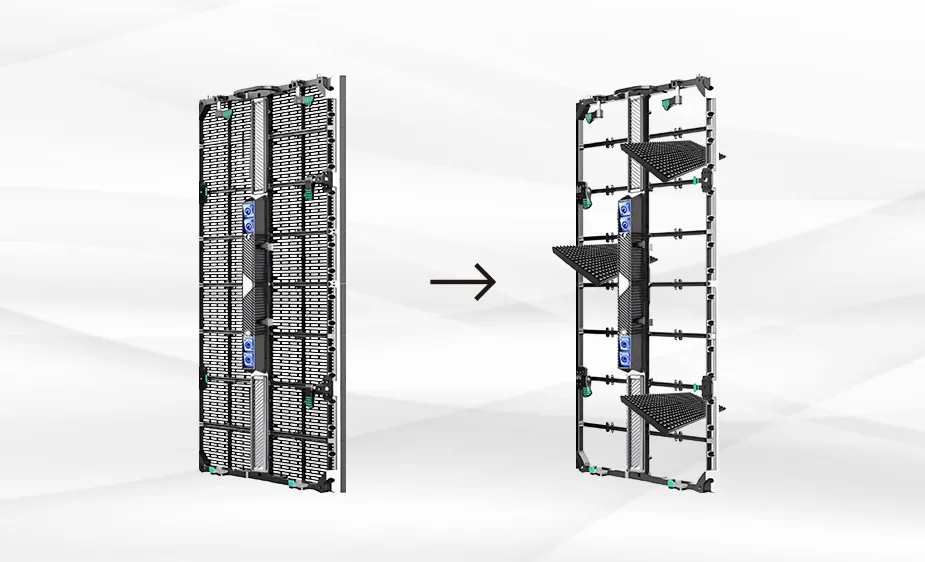

All modules pull from the rear for plug-and-play servicing. On an outdoor rig where the front face is boxed in by rigging or truss, that means a technician can swap a failed module from behind the display without tearing down the face or interrupting whatever's happening in front of it.
Every Display Includes Lifetime Benefits
Parts Warranty
Confidence in quality of construction & availability of replacement/repair parts
Lifetime Support
Contact our technical support team with any and all technical issues
Lifetime Cloud Access
Enjoy accessing your display(s) from anywhere and anytime
Lifetime Software
Viplex handy software included with all sign packages and displays
Easy Assembly
Simple plug and play modular panel for easy accessibility and troubleshooting
High Definition
Highest refresh rates in the industry with crystal clear images, text, and video content
Extreme Brightness
Vivid, high-impact visuals that stay clear and legible even in direct sunlight.
Where the Gflow Series Shines

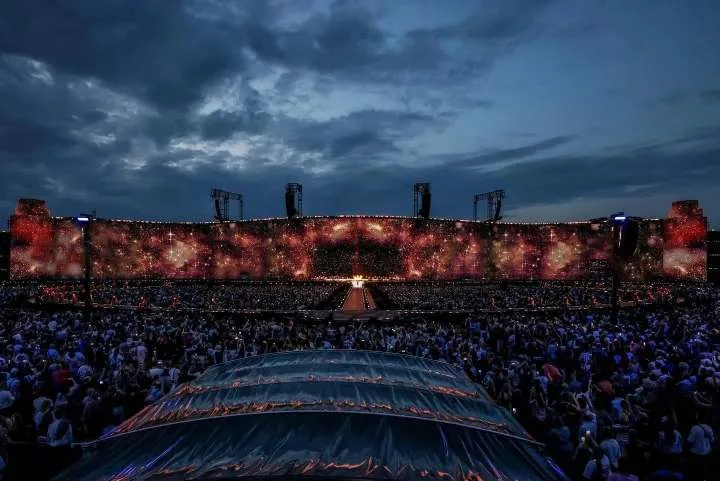

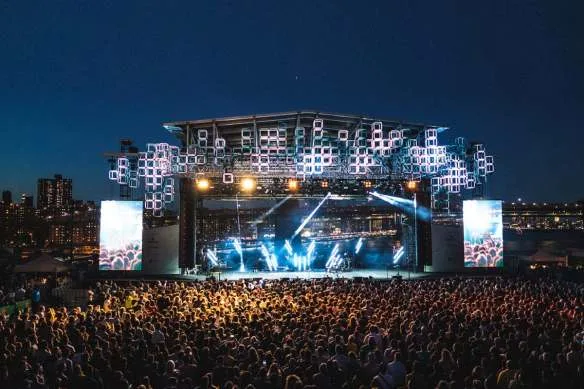

Outdoor concerts, festivals, brand activations, large-scale outdoor productions, creative LED structures, festival stages
Our Process
We have a simple, streamlined process once you have decided to purchase one of our Digital Displays.
Consultation & Survey
We review your site, define your sign program, and map every location, size, and mounting spec before design begins.
Design & Permitting
Certified shop drawings are produced and submitted for permit approval u2014 signed off by your team before production starts.
In-House Fabrication
Every sign is built in our own facility with in-house QC. No outsourcing means tighter quality and reliable lead times.
Installation & Sign-Off
Certified crews install every sign. We conduct a full walkthrough and provide documentation before handover.
Gflow Series Specifications
All specifications subject to change.
| Parameters | P3.9-7.8 |
|---|---|
| Pixel Pitch | 3.9-7.8mm |
| LED Type | SMD1921 |
| Brightness | 4500 nits |
| Scan Rate | 1/8 |
| Refresh Rate | 7680Hz |
| Panel Size | 500x1000mm |
| Panel Resolution (Pixel) | 128x128px |
| Module Size | 500x125mm |
| Panel Material | Die-casting Aluminum |
| Panel Weight | 19.8 lbs |
| Protection Level | IP65 |
| Maintenance | Rear Service |
| Max Power Consumption | 360W |
| Average Power Consumption | 180W |
| Grey Scale | 16-bit |
| Viewing Angle | H160, V160 |
| Curve Degrees (Optional) | -15 to +15 deg |
| Input Voltage | 100-240VAC |
| Working Temperature | -22F to +158F |
| Working Humidity | 10-90% RH |
| Color Temperature | 6500-9500K |
| Certifications | UL/EMC/CE/ROHS/CCC/FCC/ISO |
