Ggalaxy Series
Fine-Pitch Permanent Indoor LED Display
What Makes the Ggalaxy Series Different
Built for Indoor Installations That Can't Afford to Fail
This is our fine-pitch LED series for permanent indoor environments where picture quality and long-term durability aren't up for negotiation. With four pixel pitch options spanning P1.56 through P2.976, one product line covers everything from a boardroom viewed at arm's length to a lobby or atrium seen from across the room. Whether the install sits behind a reception desk or spans an entire wall, the same engineering and build quality carries through every pitch, so there's no compromise made just to fit a smaller or larger footprint.
GOB Protection on the Fine-Pitch Models
The P1.56 and P1.953 panels use GOB (Glue-on-Board) construction, which coats the LED surface in a protective resin layer during assembly. Sub-2mm pixel pitches are typically the most fragile part of any LED wall, and GOB changes that equation. Rated at IP34, the panel is built to handle dust and incidental splashing from daily use and cleaning, standing up to the kind of contact and airborne particles a busy indoor space naturally produces. In environments with heavy foot traffic or curious hands nearby, that resin layer is often the difference between a wall that still looks new after years of use and one that needs early module replacement.
Serviced From the Front, or the Back If You Prefer

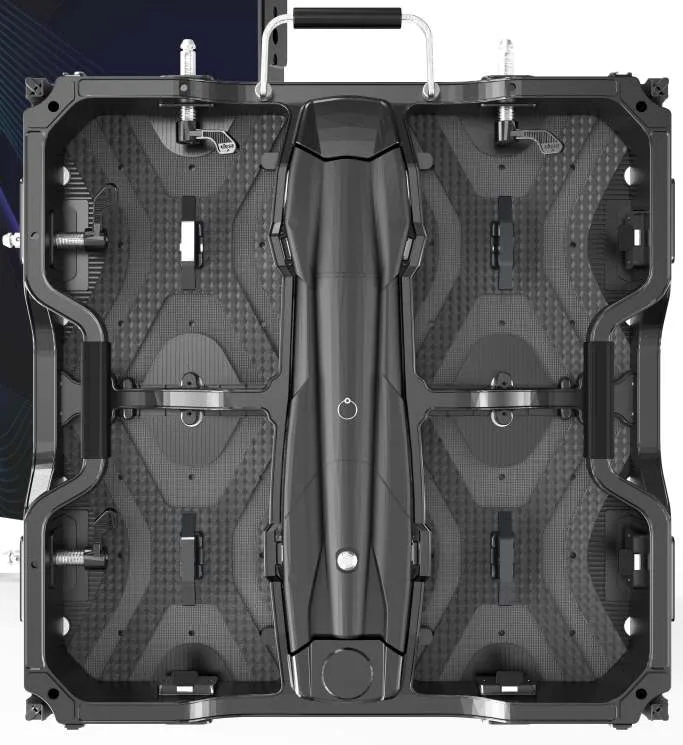

Every module, power supply, and HUB card on each panel can be reached from the front face. That matters for wall-mounted installs with no rear clearance and for any space where opening up a ceiling or wall cavity isn't practical. Rear access is still available on installations where it works better for the maintenance crew. Either way, technicians aren't forced to shut down a section of wall or disrupt the surrounding space just to swap a single module, which keeps downtime to a minimum.
A 7680Hz Refresh Rate That Holds Up on Camera
Refresh rate specs get thrown around a lot, but 7680Hz is where it actually shows up in the footage. A refresh rate this high is what keeps camera sensors from picking up the flicker or banding that lower-rated displays often produce on screen. That makes the line a strong fit for broadcast studios, presentation rooms, and any wall that's going to end up on a livestream or a video call. It also means less time spent color-correcting or re-shooting footage after the fact, since the image holds up well under a camera lens from the start.
Panels Sized for Practical Installs
Each panel weighs 17.6 lbs and holds to a 500u00d7500mm footprint across all four pixel pitches. That's a manageable weight and size for install crews to work with, and it keeps rigging, spares, and future expansion simple since every panel in the lineup shares the same physical dimensions. It also gives facilities teams an easier path if the display ever needs to grow or be reconfigured, since a spare panel from one pitch install slots into the mounting hardware the same way as any other.
Every Display Includes Lifetime Benefits
Parts Warranty
Confidence in quality of construction & availability of replacement/repair parts
Lifetime Support
Contact our technical support team with any and all technical issues
Lifetime Cloud Access
Enjoy accessing your display(s) from anywhere and anytime
Lifetime Software
Viplex handy software included with all sign packages and displays
Easy Assembly
Simple plug and play modular panel for easy accessibility and troubleshooting
High Definition
Highest refresh rates in the industry with crystal clear images, text, and video content
Extreme Brightness
Outshine the sunshine with 10,000+ nits
Where the Ggalaxy Series Shines
Broadcast studios, corporate boardrooms, command and control centers, high-end retail, museums, hospitality, conference venues
Our Process
We have a simple, streamlined process once you have decided to purchase one of our Digital Displays.
Consultation & Survey
We review your site, define your sign program, and map every location, size, and mounting spec before design begins.
Design & Permitting
Certified shop drawings are produced and submitted for permit approval u2014 signed off by your team before production starts.
In-House Fabrication
Every sign is built in our own facility with in-house QC. No outsourcing means tighter quality and reliable lead times.
Installation & Sign-Off
Certified crews install every sign. We conduct a full walkthrough and provide documentation before handover.
Ggalaxy Series Specifications
All specifications subject to change.
| Parameters | P1.56 | P1.953 | P1.953 (XR) | P2.6 | P2.6 (XR) | P2.976 |
|---|---|---|---|---|---|---|
| Pixel Pitch | 1.5625mm | 1.953mm | 1.953mm | 2.604mm | 2.604mm | 2.976mm |
| Assembly Technology | GOB | GOB | GOB | / | / | / |
| LED Type | SMD1212 | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD2020 |
| Brightness | 1000 nits | 1200 nits | 1200 nits | 1200 nits | 1200 nits | 1200 nits |
| Scan Rate | 1/20 | 1/16 | 1/8 | 1/16 | 1/8 | 1/21 |
| Refresh Rate | 7680Hz | 7680Hz | 7680Hz | 7680Hz | 7680Hz | 7680Hz |
| Panel Size | W19.7in x H19.7in (500x500mm) / W19.7in x H39.37in (500x1000mm available) | W19.7in x H19.7in (500x500mm) / W19.7in x H39.37in (500x1000mm available) | W19.7in x H19.7in (500x500mm) / W19.7in x H39.37in (500x1000mm available) | W19.7in x H19.7in (500x500mm) / W19.7in x H39.37in (500x1000mm available) | W19.7in x H19.7in (500x500mm) / W19.7in x H39.37in (500x1000mm available) | W19.7in x H19.7in (500x500mm) / W19.7in x H39.37in (500x1000mm available) |
| Panel Resolution | 320x320 | 256x256 | 256x256 | 192x192 | 192x192 | 168x168 |
| Module Size | H9.85in x W9.85in | H9.85in x W9.85in | H9.85in x W9.85in | H9.85in x W9.85in | H9.85in x W9.85in | H9.85in x W9.85in |
| Panel Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Panel Weight | 17.6 lbs | 17.6 lbs | 17.6 lbs | 17.6 lbs | 17.6 lbs | 17.6 lbs |
| Protection Level | IP34 | IP34 | IP34 | IP34 | IP34 | IP34 |
| Maintenance | 100% Front and Rear Service | 100% Front and Rear Service | 100% Front and Rear Service | 100% Front and Rear Service | 100% Front and Rear Service | 100% Front and Rear Service |
| Max Power Consumption | 143W | 143W | 158W | 143W | 158W | 143W |
| Avg Power Consumption | 71.5W | 71.5W | 79W | 71.5W | 79W | 71.5W |
| Grey Scale | 16-bit | 16-bit | 16-bit | 16-bit | 16-bit | 16-bit |
| Viewing Angle | H160, V160 | H160, V160 | H160, V160 | H160, V160 | H160, V160 | H160, V140 |
| Input Voltage | Wide Range 100-240VAC | Wide Range 100-240VAC | Wide Range 100-240VAC | Wide Range 100-240VAC | Wide Range 100-240VAC | Wide Range 100-240VAC |
| Working Temperature | -22F to +149F | -22F to +149F | -22F to +149F | -22F to +149F | -22F to +149F | -22F to +149F |
| Working Humidity | 10%-90% RH | 10%-90% RH | 10%-90% RH | 10%-90% RH | 10%-90% RH | 10%-90% RH |
| Color Temperature | 6500-9500K | 6500-9500K | 6500-9500K | 6500-9500K | 6500-9500K | 6500-9500K |
| Certifications | UL/EMC/CE/ROHS/CCC/FCC/ISO | UL/EMC/CE/ROHS/CCC/FCC/ISO | UL/EMC/CE/ROHS/CCC/FCC/ISO | UL/EMC/CE/ROHS/CCC/FCC/ISO | UL/EMC/CE/ROHS/CCC/FCC/ISO | UL/EMC/CE/ROHS/CCC/FCC/ISO |
