Ghalo Series
Ultra-HD Indoor LED Wall with All-Front Maintenance
What Makes the Ghalo Series Different

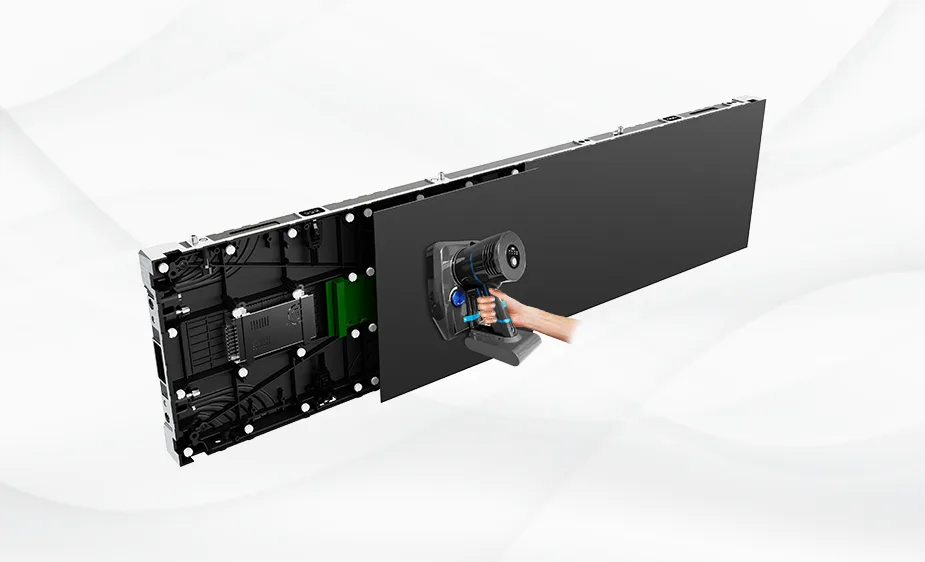

All-Front Maintenance, No Rear Access Needed
A magnetic LED module design lets every component be serviced from the front face, no access to the rear of the installation required. That means no maintenance corridors, no suspended ceiling disruption, no clearance carved out behind the wall. The display integrates cleanly into a finished space and stays that way for the life of the installation.

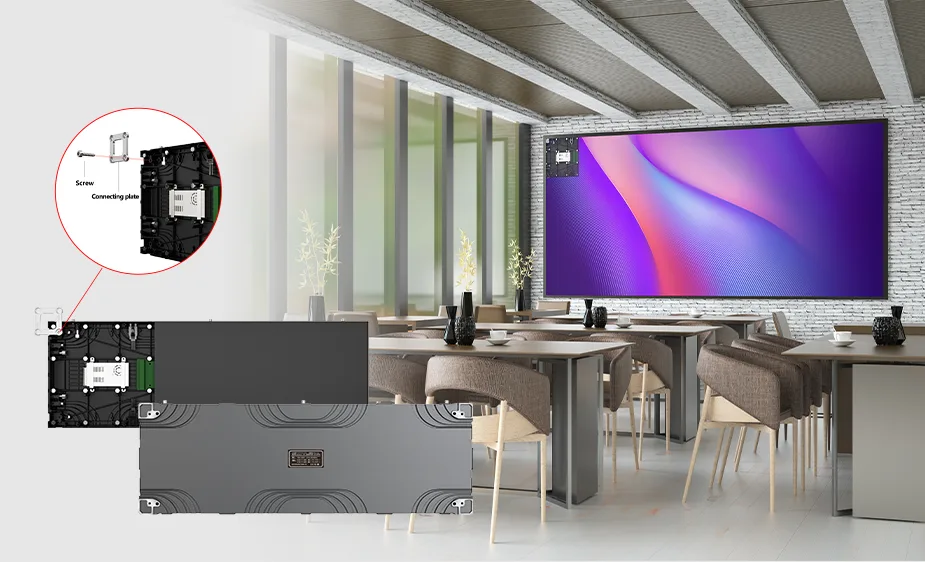

Ultra-Thin, Structure-Free Installation

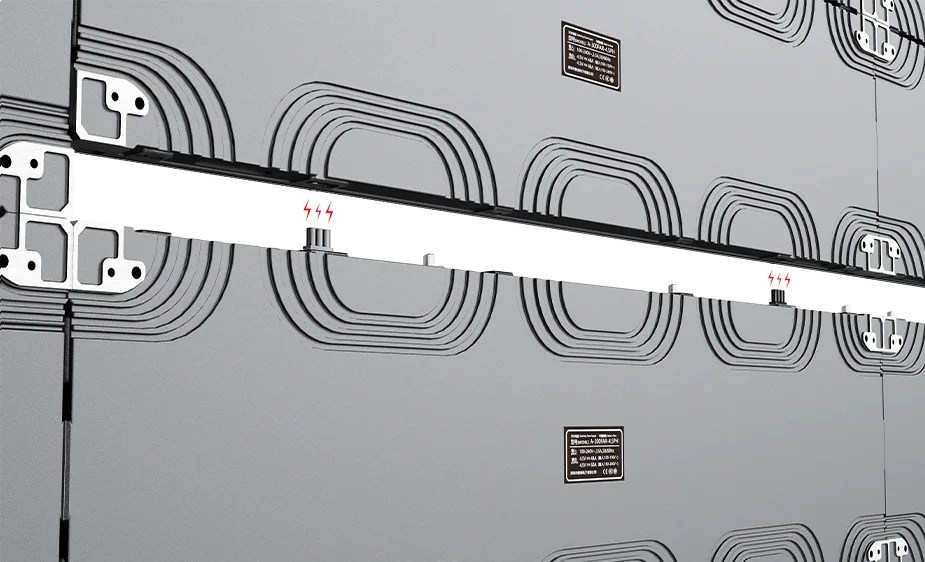

At just 38mm (1.5 inches) of cabinet depth and 8.5kg to 10.5kg per panel (roughly 18.7 to 23.1 lbs), this series mounts directly to walls without the steel subframe most indoor LED walls require. That cuts material cost, simplifies installation, and reclaims space that would otherwise go to a support structure sitting behind the display.

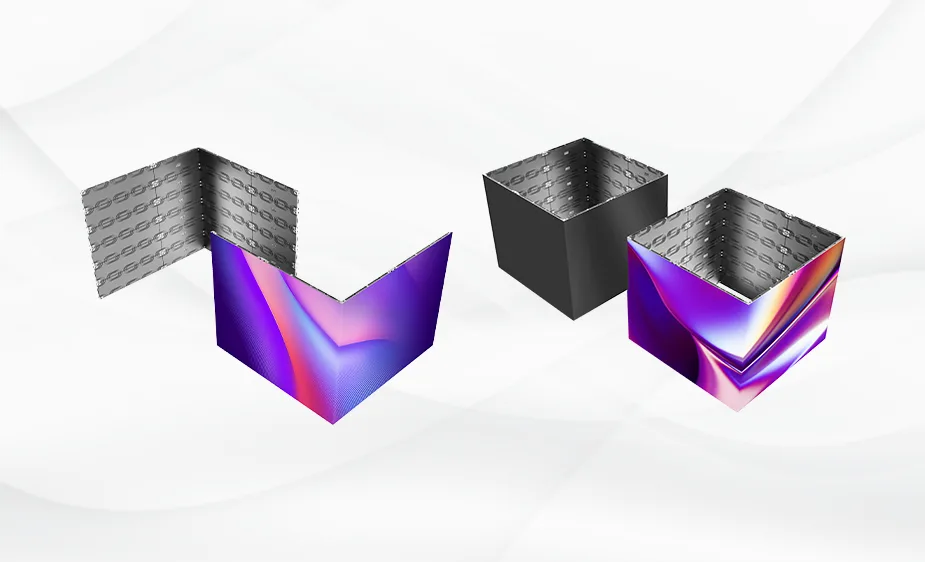

Column Wraps and 90-Degree Corner Configurations

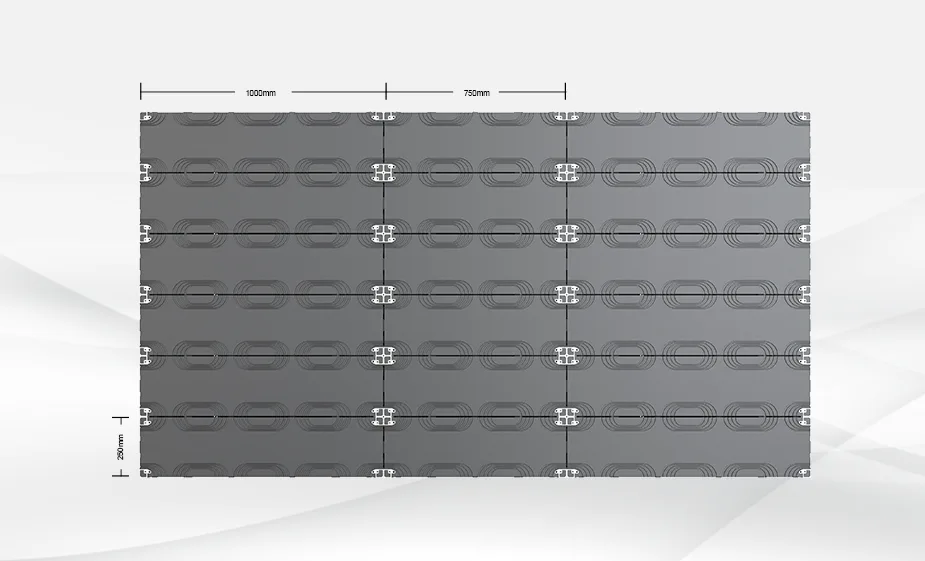

A 45-degree angled cabinet edge allows seamless 90-degree splicing, wrapping the display around columns, room corners, and architectural features without visible gaps or frame intrusion. Two panel sizes, 750u00d7250mm and 1000u00d7250mm, give layout flexibility across installations of different dimensions.
7680Hz for Demanding Visual Environments
Control rooms, studios, and presentation spaces all share the same requirement: a display that reads cleanly on camera and holds up under close scrutiny. A 7680Hz refresh rate delivers flicker-free, smooth visual performance across all three pixel pitch options, P1.5 through P2.6, without trading off consistency between the finer and coarser configurations.

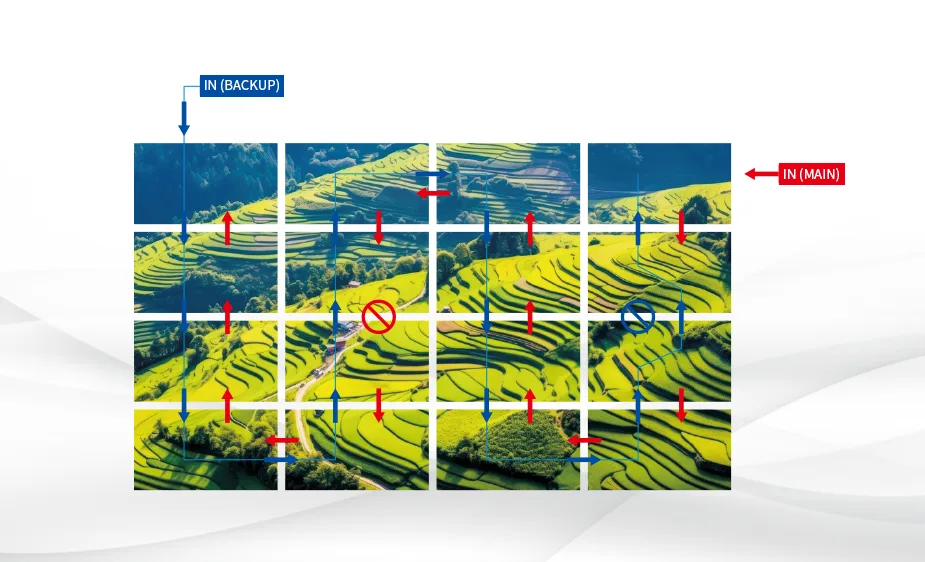

Built-In Redundancy
Dual power and signal backup keeps the display running if a primary component fails, a real safeguard in control rooms and mission-critical presentation spaces where downtime isn't an option. The backup activates automatically, with no visible interruption to whatever's on screen when the switch happens.
Every Display Includes Lifetime Benefits
Parts Warranty
Confidence in quality of construction & availability of replacement/repair parts
Lifetime Support
Contact our technical support team with any and all technical issues
Lifetime Cloud Access
Enjoy accessing your display(s) from anywhere and anytime
Lifetime Software
Viplex handy software included with all sign packages and displays
Easy Assembly
Simple plug and play modular panel for easy accessibility and troubleshooting
High Definition
Highest refresh rates in the industry with crystal clear images, text, and video content
Extreme Brightness
Outshine the sunshine with 10,000+ nits
Where the Ghalo Series Shines
Corporate conference rooms, control rooms, high-end retail, education and training facilities, studio and presentation environments, indoor advertising
Our Process
We have a simple, streamlined process once you have decided to purchase one of our Digital Displays.
Consultation & Survey
We review your site, define your sign program, and map every location, size, and mounting spec before design begins.
Design & Permitting
Certified shop drawings are produced and submitted for permit approval u2014 signed off by your team before production starts.
In-House Fabrication
Every sign is built in our own facility with in-house QC. No outsourcing means tighter quality and reliable lead times.
Installation & Sign-Off
Certified crews install every sign. We conduct a full walkthrough and provide documentation before handover.
Ghalo Series Specifications
All specifications subject to change.
| Parameters | P1.5 | P1.9 | P2.6 |
|---|---|---|---|
| Pixel Pitch | 1.5625mm | 1.953mm | 2.604mm |
| Panel Size | 750x250mm or 1000x250mm | 750x250mm or 1000x250mm | 750x250mm or 1000x250mm |
| Module Size | 250x250mm | 250x250mm | 250x250mm |
| Panel Weight | 8.5kg or 10.5kg | 8.5kg or 10.5kg | 8.5kg or 10.5kg |
| Panel Maintenance | Full Front Service | Full Front Service | Full Front Service |
