Gsurface-V Series
High-Brightness Outdoor LED Video Wall
What Makes the Gsurface-V Series Different
High-Brightness Performance for Permanent Outdoor Use

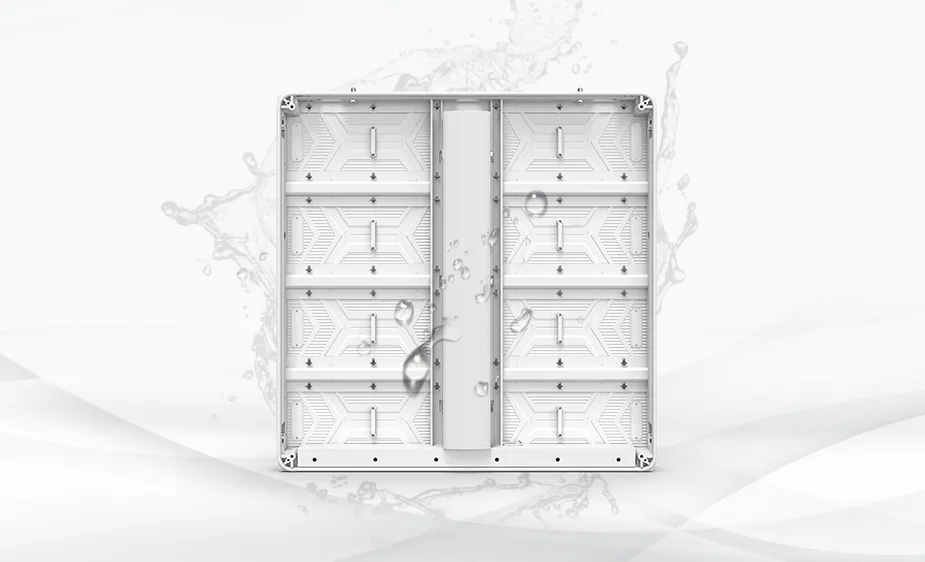

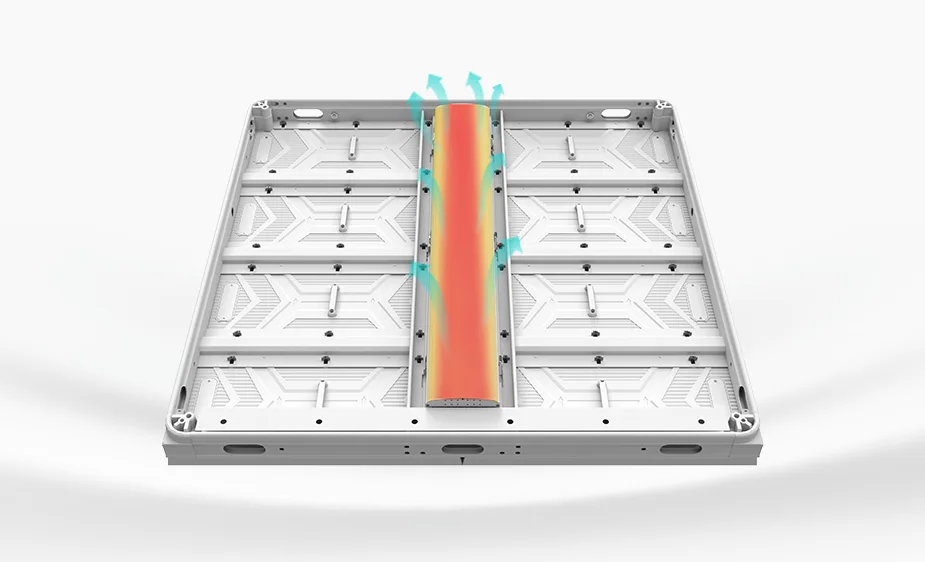

This series is built for installations that run through years of continuous outdoor exposure, summer heat, driving rain, and everything in between. IP65-rated modules seal out dust and moisture from every direction, and an active cooling system, a fan paired with a full aluminum rear housing, keeps pixel performance consistent through peak heat without needing a separate HVAC system bolted onto the structure.
Flexible Cabinet Sizing

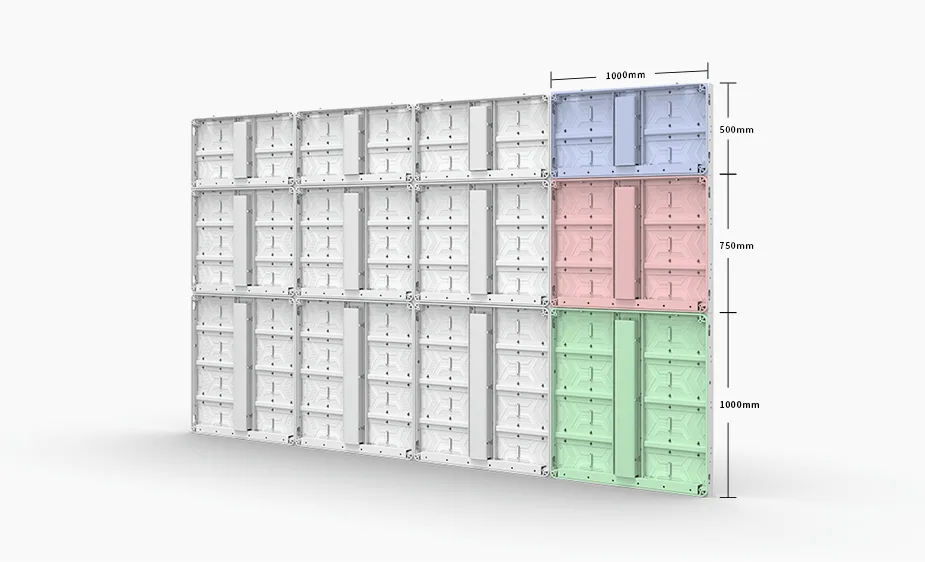

The 1000 x 1000mm cabinet size assembles into precise screen dimensions without custom fabrication. Five pixel pitch options, from P3.91 to P10.4, cover close-viewing storefront applications through large-format stadium and roadside signage.
Naked-Eye 3D Corner Configuration

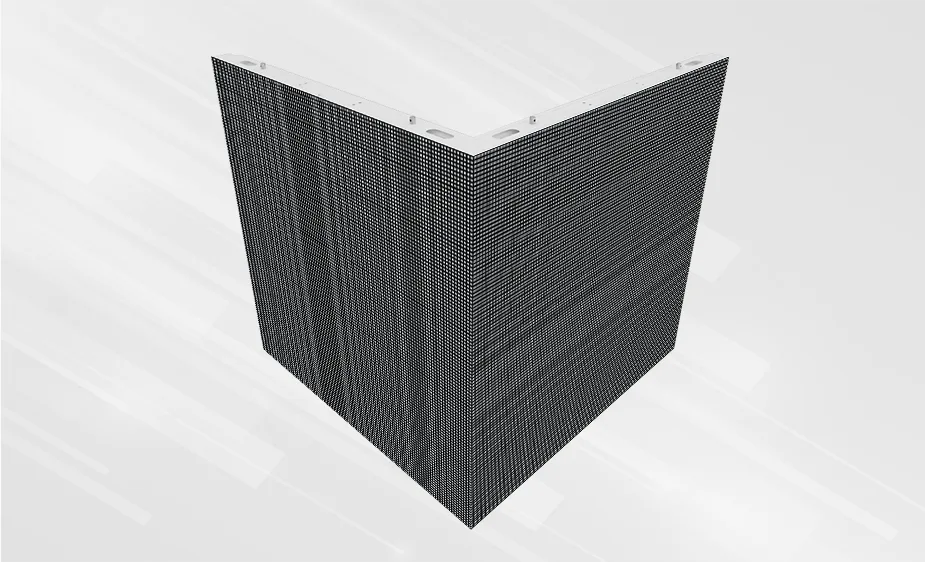

A 45 degree corner module lets adjacent cabinets wrap around a true right angle without a visible seam or frame gap. That configuration is what makes naked-eye 3D content possible on a building corner, a format that's picked up real momentum on high-traffic commercial intersections where a wraparound illusion draws far more attention than a flat screen ever could.
Modular Service Design

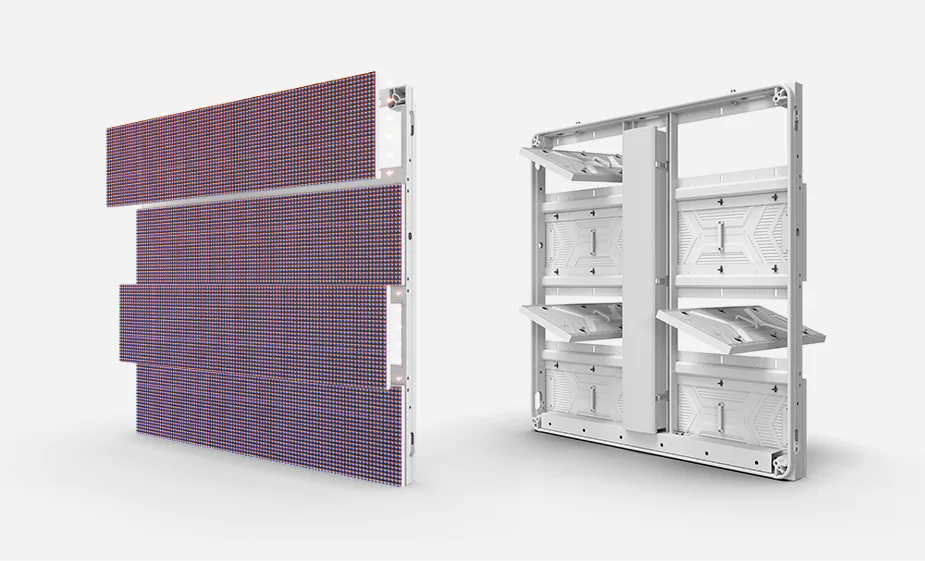

Individual modules swap in the field without disrupting adjacent units or taking the whole display offline. Front and rear access covers different installation setups, and each component, module, power supply, signal connection, can be serviced on its own without touching the rest of the system. That level of independence keeps a single fault from turning into a full-display shutdown.
100,000-Hour Lifespan, Low Power Draw
Starting at 200W minimum power consumption per cabinet, this display runs efficiently around the clock, and a rated lifespan of 100,000 hours works out to roughly eleven years of continuous operation. For clients evaluating total cost of ownership on a permanent installation, that combination of low draw and long service life is often the number that decides the deal.
Every Display Includes Lifetime Benefits
Parts Warranty
Confidence in quality of construction & availability of replacement/repair parts
Lifetime Support
Contact our technical support team with any and all technical issues
Lifetime Cloud Access
Enjoy accessing your display(s) from anywhere and anytime
Lifetime Software
Viplex handy software included with all sign packages and displays
Easy Assembly
Simple plug and play modular panel for easy accessibility and troubleshooting
High Definition

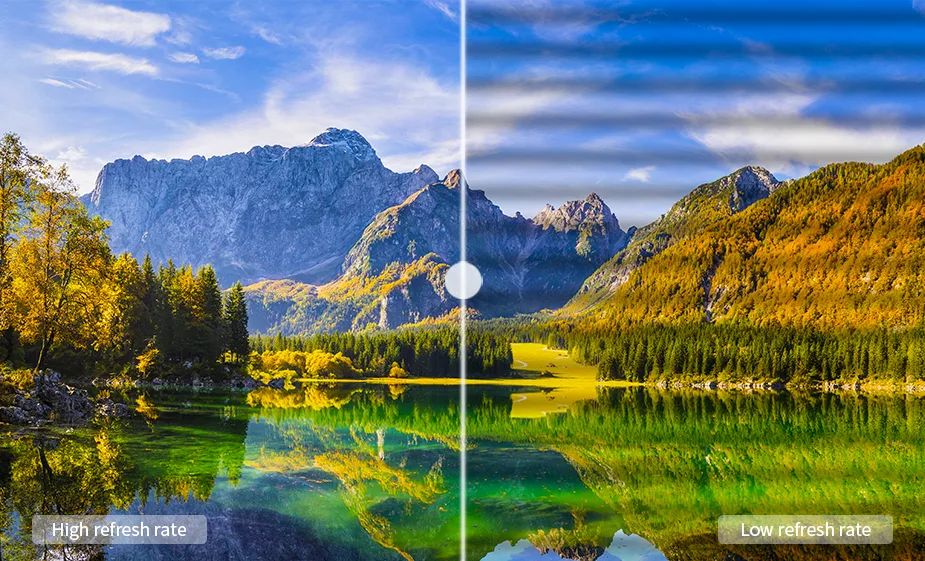

Highest refresh rates in the industry with crystal clear images, text, and video content
Extreme Brightness
Built to stay legible under direct outdoor sunlight
Where the Gsurface-V Series Shines
Retail and commercial storefronts, sports stadium perimeters, transportation hubs, outdoor 3D advertising installations, corporate and civic permanent signage
Our Process
We have a simple, streamlined process once you have decided to purchase one of our Digital Displays.
Consultation & Survey
We review your site, define your sign program, and map every location, size, and mounting spec before design begins.
Design & Permitting
Certified shop drawings are produced and submitted for permit approval u2014 signed off by your team before production starts.
In-House Fabrication
Every sign is built in our own facility with in-house QC. No outsourcing means tighter quality and reliable lead times.
Installation & Sign-Off
Certified crews install every sign. We conduct a full walkthrough and provide documentation before handover.
Gsurface-V Series Specifications
All specifications subject to change.
| Parameters | P3 | P4 | P6 | P8 | P10 |
|---|---|---|---|---|---|
| Pixel Pitch | 3.91mm | 4.81mm | 6.25mm | 7.81mm | 10.4mm |
| Panel Size | W1000 x H1000 x 78mm | W1000 x H1000 x 78mm | W1000 x H1000 x 78mm | W1000 x H1000 x 78mm | W1000 x H1000 x 78mm |
| Module Size | 500x250mm | 500x250mm | 500x250mm | 500x250mm | 500x250mm |
| Panel Weight | 29kg | 29kg | 29kg | 29kg | 29kg |
| Panel Maintenance | Front & Rear Service | Front & Rear Service | Front & Rear Service | Front & Rear Service | Front & Rear Service |
