Max Indoor Commercial LED Display (P1.25 ~ P4)

Max Series (P1.25/1.37/1.53/1.66/1.86/2/2.5/3/3.3/4) is the ideal choice for LED screens for indoor use. Sturdy and durable, our Max indoor commercial LED display series ensures long-lasting results for your business. This series sports the same proportion of video source as LED screens—thus, emerging as the most trusted recommendation for directly replacing the LCDs.

Key Benefits:

1. It has a 640mm*480mm cabinet size, and can be seamlessly assembled into 4:3/16:9 large screens.

2. It can be mounted on the wall directly, thus saving your space and labor.

3. The cabinet is made of lightweight die-casting aluminum.

4. It offers the convenience of wall-mounted installation, front service for modules, power supply units, and cards.

5. It boasts of a flat, clean appearance. It’s also easy to install and disassemble.

6. The cabinet adopts simple internal wiring, which helps users splice the cabinets.

7. It has the perfect design of lamp board PCB, high-end IC, showing high grayscale, refresh, and brightness.

8. It also ensures good heat dissipation and no noise, saves energy, and provides environmental protection.

Applications:

Our Max Indoor Commercial LED Displays can be widely used for commercial display, indoor fixed advertising, auditoriums, conference rooms, banquets, vestibules, exhibition demonstration, transportation, studio, command control, and more.

United Signs

Indoor High-definition LED Display

Our cutting-edge LED display can be seamlessly installed on the wall. Maintain the full module, power supply, and system cards directly from the front.

Product Specifications

Cabinet Size: 640*480*70mm

Product Parameters

Parameters
Product Series
Pixel Pitch (mm)
Pixel Density (dots/m2)
LED Encapsulation
Driving Method
Resolution of Module
Module Size (mm)
Module Consumption
Cabinet Size (mm)
Working Voltage (v)
Max Consumption (w/m2)
Ave. Consumption (w/m2)
Brightness (nit)
Color Temperature
Viewing Angle
Refresh Rate (hz)
Working Temperature
Protection Degree
Greyscale
Specifications
Product
1.25mm
640000
SMD1010
1/64
256*128
320*160*15
≤27W
640*480*70mm
DC4.6V
≤550W/m2
≤180W/m2
600 CD/m2
6000K-8000K
120°/120°
1920Hz-3840Hz
-20~50°C
IP40
≥13bit
1.37mm
525861
SMD1010
1/52
256*128
320*160*15
≤27W
640*480*70mm
DC4.6V
≤550W/m2
≤180W/m2
450 CD/m2
6000K-8000K
120°/120°
1920Hz-3840Hz
-20~50°C
IP40
≥13bit
1.53mm
422500
SMD1010
1/52
208*104
320*160*15
≤27W
640*480*70mm
DC4.6V
≤550W/m2
≤180W/m2
600 CD/m2
6000K-8000K
120°/120°
1920Hz-3840Hz
-20~50°C
IP40
≥13bit
1.66mm
360000
SMD1212
1/48
192*96
320*160*15
≤27W
640*480*70mm
DC4.6V
≤550W/m2
≤180W/m2
600 CD/m2
6000K-8000K
120°/120°
1920Hz-3840Hz
-20~50°C
IP40
≥13bit
1.86mm
288906
SMD1515
1/43
172*86
320*160*15
≤27W
640*480*70mm
DC4.6V
≤550W/m2
≤180W/m2
600 CD/m2
6000K-8000K
120°/120°
1920Hz-3840Hz
-20~50°C
IP40
≥13bit
2mm
250000
SMD1515
1/40
160*80
320*160*15
≤27W
640*480*70mm
DC4.6V
≤550W/m2
≤180W/m2
600 CD/m2
6000K-8000K
120°/120°
1920Hz-3840Hz
-20~50°C
IP40
≥13bit
2.5mm
160000
SMD1515
1/32
128*64
320*160*17
≤18.5W
640*480*70mm
DC4.6V
≤360W/m2
≤120W/m2
600 CD/m2
6000K-8000K
120°/120°
1920Hz-3840Hz
-20~50°C
IP40
≥13bit
3mm
105625
SMD2020
1/26
104*52
320*160*18
≤22W
640*480*70mm
DC4.6V
≤430W/m2
≤140W/m2
450 CD/m2
6000K-8000K
120°/120°
1920Hz-3840Hz
-20~50°C
IP40
≥13bit
3.3mm
90180
SMD2020
1/24
96*48
320*160*17
≤22W
640*480*70mm
DC4.6V
≤430W/m2
≤140W/m2
450 CD/m2
6000K-8000K
120°/120°
1920Hz-3840Hz
-20~50°C
IP40
≥13bit
4mm
62500
SMD2020
1/20
80*40
320*160*18
≤20W
640*480*70mm
DC4.6V
≤390W/m2
≤130W/m2
450 CD/m2
6000K-8000K
120°/120°
1920Hz-3840Hz
-20~50°C
IP40
≥13bit

Product Details

High Precision

Die-cast aluminum cabinet, high precision, and remarkable flatness

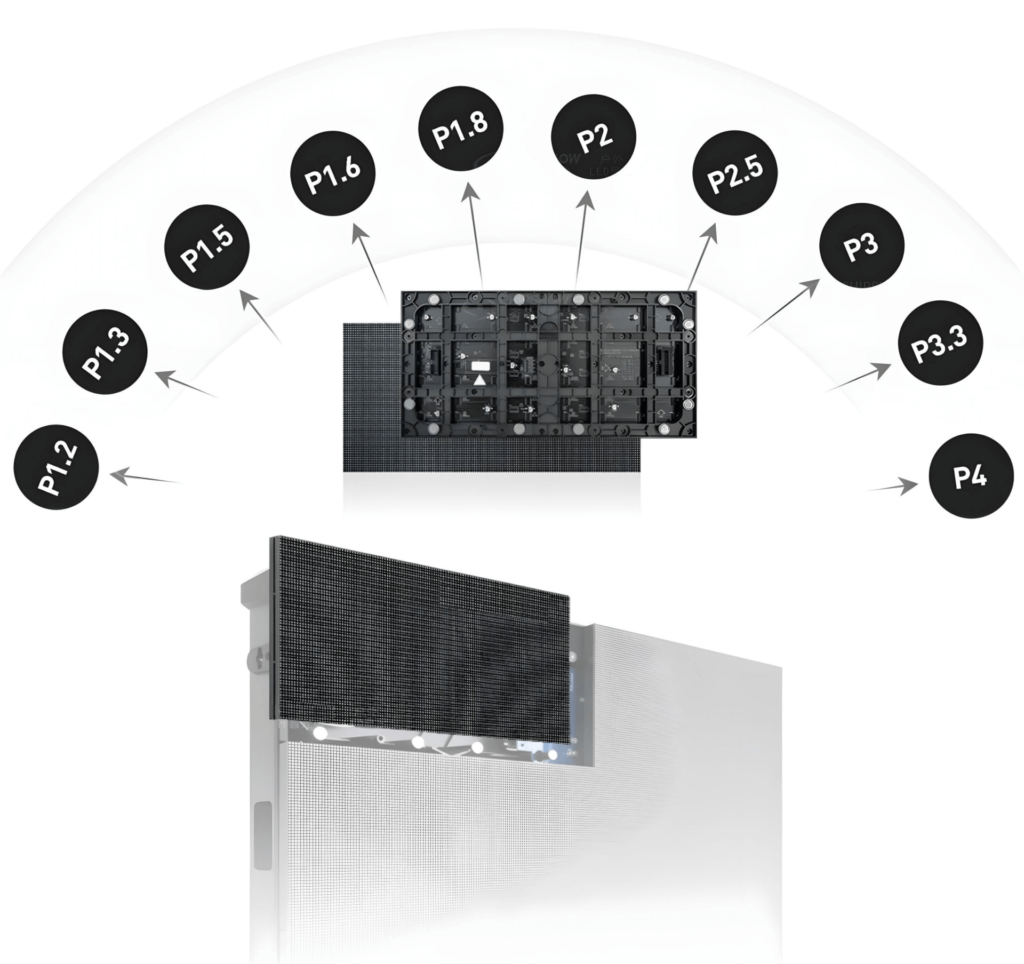

Great Compatibility

Upgrade images to high quality with a lower cost

The cabinet can be quickly replaced with the module of the pixel pitch from P1.25 to P4

Compatible with all the modules from P1.25 to P4

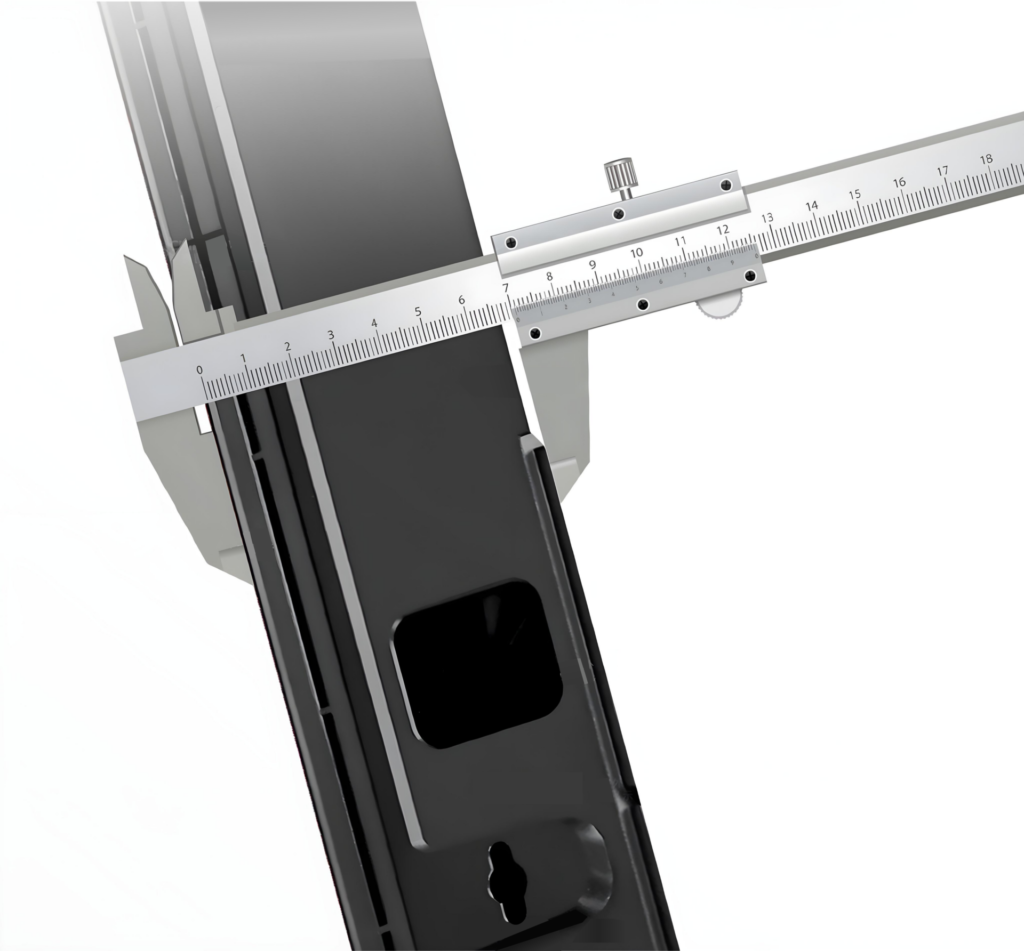

Ultra-light & Thin

Die-cast aluminum cabinet

Light-weight, thin, and stunning appearance

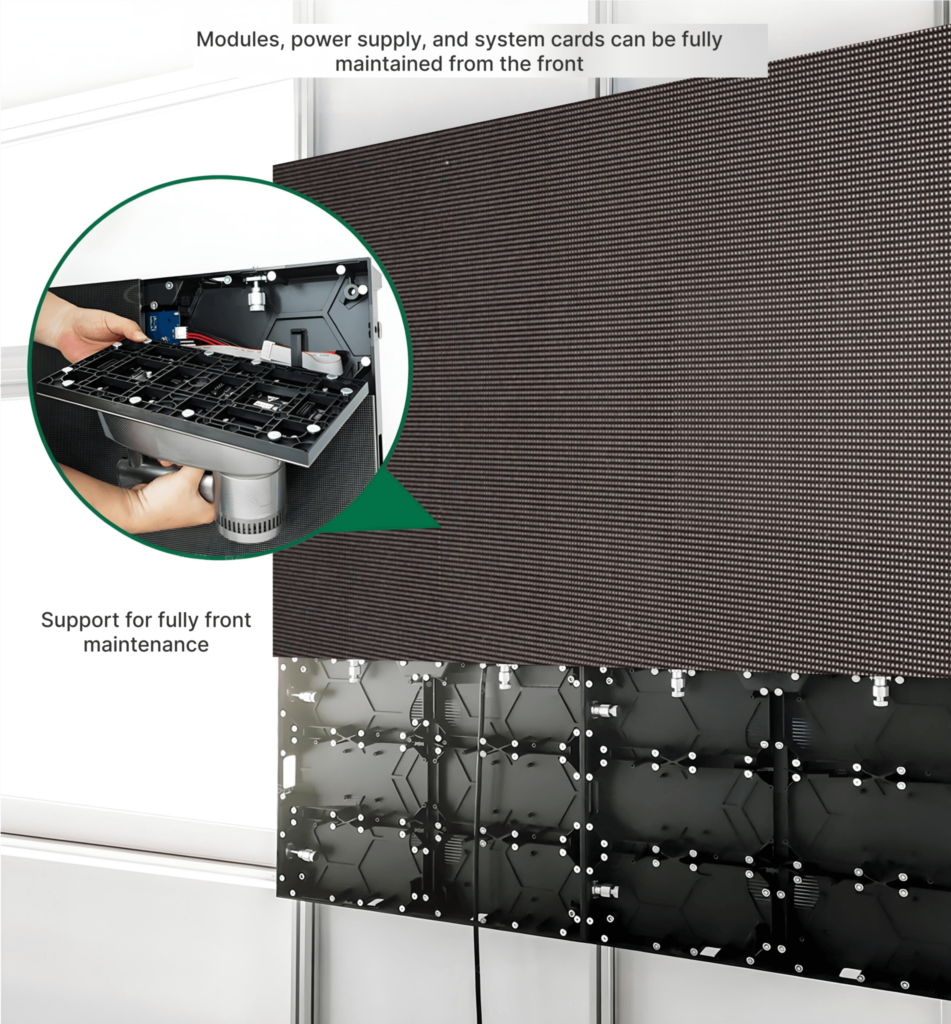

Wall-mounted Installation

Ideal for high-end commercial display applications

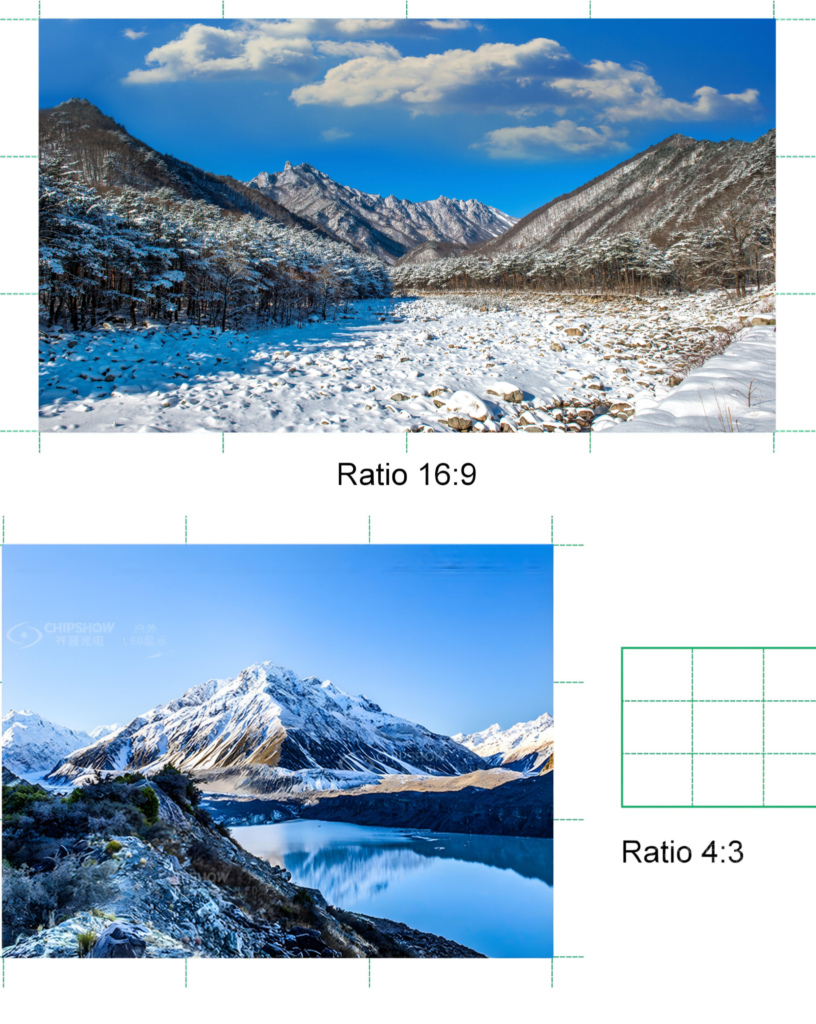

Adaptation Ratio

Easy to assemble to 4:3, 16:9 large screens

Renders the same video source ratio as LCDs, and can directly replace the original LCDs

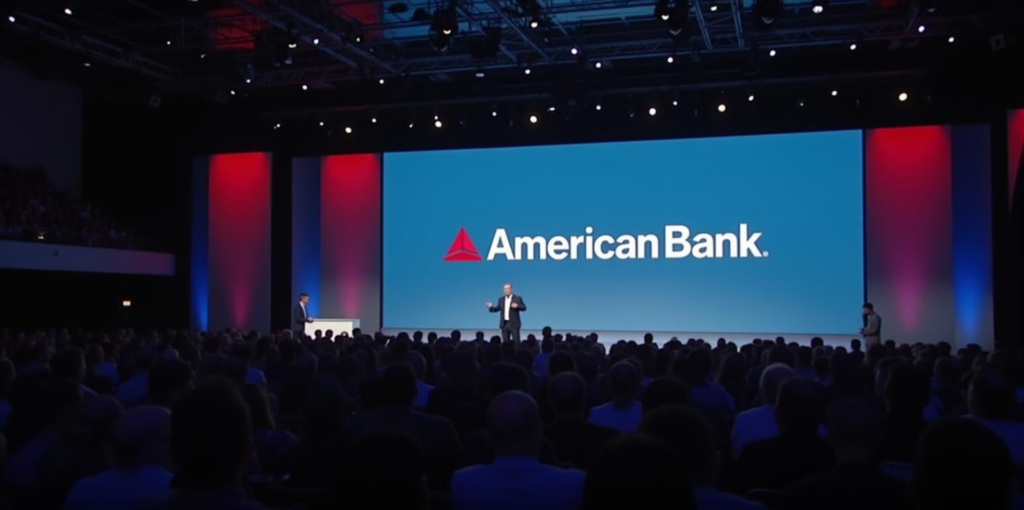

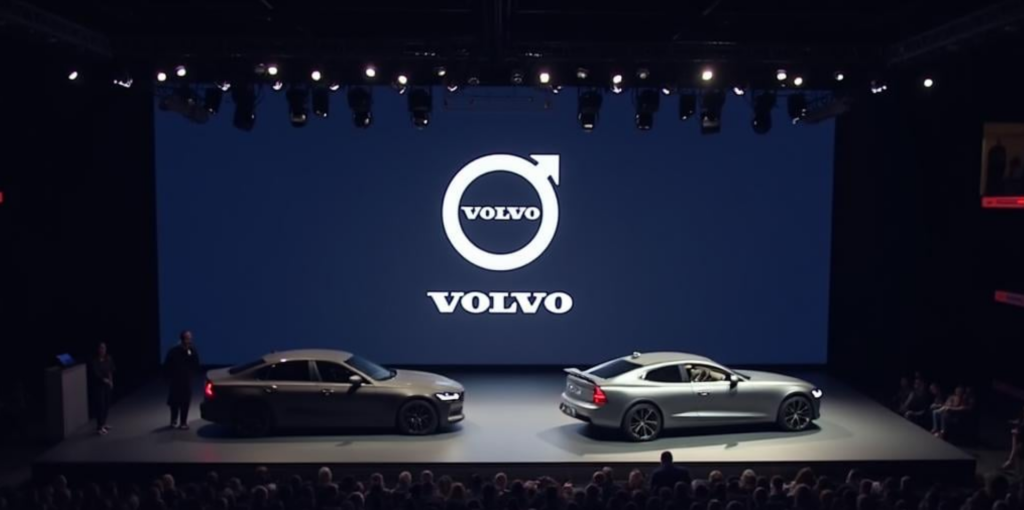

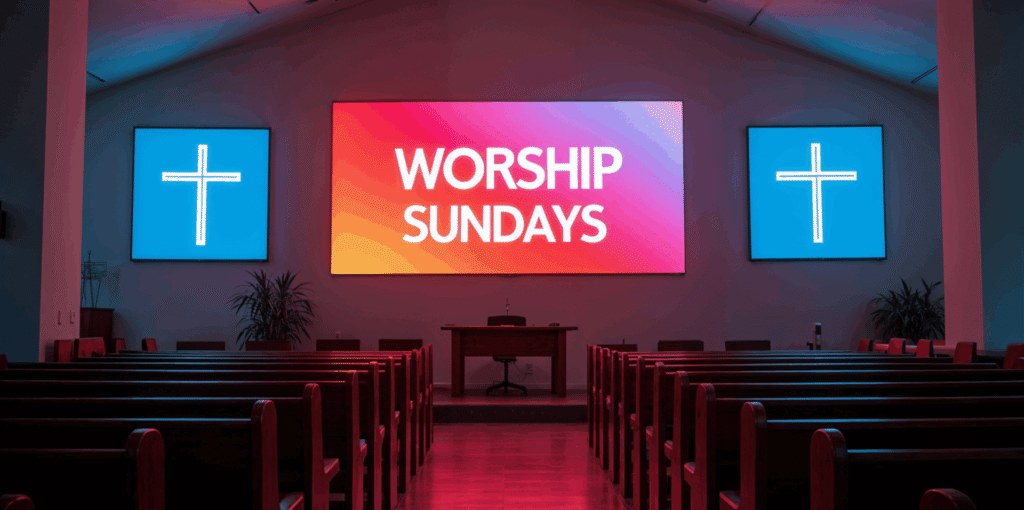

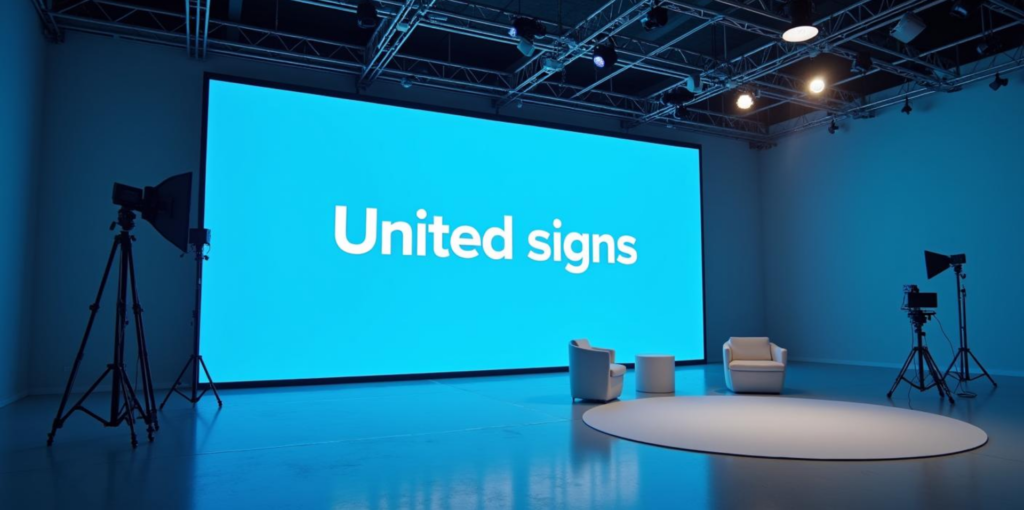

Applications

Renders the same video source ratio as LCDs, and can directly replace the original LCDs
