Gmars Series
Virtual Production & Rental LED Wall
What Makes the Gmars Series Different

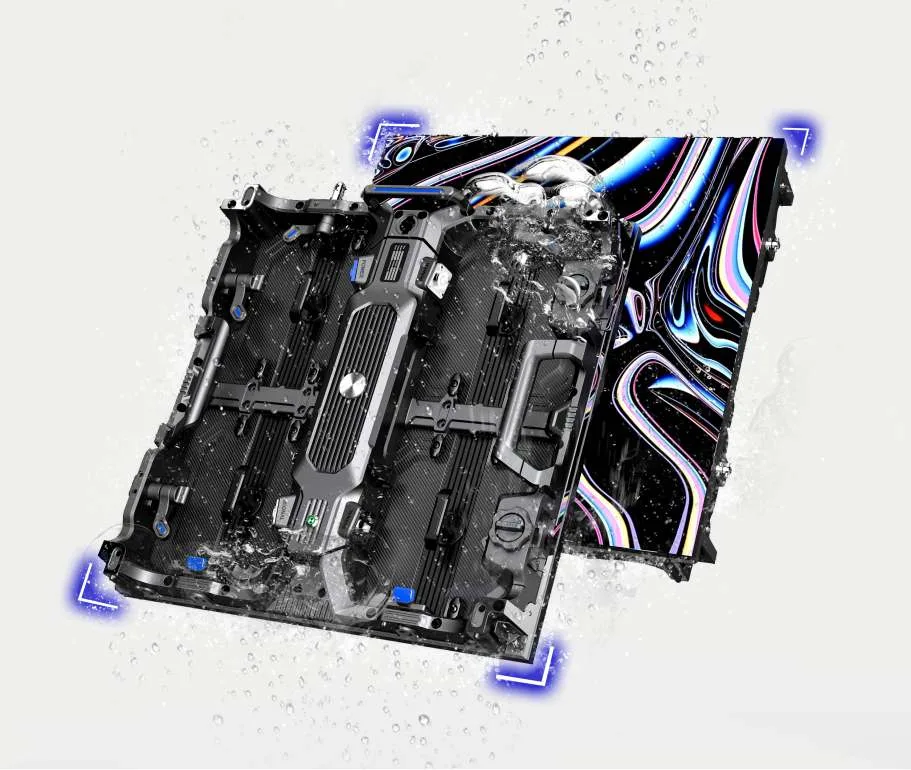

Built for the Demands of Live Production
This series is built around the pressures touring productions, concerts, and broadcast environments put on a display day after day. Panels lock together in seconds, integrated corner protection holds up through rough load-ins and tear-downs, and a 7680Hz refresh rate cuts down on the moire and flicker that show up when the panel is filmed on camera.

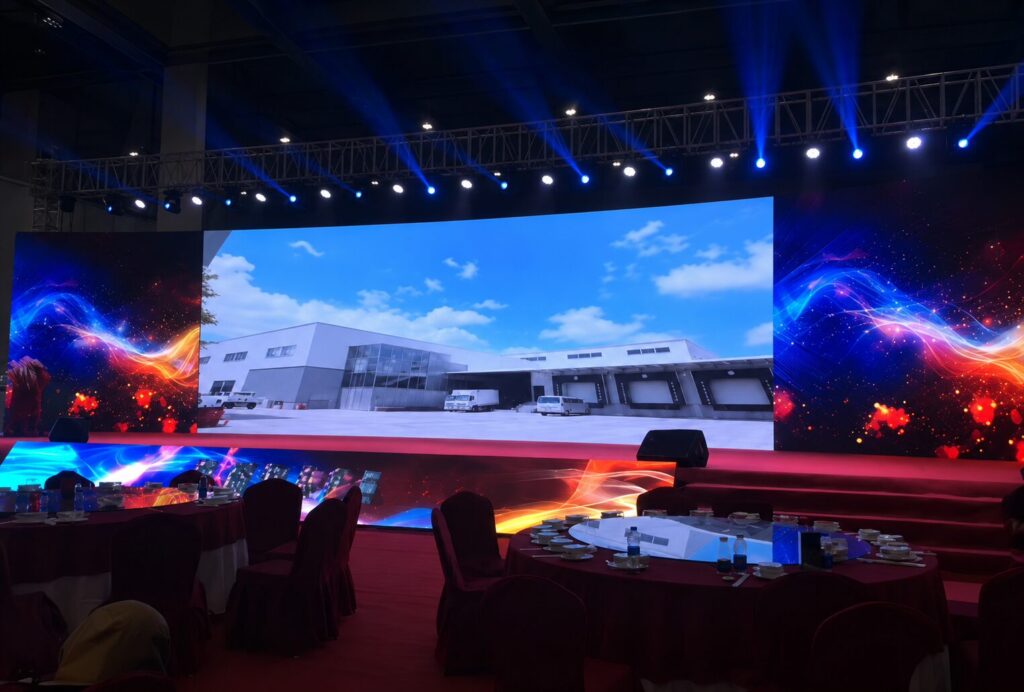

GOB Protection on Fine-Pitch Models
The P1.56, P1.953, and P1.953 XR models use GOB (Glue-on-Board) surface technology, a clear protective coating bonded directly over the LED surface. The result is a touchable, scratch-resistant panel that holds up to the handling, storage, and repeated setup that rental fleets put it through.

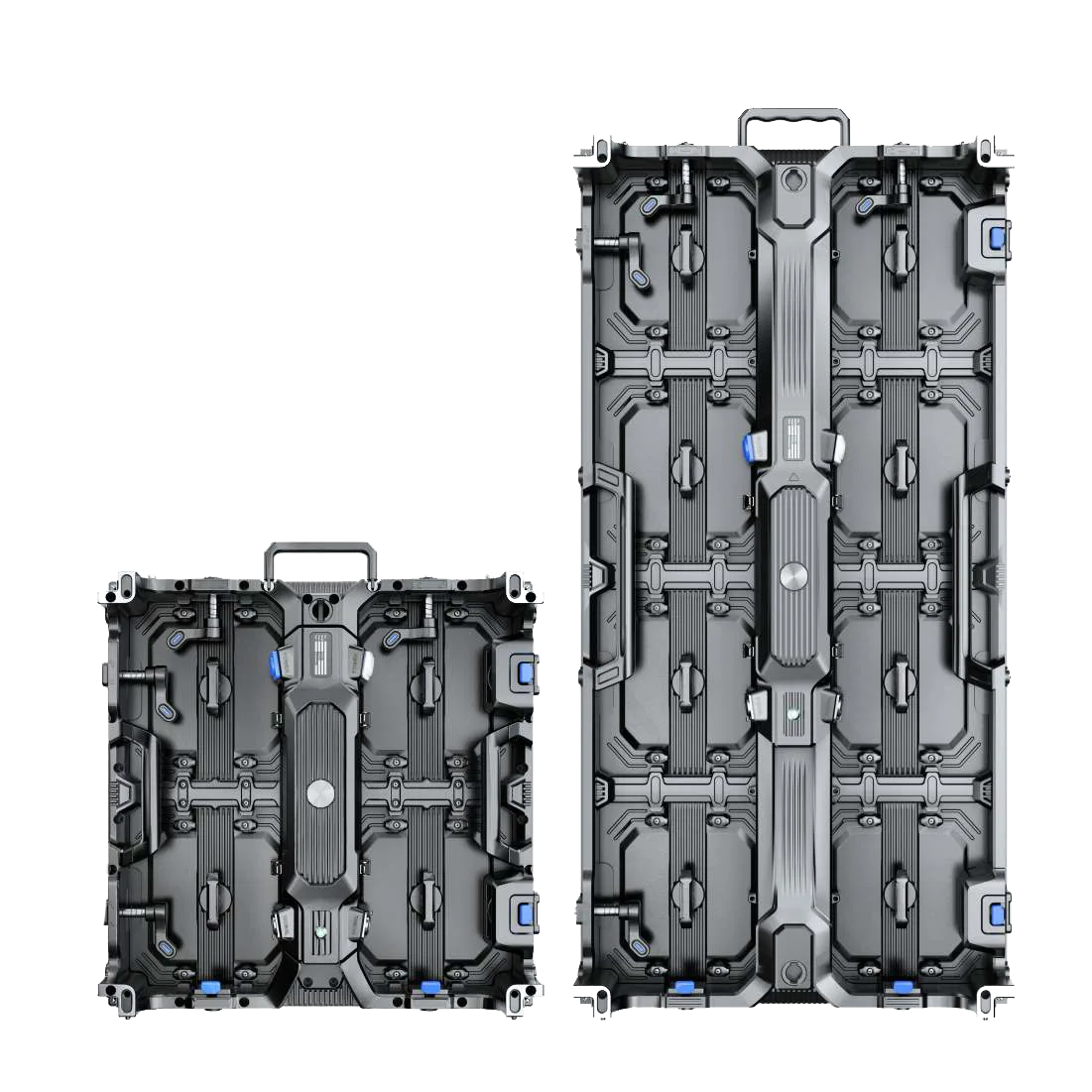

Two Panel Sizes, One System
Panels come in 500 x 500mm and 500 x 1000mm formats, and the two sizes can be mixed within the same installation. All four module positions on a panel are interchangeable, with no left or right orientation to track, so replacements stay simple and field inventory stays lean.
Curved and Flat Configurations
Each panel curves from -5 degrees to +5 degrees, enough to build smooth concave and convex arcs for wraparound stage designs. Once a curve angle is set, the locking mechanism holds it in place, so long runs stay consistent without constant manual readjustment.
Front and Rear Service Access
Modules pull cleanly from the front for quick swaps, and rear access opens up power and signal components when the installation allows for it. The power box itself is latch-attached, so it comes off without tools, cutting setup time and letting technicians handle repairs faster in the field.
Camera-Ready Visual Performance
A 7680Hz refresh rate keeps panels reading clean on any digital camera or broadcast rig, without rolling bands or flicker artifacts to fix in post. 16-bit greyscale and brightness up to 1200 nits (1000 nits on the P1.56) hold accurate color across a range of lighting conditions.
Every Display Includes Lifetime Benefits
Parts Warranty
Confidence in quality of construction & availability of replacement/repair parts
Lifetime Support
Contact our technical support team with any and all technical issues
Lifetime Cloud Access
Enjoy accessing your display(s) from anywhere and anytime
Lifetime Software
Viplex handy software included with all sign packages and displays
Easy Assembly
Simple plug and play modular panel for easy accessibility and troubleshooting
High Definition
Highest refresh rates in the industry with crystal clear images, text, and video content
Extreme Brightness
Vivid, high-impact visuals that stay crisp and clear
Where the Gmars Series Shines
Touring productions, concerts, trade shows, corporate events, large-scale staging, broadcast studios, XR virtual production
Our Process
We have a simple, streamlined process once you have decided to purchase one of our Digital Displays.
Consultation & Survey
We review your site, define your sign program, and map every location, size, and mounting spec before design begins.
Design & Permitting
Certified shop drawings are produced and submitted for permit approval u2014 signed off by your team before production starts.
In-House Fabrication
Every sign is built in our own facility with in-house QC. No outsourcing means tighter quality and reliable lead times.
Installation & Sign-Off
Certified crews install every sign. We conduct a full walkthrough and provide documentation before handover.
Gmars Series Specifications
All specifications subject to change.
| Parameters | Indoor | Outdoor | |||||||
|---|---|---|---|---|---|---|---|---|---|
| P1.56 | P1.953 | P1.953 (XR) | P2.6 | P2.6 (XR) | P2.976 | P2.6 | P2.976 | P3.91 | |
| Pixel Pitch | 1.56mm | 1.953mm | 1.953mm | 2.604mm | 2.604mm | 2.976mm | 2.604mm | 2.976mm | 3.91mm |
| Assembly Technology | GOB | GOB | GOB | / | / | / | / | / | / |
| LED Type | SMD1212 | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD2020 | SMD1415 | SMD1415 | SMD1921 |
| Brightness | 1000 nits | 1200 nits | 1200 nits | 1200 nits | 1200 nits | 1200 nits | 5000 nits | 5500 nits | 5500 nits |
| Scan Rate | 1/20 | 1/16 | 1/8 | 1/16 | 1/8 | 1/21 | 1/24 | 1/21 | 1/16 |
| Refresh Rate | 7680Hz | 7680Hz | 7680Hz | 7680Hz | 7680Hz | 7680Hz | 3840Hz | 3840Hz | 3840Hz |
| Panel Size | W19.7in x H19.7in (500x500mm) / W19.7in x H39.37in (500x1000mm available) | W19.7in x H19.7in (500x500mm) / W19.7in x H39.37in (500x1000mm available) | W19.7in x H19.7in (500x500mm) / W19.7in x H39.37in (500x1000mm available) | W19.7in x H19.7in (500x500mm) / W19.7in x H39.37in (500x1000mm available) | W19.7in x H19.7in (500x500mm) / W19.7in x H39.37in (500x1000mm available) | W19.7in x H19.7in (500x500mm) / W19.7in x H39.37in (500x1000mm available) | W19.7in x H19.7in (500x500mm) / W19.7in x H39.37in (500x1000mm available) | W19.7in x H19.7in (500x500mm) / W19.7in x H39.37in (500x1000mm available) | W19.7in x H19.7in (500x500mm) / W19.7in x H39.37in (500x1000mm available) |
| Panel Resolution | 320x320 | 256x256 | 256x256 | 192x192 | 192x192 | 168x168 | 192x192 | 168x168 | 128x128 |
| Module Size | H9.85in x W9.85in | H9.85in x W9.85in | H9.85in x W9.85in | H9.85in x W9.85in | H9.85in x W9.85in | H9.85in x W9.85in | H9.85in x W9.85in | H9.85in x W9.85in | H9.85in x W9.85in |
| Panel Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Panel Weight | 17.6 lbs | 17.6 lbs | 17.6 lbs | 17.6 lbs | 17.6 lbs | 17.6 lbs | 17.6 lbs | 17.6 lbs | 17.6 lbs |
| Protection Level | IP34 | IP34 | IP34 | IP34 | IP34 | IP34 | IP65 | IP65 | IP65 |
| Maintenance | 100% Front & Rear | 100% Front & Rear | 100% Front & Rear | 100% Front & Rear | 100% Front & Rear | 100% Front & Rear | Rear Service | Rear Service | Rear Service |
| Max Power Consumption | 143W | 143W | 158W | 143W | 158W | 143W | 183W | 183W | 183W |
| Avg Power Consumption | 71.5W | 71.5W | 79W | 71.5W | 79W | 71.5W | 92W | 92W | 92W |
| Grey Scale | 16-bit | 16-bit | 16-bit | 16-bit | 16-bit | 16-bit | 16-bit | 16-bit | 16-bit |
| Viewing Angle | H160, V160 | H160, V160 | H160, V160 | H160, V160 | H160, V160 | H160, V140 | H160, V160 | H160, V160 | H160, V140 |
| Curve Range | -5 to +5 deg | -5 to +5 deg | -5 to +5 deg | -5 to +5 deg | -5 to +5 deg | -5 to +5 deg | -5 to +5 deg | -5 to +5 deg | -5 to +5 deg |
| Input Voltage | Wide Range 100-240VAC | Wide Range 100-240VAC | Wide Range 100-240VAC | Wide Range 100-240VAC | Wide Range 100-240VAC | Wide Range 100-240VAC | Wide Range 100-240VAC | Wide Range 100-240VAC | Wide Range 100-240VAC |
| Working Temperature | -22F to +149F | -22F to +149F | -22F to +149F | -22F to +149F | -22F to +149F | -22F to +149F | -22F to +158F | -22F to +158F | -22F to +158F |
| Working Humidity | 10%-90% RH | 10%-90% RH | 10%-90% RH | 10%-90% RH | 10%-90% RH | 10%-90% RH | 10%-90% RH | 10%-90% RH | 10%-90% RH |
| Color Temperature | 6500-9500K | 6500-9500K | 6500-9500K | 6500-9500K | 6500-9500K | 6500-9500K | 6500-9500K | 6500-9500K | 6500-9500K |
| Certifications | UL/EMC/CE/ROHS/CCC/FCC/ISO | UL/EMC/CE/ROHS/CCC/FCC/ISO | UL/EMC/CE/ROHS/CCC/FCC/ISO | UL/EMC/CE/ROHS/CCC/FCC/ISO | UL/EMC/CE/ROHS/CCC/FCC/ISO | UL/EMC/CE/ROHS/CCC/FCC/ISO | UL/EMC/CE/ROHS/CCC/FCC/ISO | UL/EMC/CE/ROHS/CCC/FCC/ISO | UL/EMC/CE/ROHS/CCC/FCC/ISO |
