US-March II
US - March II Large Format Outdoor LED Display
What Makes the US-March II Different
US-March II: Built for the Outdoor LED Market
US-March II is built for the demands of large-format outdoor LED displays worldwide. It holds up vivid, crystal-clear visuals even in direct sunlight, and pairs that with a quick-assembly structure, energy-saving technology, built-in redundancy, and cloud-based monitoring to bring down the total cost of ownership over the life of the display. It delivers 10,000+ nits of brightness at just 100-200 W/mu00b2 average power consumption. From roadside digital billboards to building-mounted displays and stadium screens, March II fits any outdoor application.
Fourteen Features. One Goal: ROI & Peace of Mind

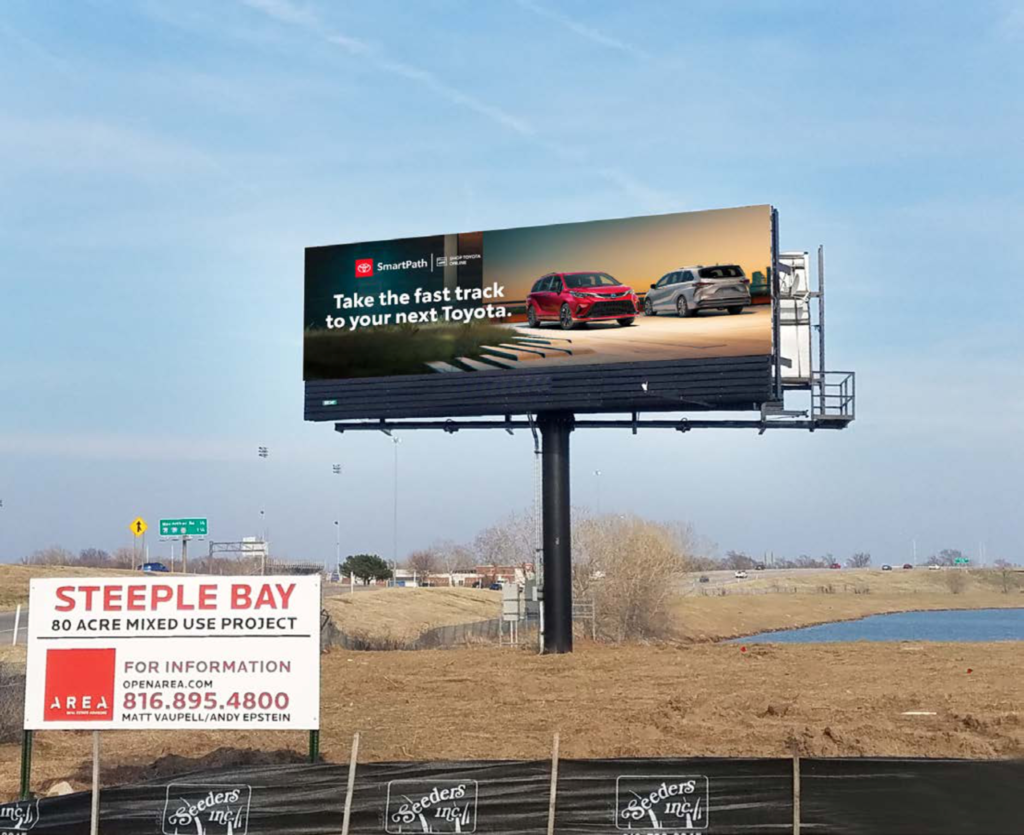

Every part of March II ties back to the same outcome. 10,000 nits+ brightness, a 3,840Hz+ refresh rate, and a 26,000+ contrast ratio drive the visual performance. Sunlight-blocking louvers, gold-wire LEDs, sealed PSUs, and a smart cooling fan keep it running strong outdoors. Redundancy, cloud monitoring, common-cathode driving, and calibration memory protect uptime and color accuracy, while energy savings of up to 56 percent keep it efficient to run. Flexible sizes and shapes, plus front and rear access, round it out, giving you a display built for ROI and peace of mind.
Visual Excellence
US-March II combines ultra-bright LEDs, high-refresh driver ICs, and a precision-engineered mask with extended louvers and a matte black anti-glare finish. Together they hold peak performance across three essentials: 10,000+ nits of brightness, a 3,840Hz+ refresh rate, and a 26,000:1+ contrast ratio. The extended louvers shield the LEDs from direct sunlight, so contrast holds up and the picture stays clear even in bright outdoor conditions.
0 Compromise Experience
Every detail on the March II screen stays vibrant, sharp, and fluid, even under direct sunlight. Whether viewed up close or from a distance, your content stays crystal-clear and visually compelling at all times.

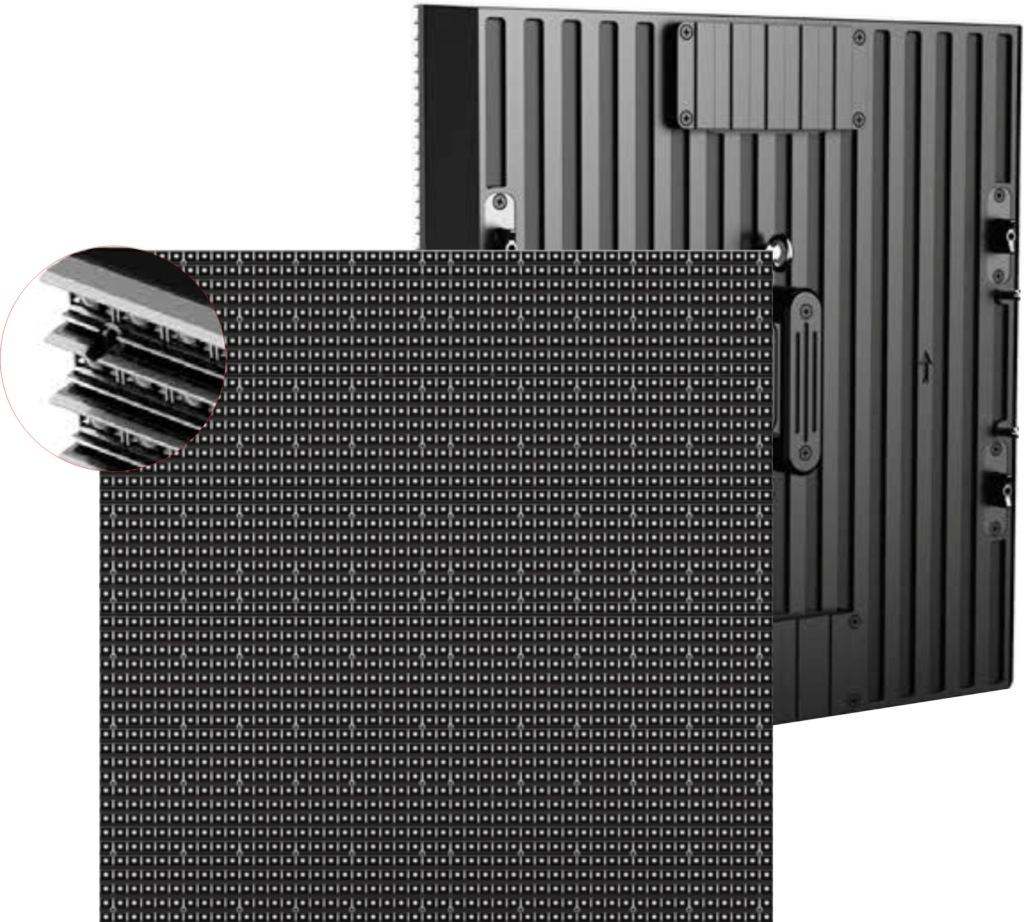

High-Efficiency LEDs
March II runs on large-chip, gold-wire LEDs paired with a lens-enhanced design. The gold wire carries current more efficiently and resists corrosion better than standard bonding wire, so brightness stays consistent over the life of the display. The lens on top pulls more light out of every LED, which means the display hits maximum brightness while drawing minimal power, a big part of how March II keeps energy costs down without giving up visual performance.

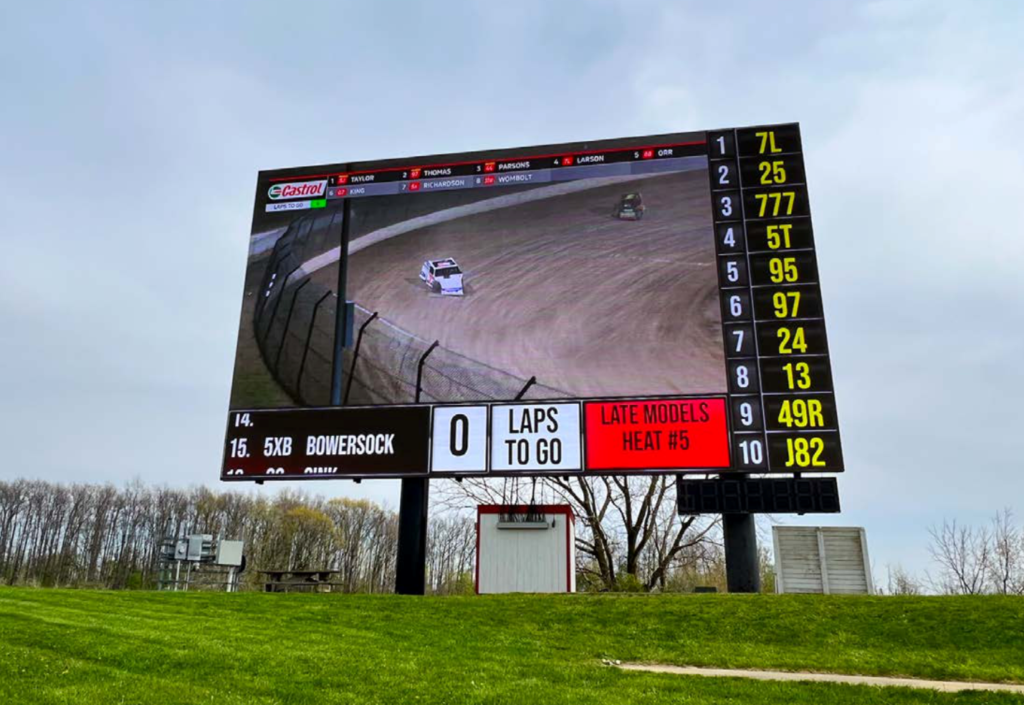

Common-Cathode Driving
Red, green, and blue LEDs each run on their own independent voltage supply, sized to what they actually need instead of one shared voltage across all three. That precision cuts energy loss by 20 to 40 percent, one more piece of how March II keeps power consumption down while holding onto full brightness and color accuracy.
High-Efficiency Power Supplies
March II's power supplies run at over 90 percent conversion efficiency with active PFC (Power Factor u2265 0.98), so less energy is lost as heat and more of it goes toward actually driving the display. Combined with common-cathode driving and gold-wire LEDs, this is a big part of why March II holds its 56 percent energy savings over a regular SMD display without giving up any brightness or visibility.
Automatic Brightness Adjustment
Built-in light sensors read the surrounding conditions and adjust screen brightness on their own, in real time. The display stays clearly visible whether it's high noon or overcast, without burning extra power when full brightness isn't needed.
Cloud-Based Energy Management
Set on/off schedules and brightness levels from the cloud, then adjust them in real time whenever conditions change. It's intelligent, efficient energy use without needing anyone on site to manage it.
Energy-Saving by Numbers
Based on the U.S. 2024 average commercial electricity rate of $0.16/kWh, on a 14' x 48' double-sided billboard running at 10,000 nits, 24/7: March II achieves up to 56% energy savings without compromising brightness or visibility.rn
Value Beyond the Numbers
Lower heat means more than energy savings. It brings enhanced product reliability, a longer lifespan, and fewer failures, which adds up to reduced maintenance needs and higher customer satisfaction. For your business, that means smoother operations, lower total cost of ownership, and long-term peace of mind, rain or shine.
Engineered for Efficiency and Precision
March II uses a clean, practical, and thoughtfully engineered structure that makes installation intuitive and hassle-free, built to align perfectly with supporting frameworks. Cabinets lock into a consistent grid, so getting a large-format display up and square takes far less time on site.

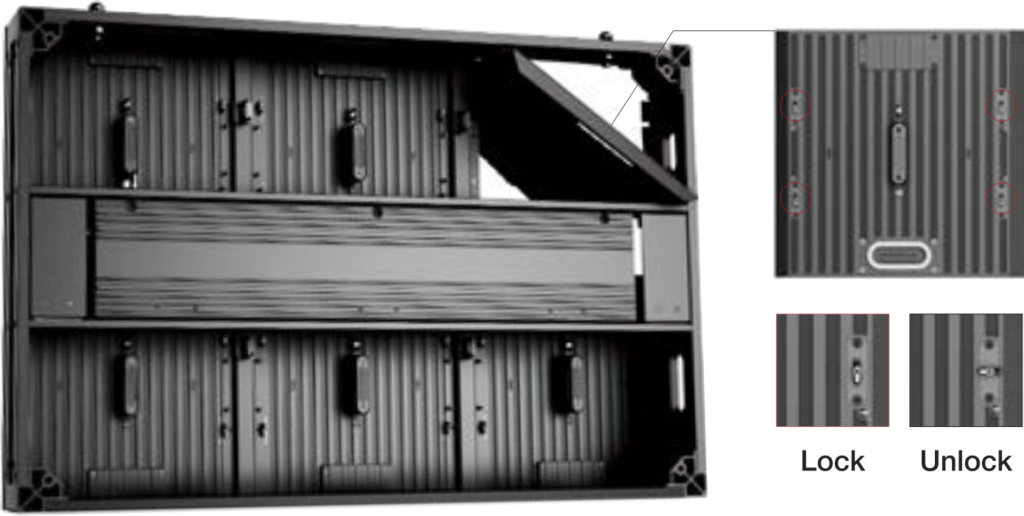

Lightweight & Robust Cabinet Frame
The cabinet frame is built for structural stability without adding unnecessary weight, so it's easy to handle on install day and holds up reliably once it's mounted.
Quick-Connect, Weather-Proof Power & Signal Connectors
Power and signal connectors are quick-connect and weatherproof, built for a fast, secure setup in any environment, from a dry indoor shop to a wet outdoor job site.
Simple and Clever Cable Cover Design
A cable cover gives every connection a clean finish while shielding it from UV and weather exposure, keeping cables protected and the display looking sharp for years.

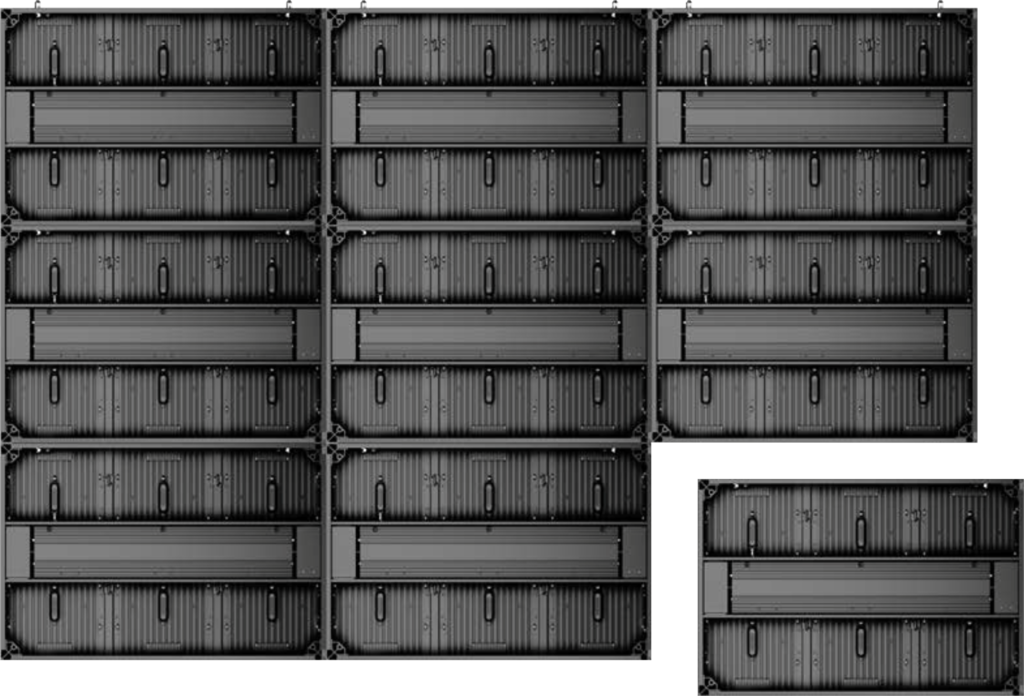

Front & Rear Access
March II is built for effortless maintenance from either side of the display. Modules pop off from the front with a simple lock and release, and the rear opens up to give full access to power units and signal components, with a clear lock/unlock indicator built right into the cabinet. Whether it's a module, a power unit, or any other part, everything can be reached and replaced on site, so service stays fast and display downtime stays minimal.
Engineered to Last
With nearly 20 years of expertise in high-end outdoor LED display technology, March II was engineered with reliability as a core priority. Every detail, from design to material selection to production, meets the highest standards. It's been proven through rigorous lab simulations and extended real-world testing alike.
Reliability by Design
With nearly 20 years of expertise in high-end outdoor LED display technology, March II was engineered with reliability as a core priority. Every detail, from design to material selection to production, meets the highest standards, proven through rigorous lab simulations and extended real-world testing alike. The power supply is fully enclosed and sealed against condensation, dust, and environmental contaminants, then bonded to the aluminum rear panel with high-conductivity thermal paste for better heat transfer. On top of that, March II is the only extruded aluminum cabinet in its class with a built-in, software-controlled cooling fan that activates or shuts off based on ambient temperature, adapting to whatever environment it's installed in.
Redundancy for Peace of Mind
March II builds in targeted redundancy that proactively prevents visible failures and keeps uptime high, so performance stays smooth even when a component runs into trouble. All module power and signal pins are redundantly configured, so a pin contact issue won't affect display performance. Dual power supplies also run in parallel: if one fails, the other instantly takes over the full load, keeping the display running without disruption.
Always On Watch: Monitoring & Diagnosis
Every March II unit comes with a monitoring and diagnosis system that keeps you fully informed of your display's real-time status. If a malfunction happens, automatic email alerts are sent the moment a fault is detected, and detailed diagnostics are available through a cloud platform for troubleshooting and service planning. Combined with the display's redundancy features, many issues get resolved before any visible error ever shows up on screen, so the display stays uninterrupted. You can also upload and send configuration files straight from the cloud, no need to connect a computer to the player on-site.
Calibration Memory Built In
Each module carries a smart chip that stores its original calibration data. When a module gets swapped out or replaced, brightness and color stay consistent with the rest of the display, no visible seam and no mismatch.
Maximize ROI, Minimize TCO
When designing March II, one guiding question stayed with us: how do we maximize your long-term return? Stunning visual performance captivates your target audience. Ultra-low power consumption lowers long-term electricity bills. Quick and hassle-free installation saves on labor and time. Built for harsh outdoor conditions, it reduces repair needs. An effective redundancy system means zero display interruption, even when issues arise. And smart monitoring and diagnosis let you resolve issues swiftly, even remotely. If these are your priorities in a large-format outdoor LED display, March II is your smartest investment.
Versatility for Any Large-Format Display
March II comes in four fundamental cabinet sizes, covering 640 x 960mm, 640 x 1280mm, 960 x 960mm, and 960 x 1280mm, designed to meet the full range of dimensional needs for large-format flat outdoor LED displays.

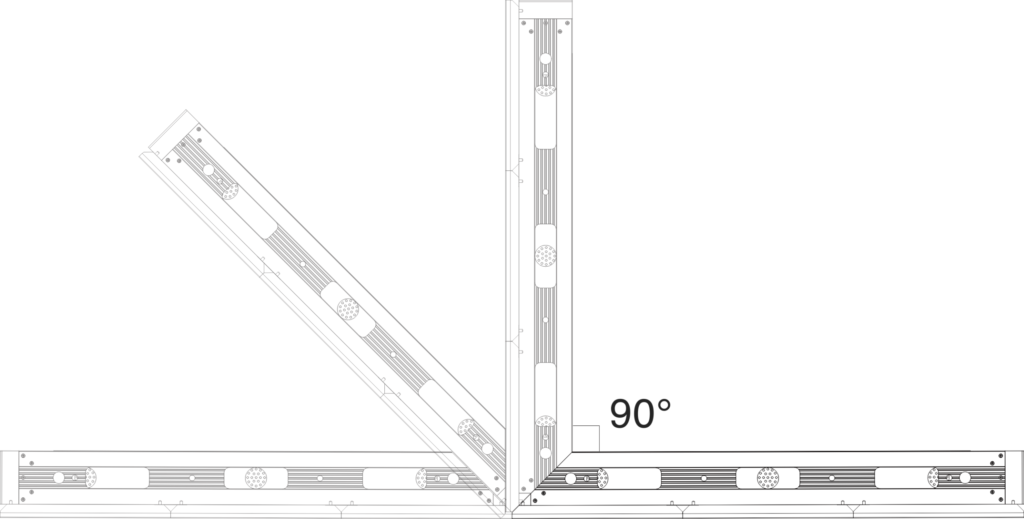

Precision-Cut for Creative Freedom
With 45-degree beveled module edges, March II supports seamless corner splicing from 90u00b0 to 180u00b0, as well as curved surface configurations for large-format outdoor builds. It's also fully compatible with Genesis II's bar-shaped modules, opening up more possibilities for curved corners and other creative design applications.
Unlimited Applications
From DOOH billboards to stadiums and arenas, from hotels, stores, and malls to traffic systems and transportation hubs, March II is engineered to meet every large-format outdoor LED display need. Whether it's public squares, iconic landmarks, or even naked-eye 3D and other creative formats, March II delivers performance without limits.
FCC INTERFERENCE STATEMENT
Federal Communications Commission Interference Statement
FCC Part 15 Compliance Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
Class B Digital Device Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
Every Display Includes Lifetime Benefits
Parts Warranty
Repairs don't become a sourcing issue, what's needed is there and ready to go.
Lifetime Support
A call or message gets you to our support team whenever a technical problem comes up. That doesn't change based on how long you've had the display.
Lifetime Cloud Access
Check on your display remotely any time. No subscription required, no restrictions on when or where you log in from.
Lifetime Software
Viplex is built into the package and stays active for the full life of the display. There's nothing to renew and nothing extra to buy.
Easy Assembly
A plug-and-play modular setup means your team can manage and make changes without bringing in a specialist.
High Definition
Refresh rates near the top of the industry mean the image quality is there. Sharp, clean, and consistent across content types.
Extreme Brightness
10,000+ nits keeps the display legible even in full sun. Outdoor conditions during the day aren't a concern.
Training
We go through daily use and maintenance with your team so they're set up to run the display confidently from the start.
Multiple Communication Options
Hardwired, Wi-Fi modem, or cellular modem: pick what works for where you are. All covered under the contract, for life.
60 FPS
Every video plays at 60 frames per second. The motion is fluid, and the playback is consistent.
Trillions of Colors
24-bit color depth means the display shows your content as it was meant to be seen: accurate tones, true to the source.
Unlimited Software Seats/Licenses
Creative Library, Custom Content, and Corporate Creative Portals are included for your entire team, with no per-seat fees and no usage limits.
Our Process
We have a simple, streamlined process once you have decided to purchase one of our Digital Displays.
Consultation & Survey
We review your site, define your sign program, and map every location, size, and mounting spec before design begins.
Design & Permitting
Certified shop drawings are produced and submitted for permit approval u2014 signed off by your team before production starts.
In-House Fabrication
Every sign is built in our own facility with in-house QC. No outsourcing means tighter quality and reliable lead times.
Installation & Sign-Off
Certified crews install every sign. We conduct a full walkthrough and provide documentation before handover.
US-March II Specifications
All specifications subject to change.
| Parameters | 4mm | 6.67mm | 10mm | 10mm |
|---|---|---|---|---|
| Pixel Pitch | 4 mm | 6.67 mm | 10 mm | 10 mm |
| LED Package Type | SMD + Lens | SMD + Lens | SMD + Lens | Oval Molding |
| Pixel Density (dots/mu00b2) | 62,500 | 22,500 | 10,000 | 10,000 |
| Module Dimensions | 12.6u201d x 12.6u201d (320mm x 320mm) | 12.6u201d x 12.6u201d (320mm x 320mm) | 12.6u201d x 12.6u201d (320mm x 320mm) | 12.6u201d x 12.6u201d (320mm x 320mm) |
| Module Matrix | 80x80 | 48x48 | 32x32 | 32x32 |
| Module Weight | 3.3LB (1.5KG) | 3.3LB (1.5KG) | 3.3LB (1.5KG) | 3.3LB (1.5KG) |
| Driving Method | 1/10 constant current | 1/6 constant current | 1/2 constant current | 1/2 constant current |
| Refresh Rate | u22653,840 Hz | u22653,840 Hz | u22653,840 Hz | u22653,840 Hz |
| Video Frame Rate | 60 frames/second | 60 frames/second | 60 frames/second | 60 frames/second |
| Grayscale | 65,536 (281 trillion colors) | 65,536 (281 trillion colors) | 65,536 (281 trillion colors) | 65,536 (281 trillion colors) |
| Color Depth | 16 bit | 16 bit | 16 bit | 16 bit |
| Contrast Ratio | 26,000 : 1 | 26,000 : 1 | 26,000 : 1 | 26,000 : 1 |
| Brightness | u226510,000 NITS | u226510,000 NITS | u226510,000 NITS | u226510,000 NITS |
| Brightness Control | 256 levels | 256 levels | 256 levels | 256 levels |
| Ideal Viewing Range | 16\u2019 or greater | 18\u2019 or greater | 28\u2019 or greater | 28\u2019 or greater |
| Ideal Viewing Angle | 120°(H) / 100°(V) | 120°(H) / 100°(V) | 120°(H) / 100°(V) | 120°(H) / 100°(V) |
| Max. Power Consumption | 54W/ft² (580W/m²) | 54W/ft² (580W/m²) | 54W/ft² (580W/m²) | 35W/ft² (380W/m²) |
| Avg. Power Consumption | 18W/ft² (195W/m²) | 18W/ft² (195W/m²) | 18W/ft² (195W/m²) 12W/ft² (127W/m²) | |
| Input Voltage | 90 - 264VAC | 90 - 264VAC | 90 - 264VAC | 90 - 264VAC |
| Ingress Protection | IP65 | IP65 | IP65 | IP65 |
| Operating Temperature | -40°F - +140°F (-40 u2103 - +60 u2103) | -40°F - +140°F (-40 u2103 - +60 u2103) | -40°F - +140°F (-40 u2103 - +60 u2103) | -40°F - +140°F (-40 u2103 - +60 u2103) |
| MTBF | >5,000 hours | >5,000 hours | >5,000 hours | >5,000 hours |
| LED Life - Span | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours |
| Cabinet Material | Aluminum Extrusion | Aluminum Extrusion | Aluminum Extrusion | Aluminum Extrusion |
| Cabinet Weight | 7.2LB/ft² (35KG/m²) | 7.2LB/ft² (35KG/m²) | 7.2LB/ft² (35KG/m²) | 7.2LB/ft² (35KG/m²) |
| Cabinet Size | 640x960x125mm; 640x1280x125mm; 960x960x125mm; 960x1280x125mm | 640x960x125mm; 640x1280x125mm; 960x960x125mm; 960x1280x125mm | 640x960x125mm; 640x1280x125mm; 960x960x125mm; 960x1280x125mm | 640x960x125mm; 640x1280x125mm; 960x960x125mm; 960x1280x125mm |
