What Makes the Gmesh Series Different
Transparency as a Structural Advantage

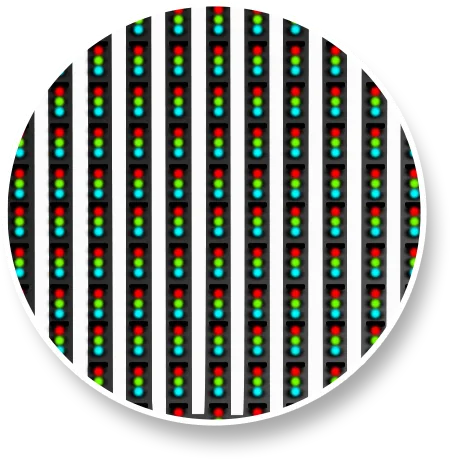

Up to 50% light transmittance isn't just an aesthetic feature, it's a structural one. Less material means lower wind load, better heat dissipation, and lighter panels overall, with weights ranging from about 20 to 23 lbs depending on configuration. Installations that would require engineered structural reinforcement for a solid panel often mount directly to existing building infrastructure with this option.
SMD and DIP Configurations
This series is available in both SMD and DIP LED configurations, giving projects a choice based on brightness needs and installation environment. SMD variants are generally suited to installations where wider viewing angles and softer brightness fit the space, atriums, covered retail areas, and environments with more controlled ambient light. DIP variants are built for direct-sun environments where maximum legibility matters most regardless of conditions. Exact brightness specs vary by configuration, so it's worth confirming the specific pitch and LED type against the spec sheet for a given project's lighting conditions.

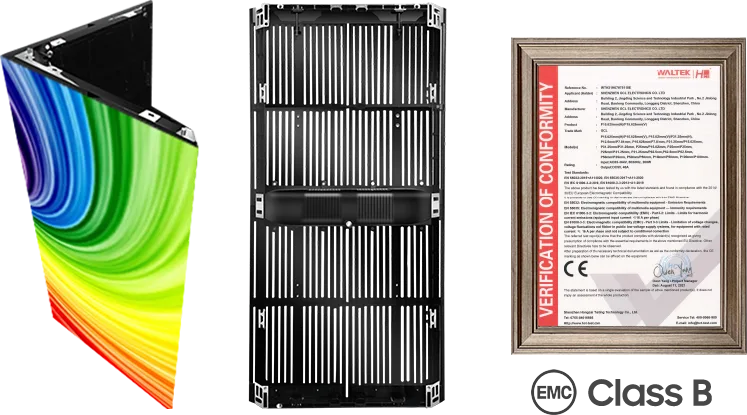

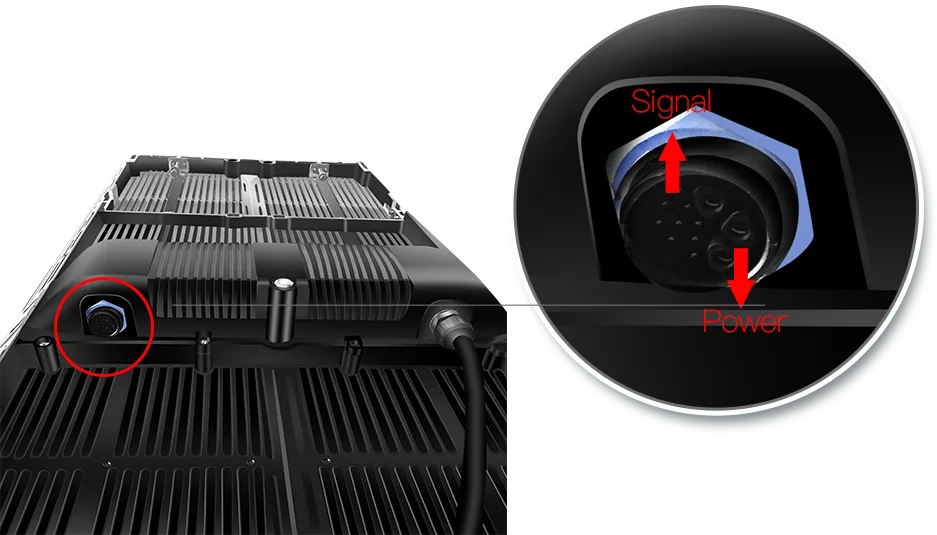

Integrated Cabling for Fast Installs

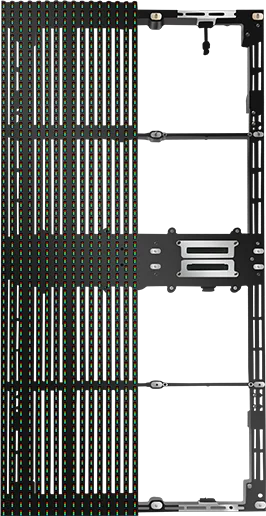

Integrated power and signal cables cut connection time by 50% compared to conventional external cable management. Servicing a module means loosening 8 screws to access it directly, and the same approach opens the front cover for the power supply, receiving card, and HUB card. That consistency keeps service time predictable and doesn't demand a specialist technician just to reach the components that need attention.

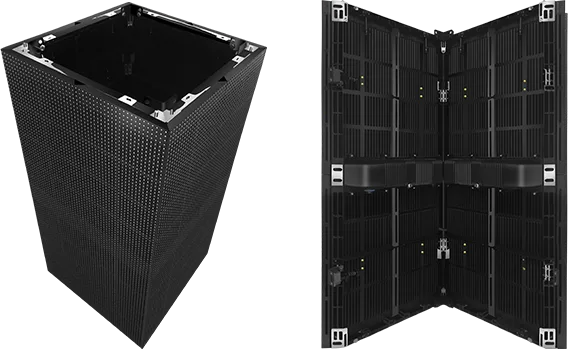

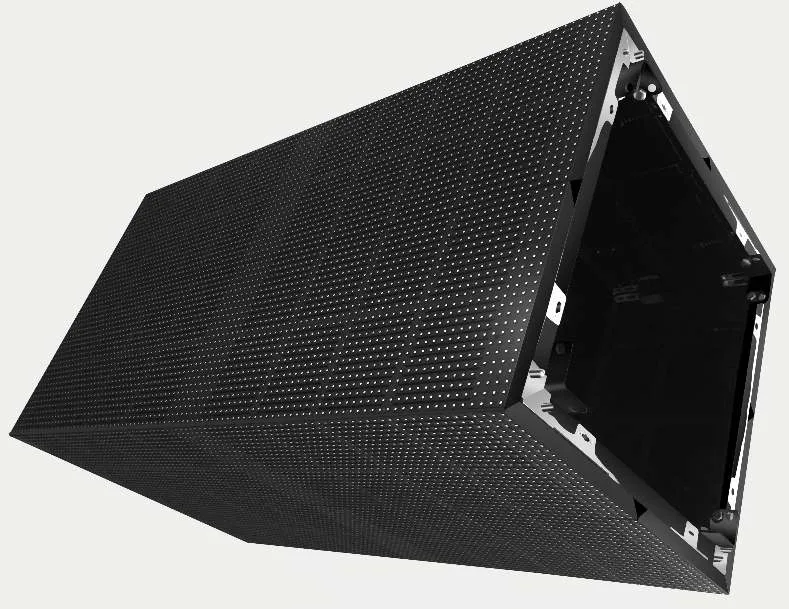

Seamless 90 Degree Corner Assemblies
45 degree chamfered edges let panels splice at true 90 degree corners with no visible gap or frame intrusion. An optional curve lock supports both concave and convex curves across a range of -15 degrees to +15 degrees, letting building facades with compound geometries carry digital content that follows the actual architecture instead of forcing a flat plane onto a curved surface.
Purpose-Built for Building-Scale Applications
This series was designed specifically for installations where transparency, weight, and wind load are real constraints, building facades, glass curtain walls, atriums, airports, and landmark signage. It's built to perform in exactly the situations where a solid LED panel would be structurally impractical or visually out of place.
Every Display Includes Lifetime Benefits
Parts Warranty
Confidence in quality of construction & availability of replacement/repair parts
Lifetime Support
Contact our technical support team with any and all technical issues
Lifetime Cloud Access
Enjoy accessing your display(s) from anywhere and anytime
Lifetime Software
Viplex handy software included with all sign packages and displays
Easy Assembly
Simple plug and play modular panel for easy accessibility and troubleshooting
High Definition
Highest refresh rates in the industry with crystal clear images, text, and video content
Extreme Brightness
Legible even in direct sunlight
Where the Gmesh Series Shines

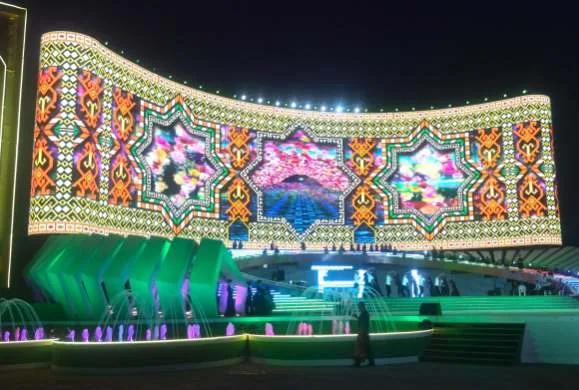

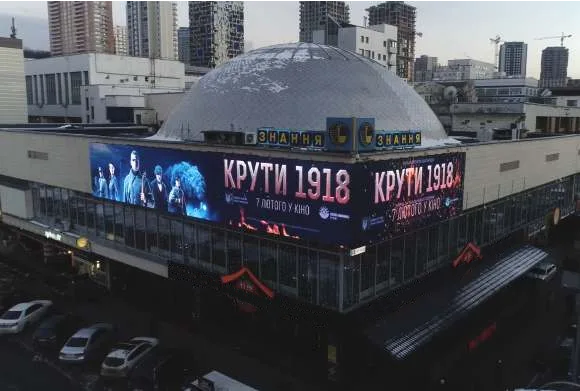

Building facades and glass curtain walls, atriums and covered outdoor spaces, retail storefronts, landmark and destination signage, airports and transit infrastructure, experiential and event installations
Our Process
We have a simple, streamlined process once you have decided to purchase one of our Digital Displays.
Consultation & Survey
We review your site, define your sign program, and map every location, size, and mounting spec before design begins.
Design & Permitting
Certified shop drawings are produced and submitted for permit approval u2014 signed off by your team before production starts.
In-House Fabrication
Every sign is built in our own facility with in-house QC. No outsourcing means tighter quality and reliable lead times.
Installation & Sign-Off
Certified crews install every sign. We conduct a full walkthrough and provide documentation before handover.
Gmesh Series Specifications
All specifications subject to change.
| Parameters | P3.9 | P10 | P16-A | P16-B | P16-C | P25 | P31.25 |
|---|---|---|---|---|---|---|---|
| Pixel Pitch | 3.9-7.8mm | 10.4mm | 15.625mm | 15.625mm | 15.625-31.25mm | 25-31.25mm | 31.25mm |
| LED Type | SMD1921 | SMD2727 | SMD3535 | DIP346 | DIP346 | DIP346 | DIP346 |
| Brightness | 5500 nits | 10,000 nits | 10,000 nits | 10,000 nits | 10,000 nits | 10,000 nits | 10,000 nits |
| Scan Rate | 1/8 | 1/3 | Static | Static | Static | Static | Static |
| Refresh Rate | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| Panel Size | H39.4in x W19.7in (1000x500mm) | H39.4in x W19.7in (1000x500mm) | H39.4in x W19.7in (1000x500mm) | H39.4in x W19.7in (1000x500mm) | H39.4in x W19.7in (1000x500mm) | H39.4in x W19.7in (1000x500mm) | H39.4in x W19.7in (1000x500mm) |
| Module Size | H19.7in x W4.9in | H19.7in x W9.85in | H19.7in x W9.85in | H19.7in x W9.85in | H19.7in x W9.85in | H19.7in x W9.85in | H19.7in x W9.85in |
| Panel Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Panel Weight | 21 lbs | 21 lbs | 19.8 lbs | 23 lbs | 21 lbs | 21 lbs | 21 lbs |
| Protection Level | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Max Power Consumption | 320W | 210W | 210W | 175W | 175W | 175W | 175W |
| Average Power Consumption | 160W | 105W | 105W | 88W | 88W | 88W | 88W |
| Grey Scale | 16-bit | 16-bit | 16-bit | 16-bit | 16-bit | 16-bit | 16-bit |
| Viewing Angle | H120, V120 | H120, V120 | H120, V120 | H100, V50 | H100, V50 | H120, V55 | H100, V50 |
| Input Voltage | Wide Range 100-240VAC | Wide Range 100-240VAC | Wide Range 100-240VAC | Wide Range 100-240VAC | Wide Range 100-240VAC | Wide Range 100-240VAC | Wide Range 100-240VAC |
| Working Temperature | -22F to +158F | -22F to +158F | -22F to +158F | -22F to +158F | -22F to +158F | -22F to +158F | -22F to +158F |
| Working Humidity | 10%-90% RH | 10%-90% RH | 10%-90% RH | 10%-90% RH | 10%-90% RH | 10%-90% RH | 10%-90% RH |
| Color Temperature | 3000-10000K | 3000-10000K | 3000-10000K | 3000-10000K | 3000-10000K | 3000-10000K | 3000-10000K |
| Certifications | UL/EMC/CE/ROHS/CCC/FCC/BIS | UL/EMC/CE/ROHS/CCC/FCC/BIS | UL/EMC/CE/ROHS/CCC/FCC/BIS | UL/EMC/CE/ROHS/CCC/FCC/BIS | UL/EMC/CE/ROHS/CCC/FCC/BIS | UL/EMC/CE/ROHS/CCC/FCC/BIS | UL/EMC/CE/ROHS/CCC/FCC/BIS |
| Maintenance | Front and Rear Service | Front and Rear Service | Front and Rear Service | Front and Rear Service | Front and Rear Service | Front and Rear Service | Front and Rear Service |
