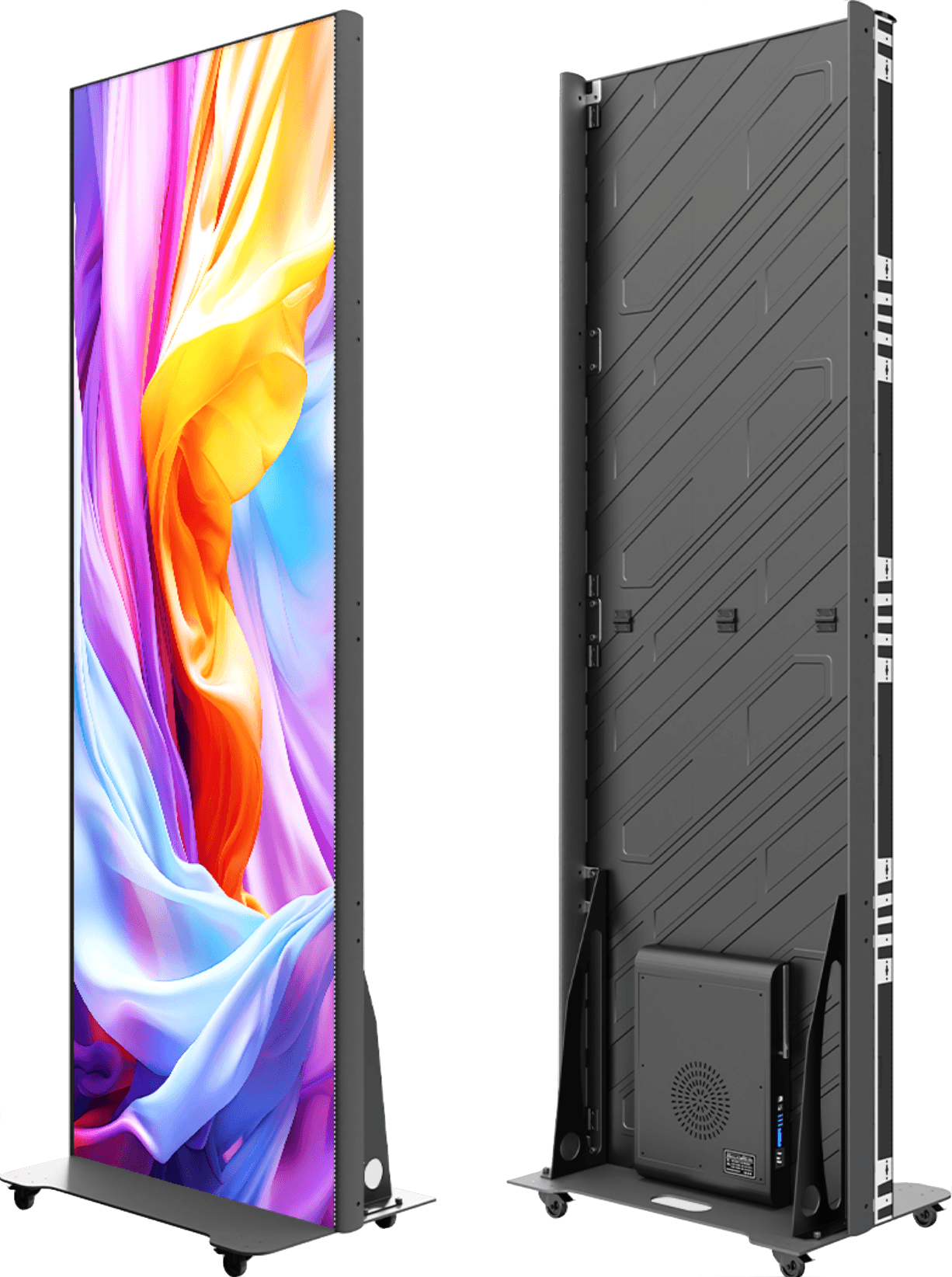

Gposter-A Series
High-Definition Mobile Commercial LED Display
What Makes the Gposter-A Series Different

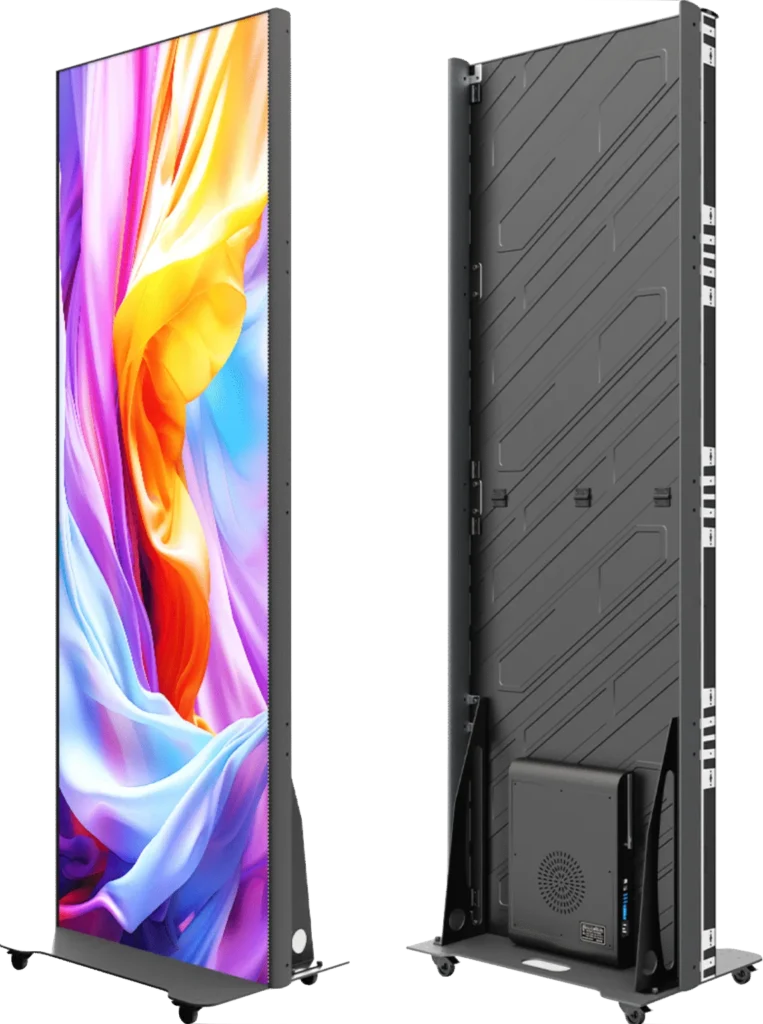

One Person, No Lifting
Each unit ships in a custom road case built around an integrated ramp, so a single operator can roll it off a vehicle and into position without any lifting, which also lowers the risk of damage. Add built-in wheels and a foldable frame, and one person can handle transport, setup, power-up, and content control from start to finish.

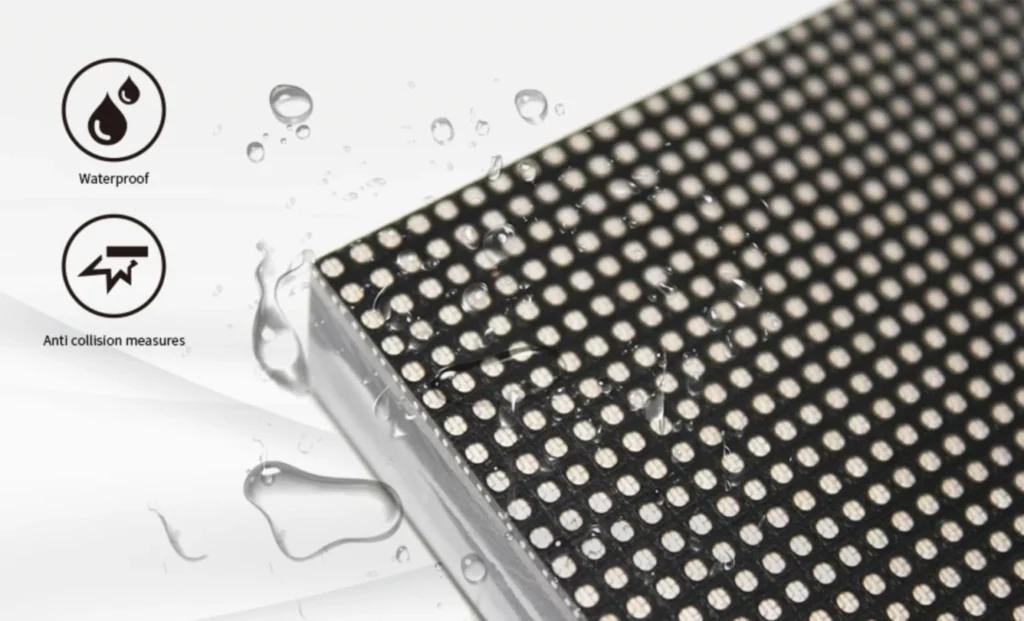

GOB Protection for High-Traffic Environments
Every panel is built with GOB (Glue-on-Board) construction, which bonds a protective layer directly over the fine-pitch LED surface without blocking front or rear service access. That layer holds up against accidental bumps, dust, and moisture, a real advantage when a display is working a crowded showroom floor or a busy trade show aisle.

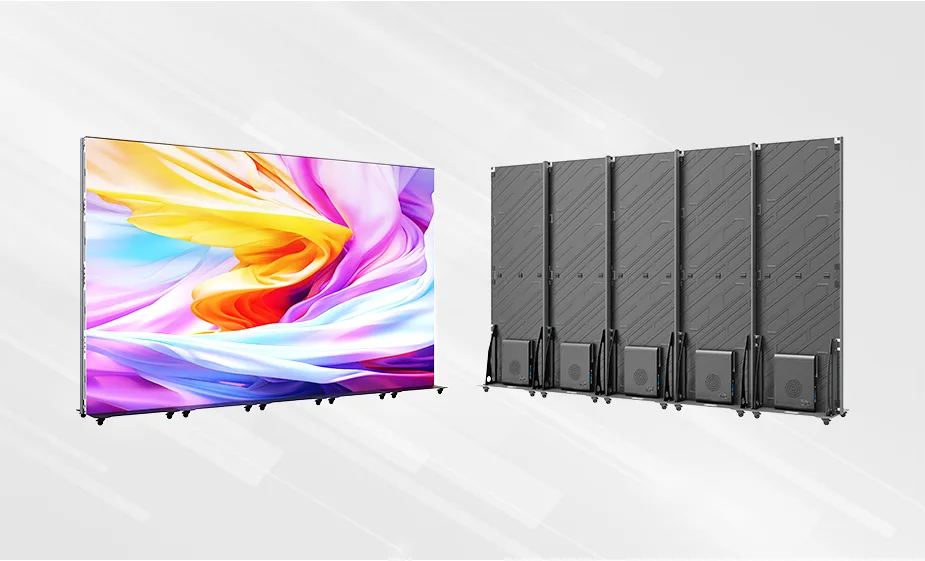

Seamless Multi-Unit Connections
Bezels attach with a hinge instead of screws, so they simply fold to the rear when panels are joined into a larger wall. Tight mechanical alignment and synchronized signal processing keep every panel locked into one continuous, gap-free surface, with consistent brightness and color across the board, so no seams show once powered on.

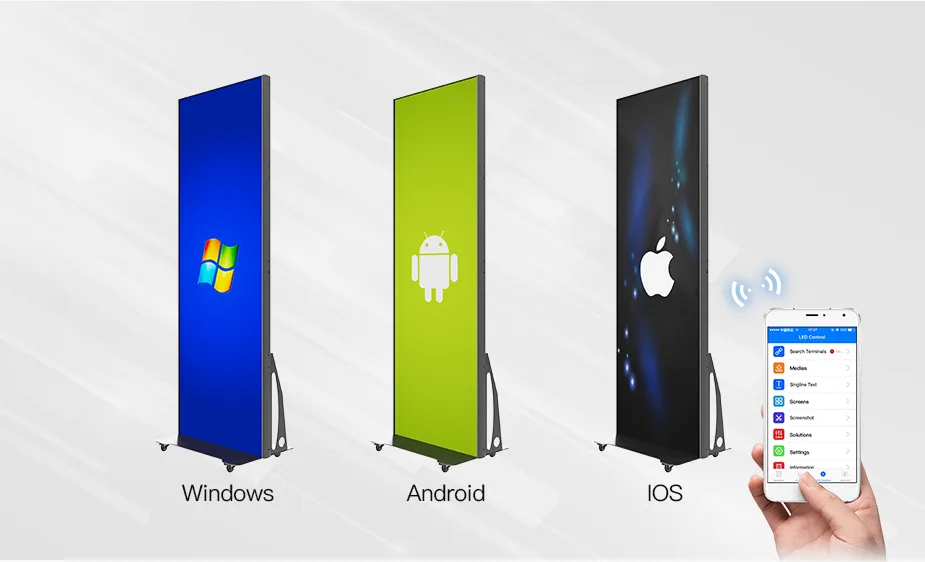

Remote Content Management
Uploads, scheduling, and live updates run through 4G or Wi-Fi from any smartphone or tablet, without needing extra hardware on site. Multiple panels can be managed at the same time, which makes this setup practical for retailers running content across several locations or crews managing a touring event.

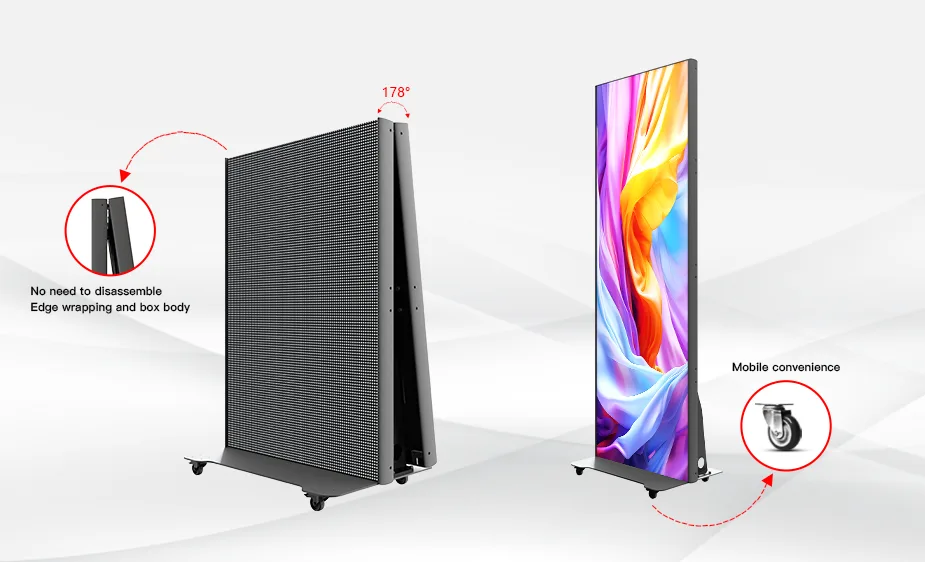

Efficient Storage and Logistics
The foldable frame shrinks the footprint considerably when panels aren't in use, so more units fit into the same storage space. For rental fleets and touring productions, that translates into less warehouse space and lower transport costs per event, even over a full season.
Every Display Includes Lifetime Benefits
Parts Warranty
Confidence in quality of construction & availability of replacement/repair parts
Lifetime Support
Contact our technical support team with any and all technical issues
Lifetime Cloud Access
Enjoy accessing your display(s) from anywhere and anytime
Lifetime Software
Viplex handy software included with all sign packages and displays
Easy Assembly
Simple plug and play modular panel for easy accessibility and troubleshooting
High Definition
Highest refresh rates in the industry with crystal clear images, text, and video content
Extreme Brightness
Outshines the sunshine, even in bright indoor environments
Where the Gposter-A Series Shines
Retail environments, exhibitions, showrooms, hospitality venues, promotional events, trade shows, touring events
Our Process
We have a simple, streamlined process once you have decided to purchase one of our Digital Displays.
Consultation & Survey
We review your site, define your sign program, and map every location, size, and mounting spec before design begins.
Design & Permitting
Certified shop drawings are produced and submitted for permit approval u2014 signed off by your team before production starts.
In-House Fabrication
Every sign is built in our own facility with in-house QC. No outsourcing means tighter quality and reliable lead times.
Installation & Sign-Off
Certified crews install every sign. We conduct a full walkthrough and provide documentation before handover.
Gposter-A Series Specifications
All specifications subject to change.
| Parameters | P1.25 | P1.538 | P1.86 | P2 |
|---|---|---|---|---|
| Pixel Pitch | 1.25mm | 1.538mm | 1.86mm | 2mm |
| Assembly Technology | GOB | GOB | GOB | GOB |
| LED Type | SMD1010 | SMD1212 | SMD1515 | SMD1515 |
| Brightness | 600 nits | 600 nits | 800 nits | 800 nits |
| Scan Rate | 1/64 | 1/52 | 1/43 | 1/40 |
| Refresh Rate | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| Display Size | 640x1920mm | 640x1920mm | 640x1920mm | 640x1920mm |
| Panel Resolution (Pixel) | 512x1536 | 416x1248 | 344x1032 | 320x960 |
| Panel Weight | 114.4 lbs | 114.4 lbs | 114.4 lbs | 114.4 lbs |
| Protection Level | IP34 | IP34 | IP34 | IP34 |
| Max Power Consumption | 500W | 500W | 500W | 500W |
| Average Power Consumption | 250W | 250W | 250W | 250W |
| Viewing Angle | H160, V160 | H160, V160 | H160, V160 | H160, V160 |
| Input Voltage | 100-240VAC | 100-240VAC | 100-240VAC | 100-240VAC |
| Working Temperature | -22F to +149F | -22F to +149F | -22F to +149F | -22F to +149F |
| Certifications | UL/EMC/CE/ROHS/CCC/FCC/ISO | UL/EMC/CE/ROHS/CCC/FCC/ISO | UL/EMC/CE/ROHS/CCC/FCC/ISO | UL/EMC/CE/ROHS/CCC/FCC/ISO |
| Module Size | H6.3in x W12.6in | H6.3in x W12.6in | H6.3in x W12.6in | H6.3in x W12.6in |
| Panel Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Maintenance | 100% Front and Rear Service | 100% Front and Rear Service | 100% Front and Rear Service | 100% Front and Rear Service |
| Grey Scale | 16bit | 16bit | 16bit | 16bit |
| Working Humidity | 10%-90% RH | 10%-90% RH | 10%-90% RH | 10%-90% RH |
| Color Temperature | 6500-9500K | 6500-9500K | 6500-9500K | 6500-9500K |
