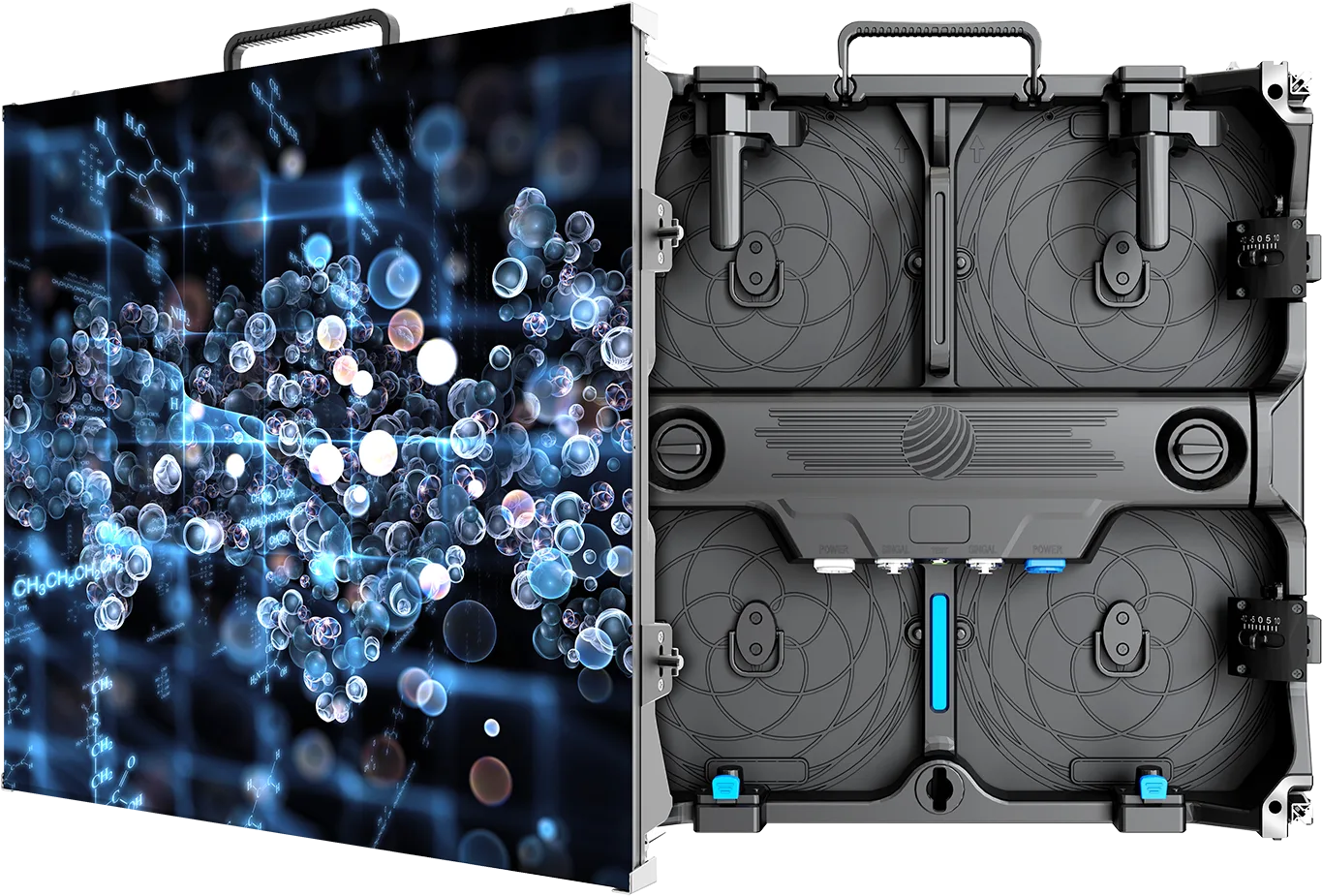

Gprime Series
Premium Rental LED Panel for Fast Deployment
What Makes the Gprime Series Different

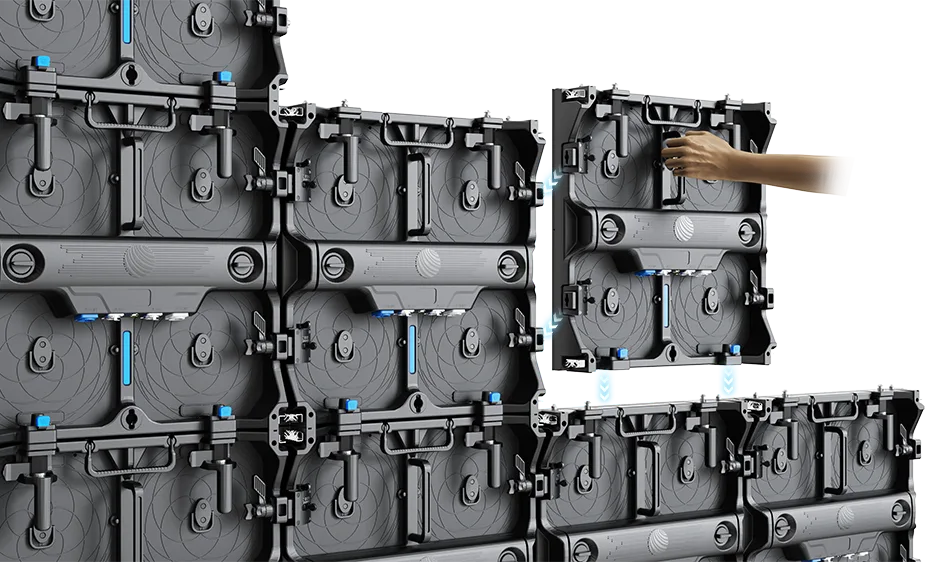

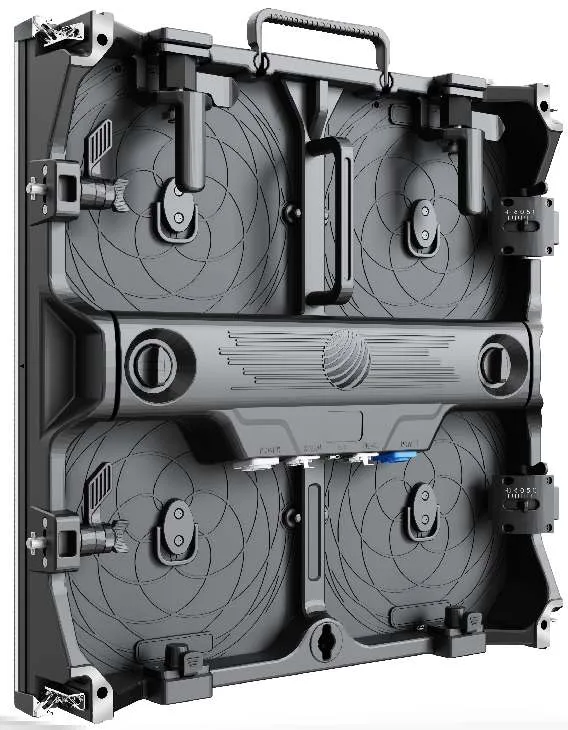

Engineered for Fast Installs
This series is built around one priority: how fast a crew can get a wall up and running. The handle sits in the center of each panel, so one person can carry and place it without a second set of hands. A magnetic alignment system on the top and bottom edges pulls panels into position as they meet, and a one-hand lock secures the connection without tools. On a load-in with a tight clock, cutting out the need for two-person handling on every single panel adds up to real time saved across a full stage build.

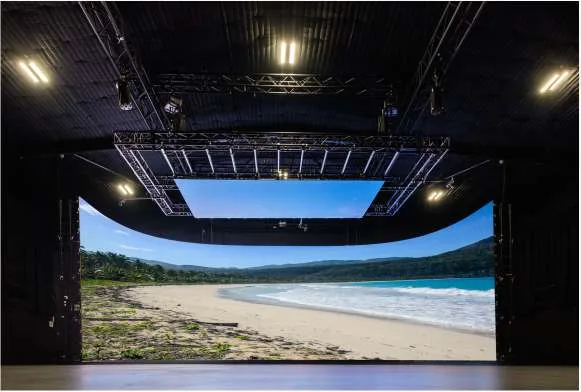

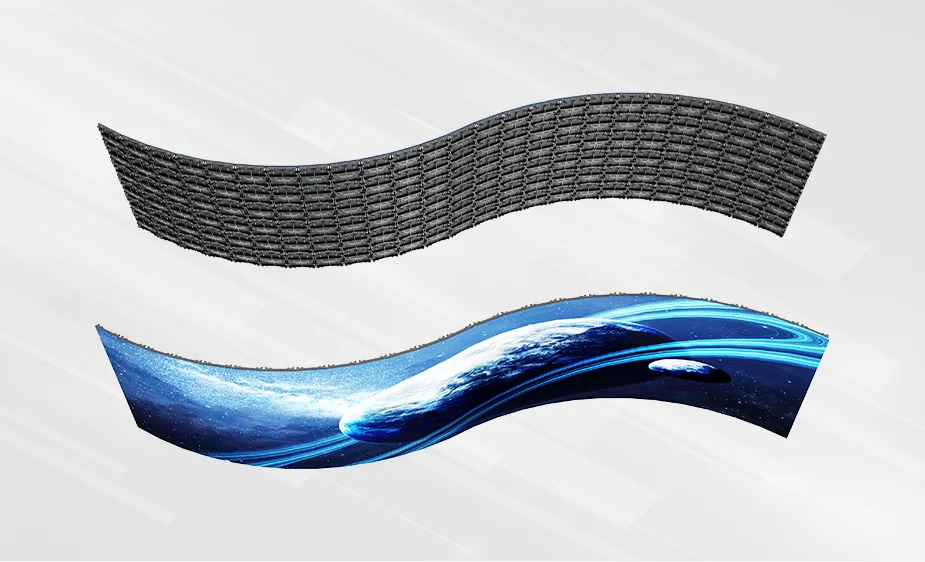

Wider Curve Range for Creative Staging
Each panel bends from -10u00b0 to +10u00b0, a noticeably wider range than typical rental LED, including our own Gwave line, which tops out at -6u00b0 to +6u00b0. That extra range opens up sharper arcs and tighter wraparounds without needing custom brackets or structural workarounds. Designers can build a compound curve or a full wave wall using standard panels instead of engineering a one-off solution for a single show.

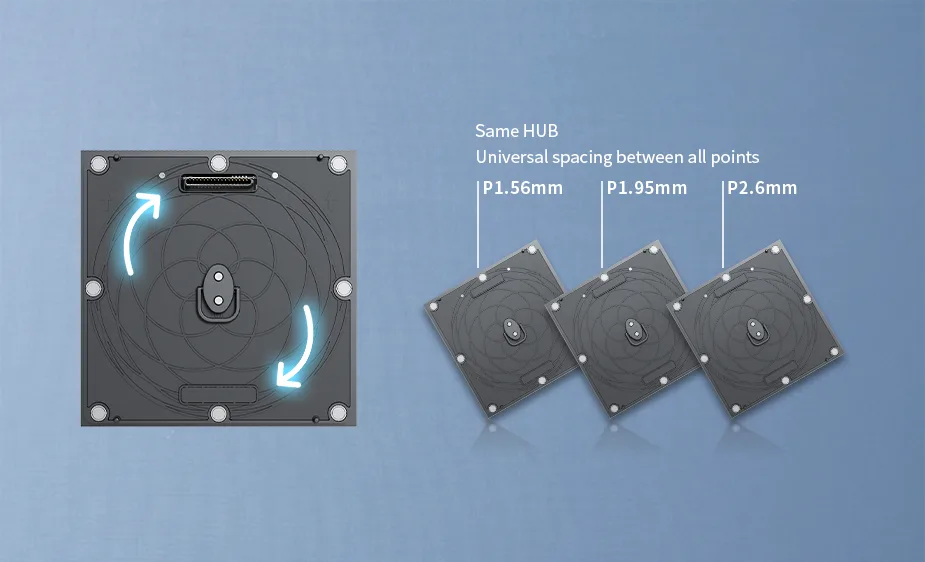

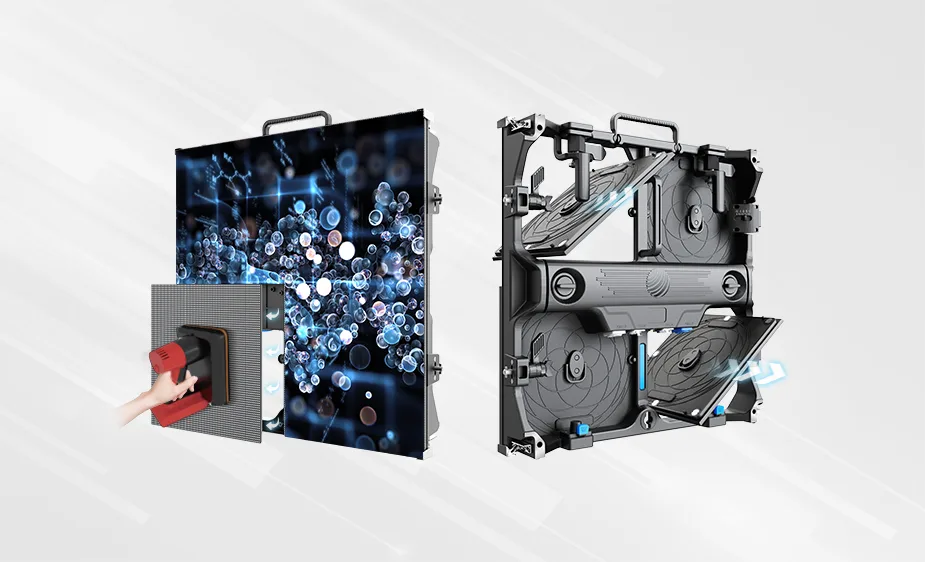

Universal Module Design
Every module across all four positions on a Gprime panel is identical. There's no top, bottom, left, or right orientation to track, any module fits any slot. That matters most in the field, where a tech pulling a spare during a live event doesn't have time to sort through parts looking for the right orientation. Stocking one module type per pixel pitch covers every repair scenario the panel could throw at a crew.

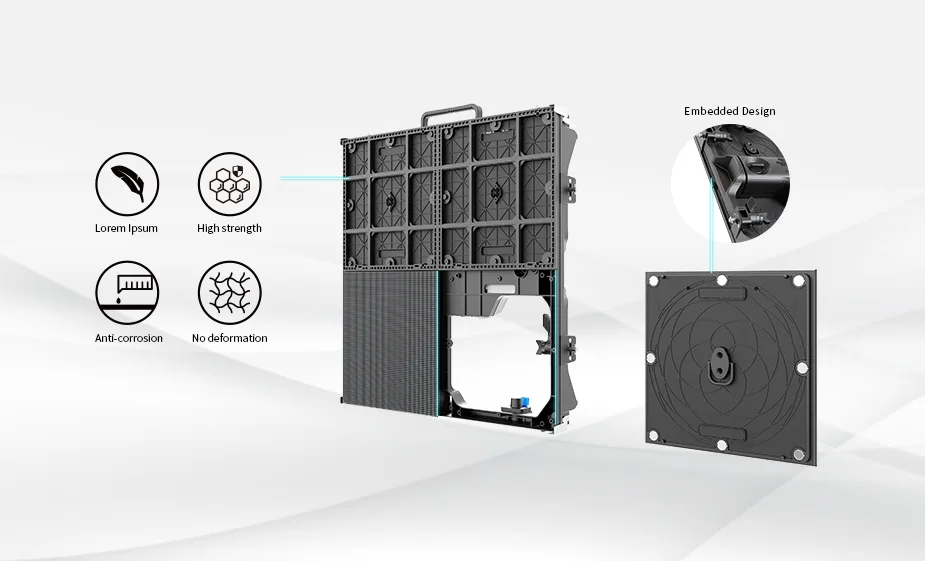

Protected for Rental Realities
Anti-collision corner protection guards against the dents and cracked housings that build up over repeated load-ins, load-outs, and freight runs, the kind of wear a panel takes on over a touring season rather than a single show. On the fine-pitch models, GOB coating adds a layer of resistance over the LED surface itself, standing up to scratches and contact in a way standard SMD construction can't. Between the two, the panel is built to survive handling, not just display quality.

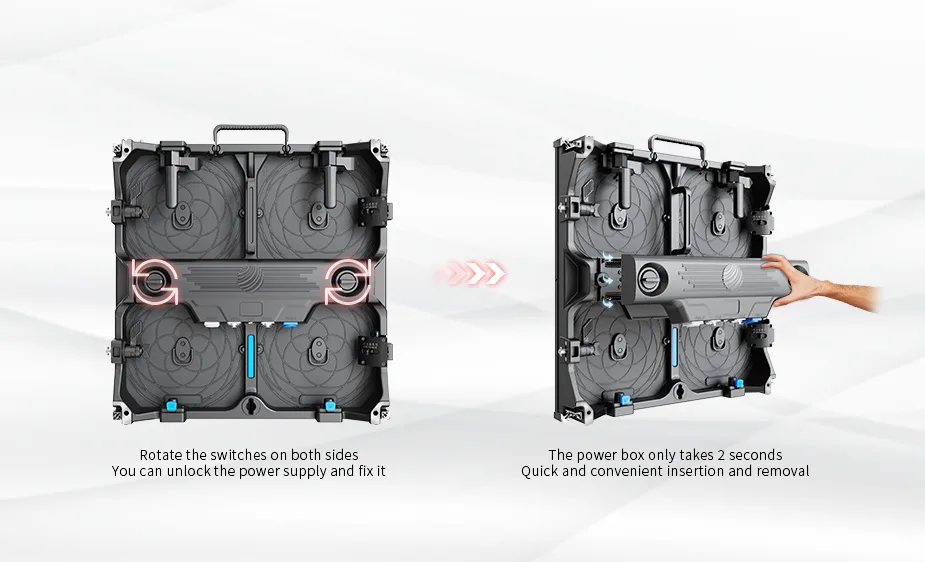

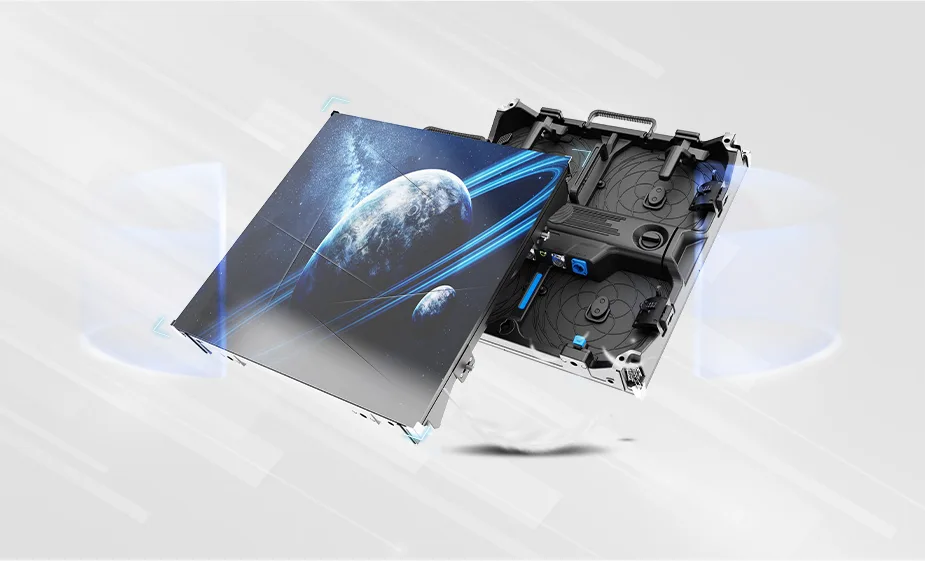

Quick-Release Power System
The power box mounts horizontally and uses a dual-knob design that lets a technician pull it and swap it in one step, no tools required. Paired with the quick-release lock system on the panel itself, a crew can resolve a module fault, a power issue, or a full panel swap without tearing into the rest of the wall. Less time troubleshooting mid-show means less risk of a visible gap in the display when it matters most.
Every Display Includes Lifetime Benefits
Parts Warranty
Confidence in quality of construction & availability of replacement/repair parts
Lifetime Support
Contact our technical support team with any and all technical issues
Lifetime Cloud Access
Enjoy accessing your display(s) from anywhere and anytime
Lifetime Software
Viplex handy software included with all sign packages and displays
Easy Assembly
Simple plug and play modular panel for easy accessibility and troubleshooting
High Definition
Highest refresh rates in the industry with crystal clear images, text, and video content
Extreme Brightness
Outshine the sunshine with 10,000+ nits
Where the Gprime Series Shines
Touring productions, concerts, trade shows, corporate events, large-scale staging, indoor LED displays
Our Process
We have a simple, streamlined process once you have decided to purchase one of our Digital Displays.
Consultation & Survey
We review your site, define your sign program, and map every location, size, and mounting spec before design begins.
Design & Permitting
Certified shop drawings are produced and submitted for permit approval u2014 signed off by your team before production starts.
In-House Fabrication
Every sign is built in our own facility with in-house QC. No outsourcing means tighter quality and reliable lead times.
Installation & Sign-Off
Certified crews install every sign. We conduct a full walkthrough and provide documentation before handover.
Gprime Series Specifications
All specifications subject to change.
| Parameters | P1.56 | P1.953 | P1.953 XR | P2.6 | P2.6 XR |
|---|---|---|---|---|---|
| Pixel Pitch | 1.5625mm | 1.953mm | 1.953mm | 2.604mm | 2.604mm |
| Assembly | GOB | GOB | GOB | — | — |
| LED Type | SMD1212 | SMD1212 | SMD1515 | SMD1515 | SMD1515 |
| Brightness | 1000 nits | 1200 nits | 1200 nits | 1200 nits | 1200 nits |
| Scan Rate | 1/20 | 1/16 | 1/8 | 1/16 | 1/8 |
| Refresh Rate | 7680Hz | 7680Hz | 7680Hz | 7680Hz | 7680Hz |
| Panel Size | 500×500mm | 500×500mm | 500×500mm | 500×500mm | 500×500mm |
| Resolution (panel) | 320×320px | 256×256px | 256×256px | 192×192px | 192×192px |
| Panel Weight | 15.4 lbs | 15.4 lbs | 15.4 lbs | 15.4 lbs | 15.4 lbs |
| IP Rating | IP34 | IP34 | IP34 | IP34 | IP34 |
| Max Power | 143W | 143W | 143W | 143W | 143W |
| Avg Power | 71.5W | 71.5W | 71.5W | 71.5W | 71.5W |
| Grey Scale | 16-bit | 16-bit | 16-bit | 16-bit | 16-bit |
| Viewing Angle | H160°, V160° | H160°, V160° | H160°, V160° | H160°, V160° | H160°, V160° |
| Curve Range | –10° to +10° | –10° to +10° | –10° to +10° | –10° to +10° | –10° to +10° |
| Input Voltage | 100–240VAC | 100–240VAC | 100–240VAC | 100–240VAC | 100–240VAC |
| Operating Temp | –22°F to +149°F | –22°F to +149°F | –22°F to +149°F | –22°F to +149°F | –22°F to +149°F |
| Color Temp | 6500–9500K | 6500–9500K | 6500–9500K | 6500–9500K | 6500–9500K |
| Certifications | UL/EMC/CE/ROHS/CCC/FCC/ISO | UL/EMC/CE/ROHS/CCC/FCC/ISO | UL/EMC/CE/ROHS/CCC/FCC/ISO | UL/EMC/CE/ROHS/CCC/FCC/ISO | UL/EMC/CE/ROHS/CCC/FCC/ISO |
