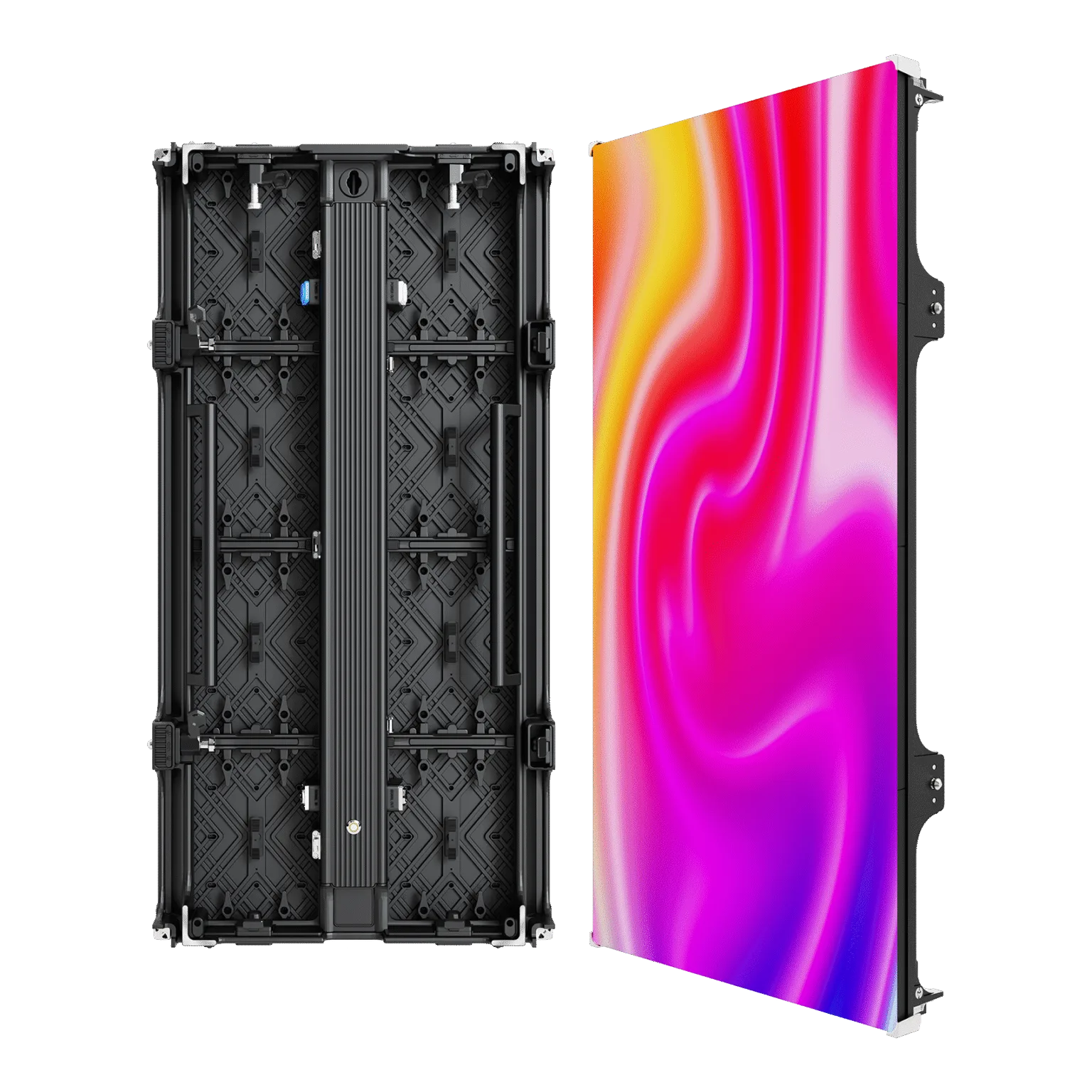

Gstar Series
Large-Format Indoor LED for Fast, Clean Installations
What Makes the Gstar Series Different

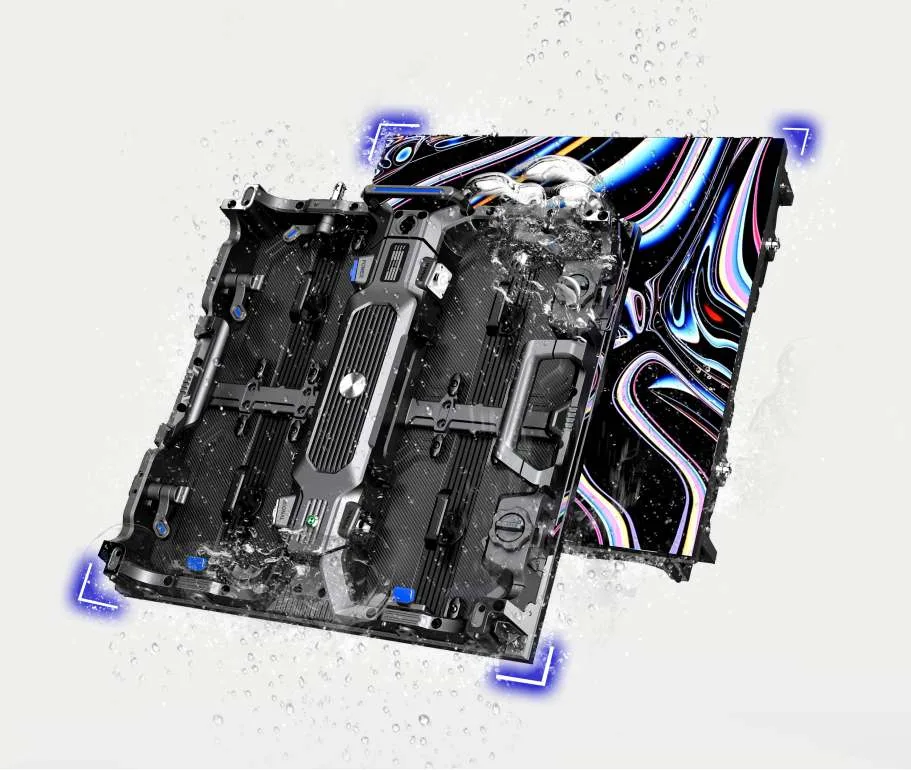

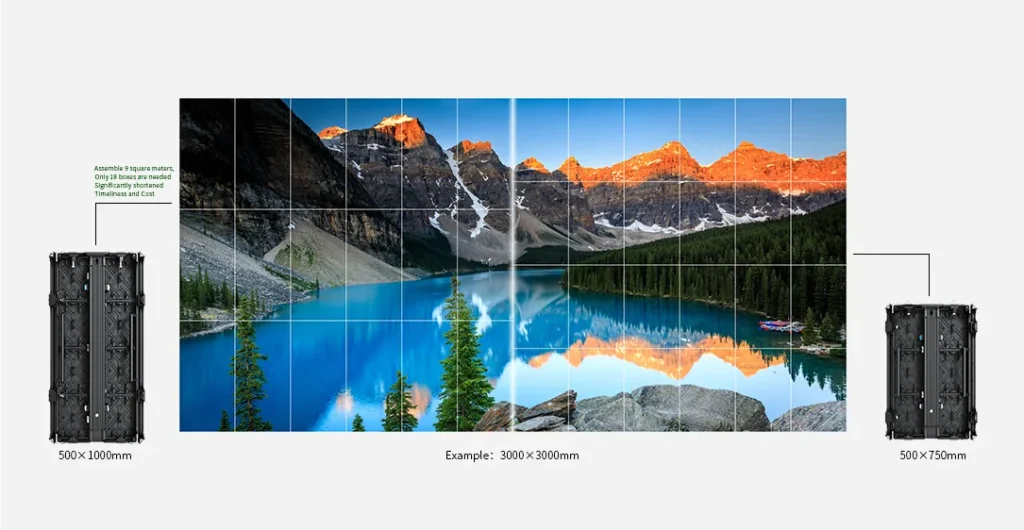

Fewer Panels, Faster Builds
Each panel measures 500 x 1000mm, roughly double the coverage of a standard-size unit, which means fewer individual panels to handle, align, and connect per square meter of wall. That translates directly into fewer labor hours and fewer alignment checks during installation. On a large commercial wall, that difference can shave real time off the path from delivery to commissioning. It also means fewer seams across the finished surface, which keeps the image looking like one continuous display rather than a grid of visible joints.
Front Maintenance, With Rear Access When You Have It
Every module, power supply, and HUB card can be serviced entirely from the front face of the display. That matters most in recessed walls, tight mechanical rooms, or any space where cutting a maintenance corridor isn't realistic. The display can sit flush against a finished wall without demanding structural changes just to keep it serviceable down the line.

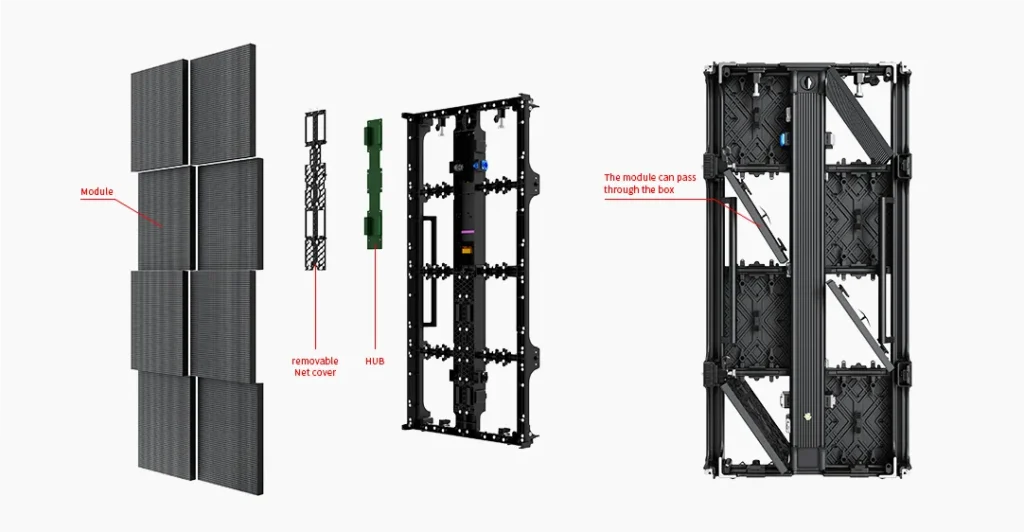

Direct HUB Card Connections
Most LED modules connect to their HUB cards through ribbon cables, a small component that tends to be one of the first things to fail once a display has been running for a while. This series skips that step and connects modules directly to HUB cards instead, cutting out a common point of failure and making module swaps faster when service is actually needed.

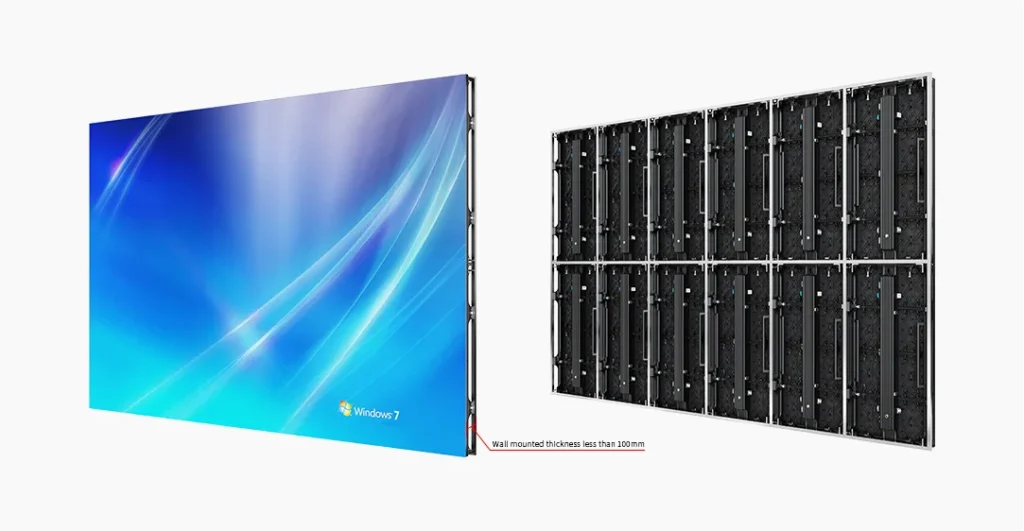

Wall-Mounted by Design
Lightweight construction lets this series mount directly to a wall without a steel subframe behind it. That means no floor structure, no visible support frame, and no equipment eating up space behind the display. For architectural installs where the display needs to read as part of the space rather than hardware bolted onto it, that distinction matters.

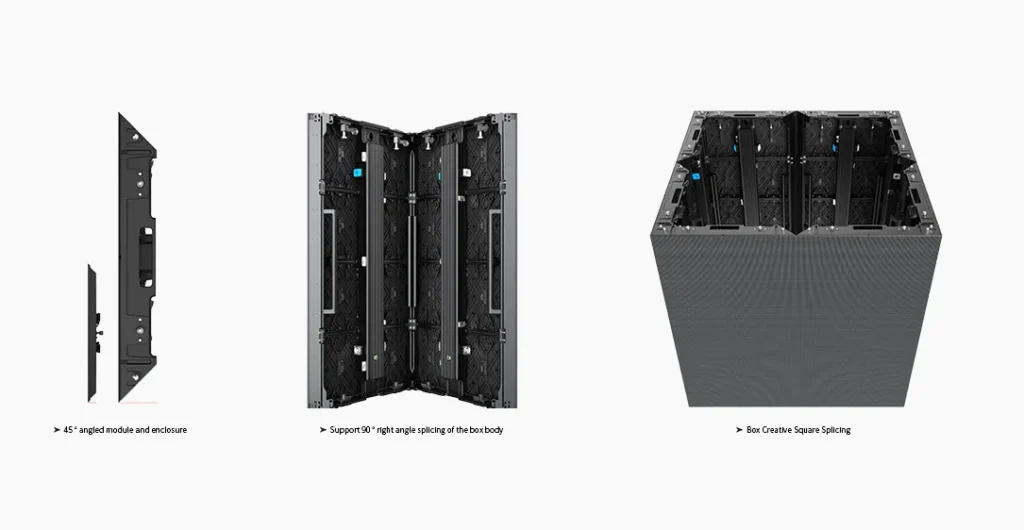

90 Degree Corner Configurations
A 45 degree angle splice lets panels join at true 90 degree angles, which opens up wraparound installs on retail feature walls, structural columns, and room corners without a visible seam breaking up the image. That range of configurations is available without needing a custom or specialty panel built just for the corner.
Consistent Image Quality Across Every Pixel Pitch
From the fine-pitch P1.5 up through P3.91, every configuration runs on the same display tuning underneath it. Low-gray, high-brightness calibration keeps bright areas from blowing out and dark areas from losing detail, so the image holds its depth and contrast no matter which pitch a project calls for. A specifier choosing between pitches for viewing distance doesn't have to trade off image quality to get there.
Every Display Includes Lifetime Benefits
Parts Warranty
Confidence in quality of construction & availability of replacement/repair parts
Lifetime Support
Contact our technical support team with any and all technical issues
Lifetime Cloud Access
Enjoy accessing your display(s) from anywhere and anytime
Lifetime Software
Viplex handy software included with all sign packages and displays
Easy Assembly
Simple plug and play modular panel for easy accessibility and troubleshooting
High Definition
Highest refresh rates in the industry with crystal clear images, text, and video content
Extreme Brightness
Vivid, high-impact visuals that stay crisp and clear even in well-lit indoor spaces.
Where the Gstar Series Shines
Retail and brand environments, corporate campuses, hospitality and entertainment venues, houses of worship, auditoriums, education and institutional spaces
Our Process
We have a simple, streamlined process once you have decided to purchase one of our Digital Displays.
Consultation & Survey
We review your site, define your sign program, and map every location, size, and mounting spec before design begins.
Design & Permitting
Certified shop drawings are produced and submitted for permit approval u2014 signed off by your team before production starts.
In-House Fabrication
Every sign is built in our own facility with in-house QC. No outsourcing means tighter quality and reliable lead times.
Installation & Sign-Off
Certified crews install every sign. We conduct a full walkthrough and provide documentation before handover.
Gstar Series Specifications
All specifications subject to change.
| Parameters | P1.5 | P1.95 | P2.604 | P2.976 | P3.91 |
|---|---|---|---|---|---|
| Pixel Pitch | 1.5625mm | 1.953mm | 2.604mm | 2.976mm | 3.91mm |
| Panel Size | 500×1000×78mm | 500×1000×78mm | 500×1000×78mm | 500×1000×78mm | 500×1000×78mm |
| Module Size | 250×250mm | 250×250mm | 250×250mm | 250×250mm | 250×250mm |
| Panel Weight | 15kg (33 lbs) | 15kg (33 lbs) | 15kg (33 lbs) | 15kg (33 lbs) | 15kg (33 lbs) |
| Panel Maintenance | Front Service | Front Service | Front Service | Front Service | Front Service |
