Gsurface-III Series
Outdoor LED Cabinet Built for the Real World
What Makes the Gsurface-III Series Different

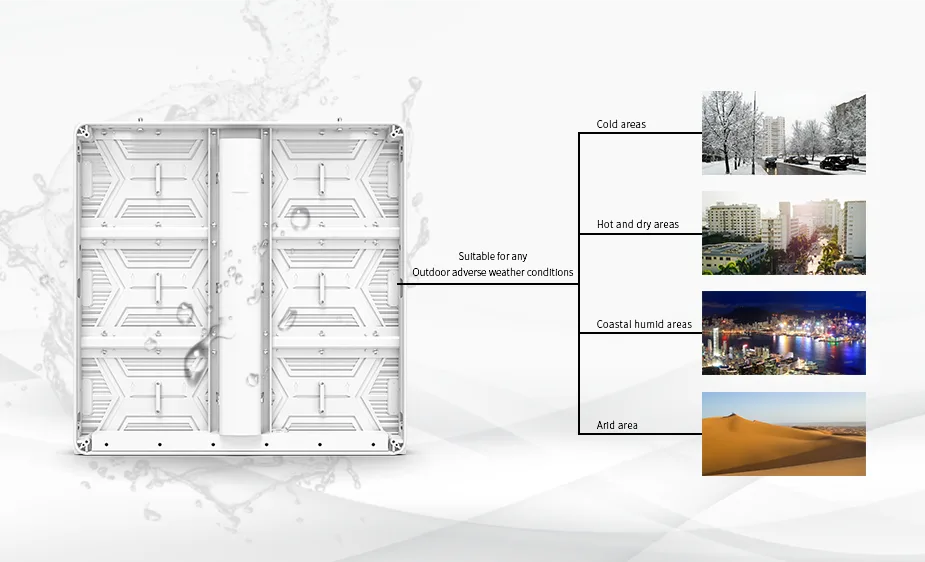

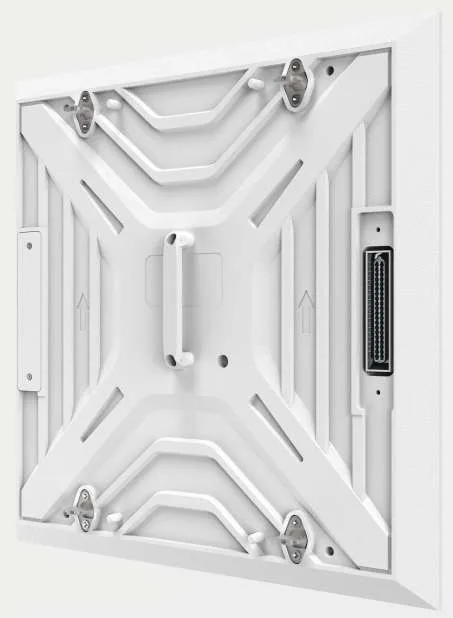

Outdoor LED for Harsh Environments

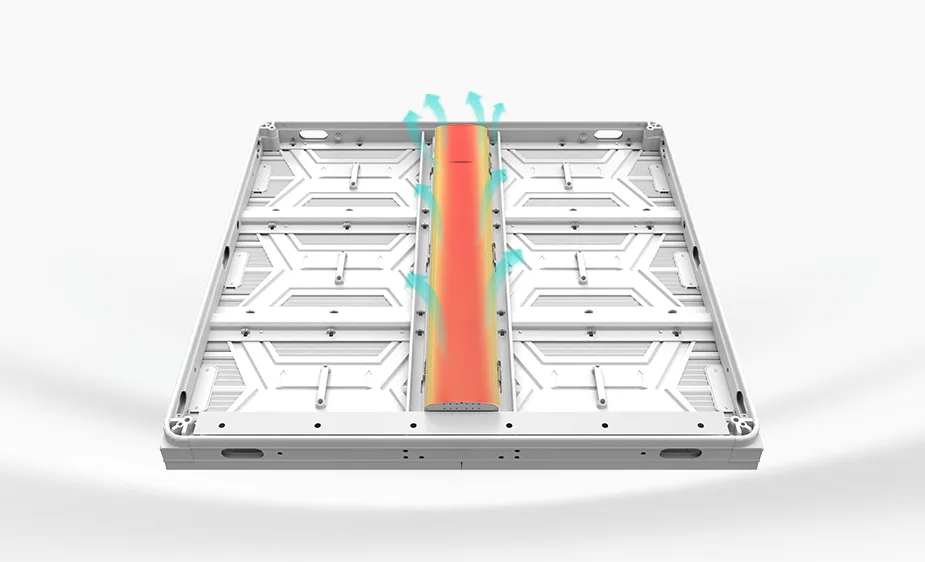

This series is designed for conditions that don't leave room for shortcuts: direct sun, heavy rain, temperature swings, and years of continuous exposure. Each module is independently IP65-rated, dustproof, and sealed against water from any direction. Rather than relying on active air conditioning, the aluminum cabinet works primarily as a passive heat sink, with an internal fan stepping in only when extra cooling is actually needed. That combination keeps the display stable around the clock while cutting out the cost and upkeep that come with running full HVAC behind an outdoor sign.

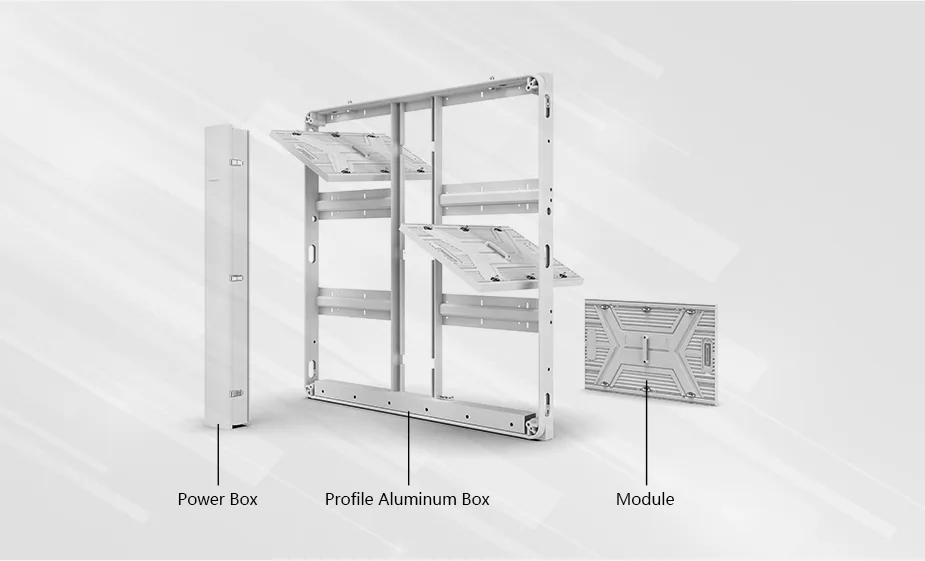

Front Service for Flush Installations
Full front serviceability means this display can be installed flush against a building facade or built into a double-sided sign structure without needing rear access built into the plan. Modules, power components, and signal connections are all reachable from the face, no scaffolding repositioning, no wall penetration, and no disruption to whatever's behind the sign. On sites where rear access does exist, it's still there to use, giving install and service teams the flexibility to work from whichever side actually makes sense for that location.
Standard EMC Cabinet Sizing
Cabinet dimensions line up with the 4' x 8' and 3' x 6' standards already used across electronic message center and billboard construction, so panels assemble without custom cuts or filler pieces. For sign shops and contractors working within established structural frameworks, the display fits the job instead of the job getting redesigned around it.
10,000 Nits in Any Condition
At 10,000 nits, this display holds legibility and color accuracy straight through direct summer sunlight, the exact condition that washes out lower-brightness displays entirely. That output isn't a nice-to-have for roadside and building-facade installs, it's the baseline requirement for competing with natural daylight for a viewer's attention.

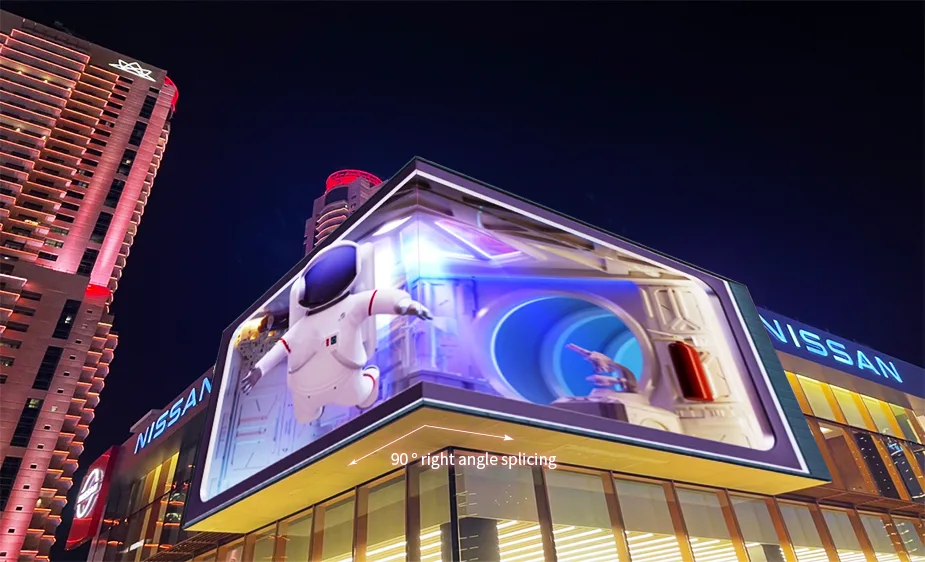

Naked-Eye 3D Capability
45 degree corner modules let adjacent panels join at a true right angle, which is the structural basis for naked-eye 3D advertising, the kind of wraparound corner installation that creates a real illusion of depth on a building edge or freestanding structure. That format has become one of the more recognizable formats in outdoor advertising, and it's increasingly requested for high-traffic retail and commercial locations where standing out matters as much as legibility.
Long-Term Efficiency
A 100,000-hour module lifespan and energy savings of up to 70% compared to traditional outdoor display technology add up to real total cost of ownership savings over the life of the installation, savings that compound further across multi-site deployments where electricity costs run for years. A minimum 120W per panel rating also keeps power draw predictable across large-scale installs, which makes budgeting easier on bigger projects.
Every Display Includes Lifetime Benefits
Parts Warranty
Confidence in quality of construction & availability of replacement/repair parts
Lifetime Support
Contact our technical support team with any and all technical issues
Lifetime Cloud Access
Enjoy accessing your display(s) from anywhere and anytime
Lifetime Software
Viplex handy software included with all sign packages and displays
Easy Assembly
Simple plug and play modular panel for easy accessibility and troubleshooting
High Definition
Highest refresh rates in the industry with crystal clear images, text, and video content
Extreme Brightness
Outshine the sunshine with 10,000+ nits
Where the Gsurface-III Series Shines
Roadside and highway signage, building facades, retail and QSR exterior displays, outdoor advertising networks, naked-eye 3D installations, transit and public space signage
Our Process
We have a simple, streamlined process once you have decided to purchase one of our Digital Displays.
Consultation & Survey
We review your site, define your sign program, and map every location, size, and mounting spec before design begins.
Design & Permitting
Certified shop drawings are produced and submitted for permit approval u2014 signed off by your team before production starts.
In-House Fabrication
Every sign is built in our own facility with in-house QC. No outsourcing means tighter quality and reliable lead times.
Installation & Sign-Off
Certified crews install every sign. We conduct a full walkthrough and provide documentation before handover.
Gsurface-III Series Specifications
All specifications subject to change.
| Parameters | P4 | P5 | P6 | P8 | P10 | P10D | P16 |
|---|---|---|---|---|---|---|---|
| Pixel Pitch | 4mm | 5.71mm | 6.67mm | 8mm | 10mm | 10mm | 16mm |
| Panel Size | W960 x H960 x 78mm | W960 x H960 x 78mm | W960 x H960 x 78mm | W960 x H960 x 78mm | W960 x H960 x 78mm | W960 x H960 x 78mm | W960 x H960 x 78mm |
| Module Size | 480x320mm | 480x320mm | 480x320mm | 480x320mm | 480x320mm | 480x320mm | 480x320mm |
| Panel Weight | 30kg | 30kg | 29.5kg | 29.5kg | 29.5kg | 38.8kg | 38.8kg |
| Panel Maintenance | Front & Rear Service | Front & Rear Service | Front & Rear Service | Front & Rear Service | Front & Rear Service | Front & Rear Service | Front & Rear Service |
