GTV
Ultra-Thin, All-Front Service Ultra HD LED Wall for Wall-Mounted Installations
What Makes the GTV Different
GTV Series Applications
GTV Series ApplicationsrnCorporate conference roomsrnControl rooms and command centersrnBroadcast and studio environmentsrnHigh-end retail displaysrnEducation and training centersrnLobby and architectural installations
Native 16:9 Ultra HD LED Wall
The GTV Series uses a 27-inch cabinet design that naturally achieves a 16:9 golden ratio, allowing seamless stitching for Ultra HD 2K, 4K, and 8K LED walls without image distortion.rnrnFull display sizes from 75 inches to 220 inchesrnPixel-perfect image stitchingrnIdeal for conference rooms, studios, and visualization centersrnThe wide viewing angle ensures clear, lifelike visuals from any perspective, whether viewed up close or from a distance.

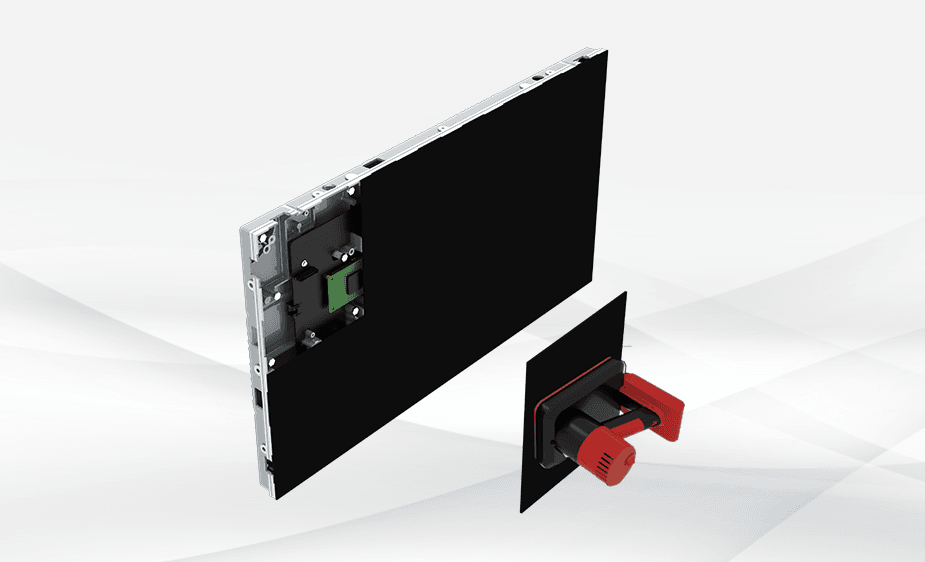

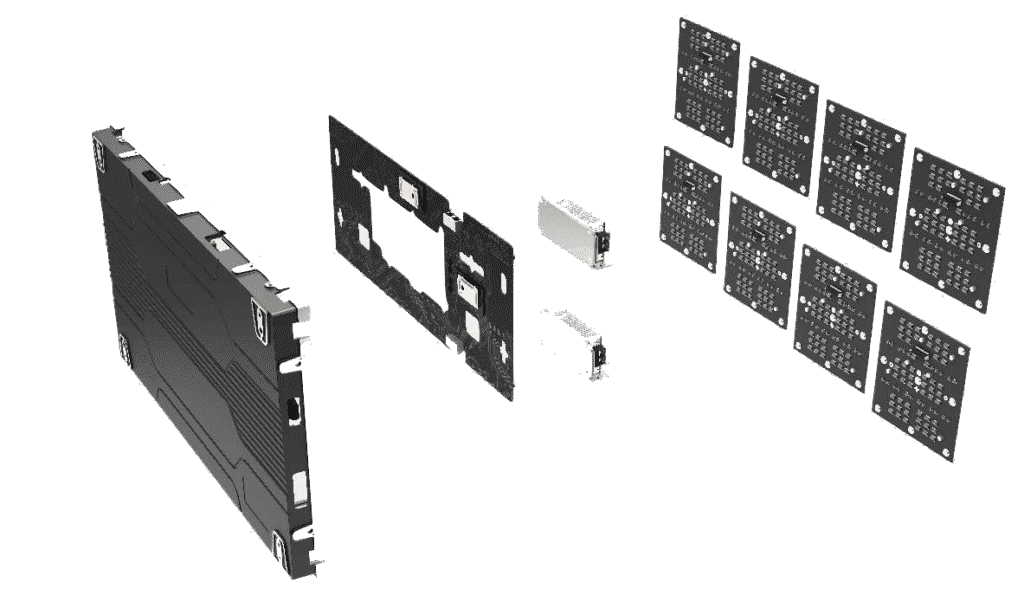

All-Front Service LED Display
All modules, power supplies, and internal components can be fully accessed from the front, making the GTV Series ideal for wall-mounted LED installations.rnrnFront maintenance advantages:rnNo rear access requiredrnFaster installation and servicingrnReduced downtimernMagnetic modular design for quick replacement

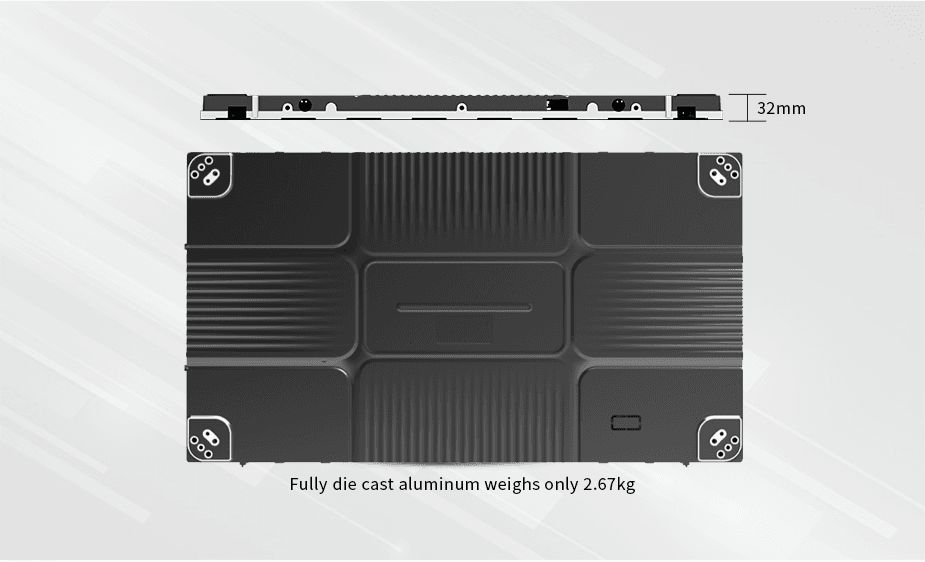

Ultra-Thin & Lightweight LED Cabinet
The die-cast aluminum cabinet design delivers exceptional strength while remaining ultra-thin and lightweight.rnrnThis makes the GTV Series perfect for space-constrained installations and high-end architectural environments.rnCabinet thickness: as thin as 1.6u201drnWeight: 10.5 lbs per panelrnNo additional steel structure requiredrnLow load requirements for walls and mounting systems
Exceptional Image Quality & Color Accuracy
The GTV Series delivers outstanding display performance with:rnDarker blacks and brighter whitesrnUltra-high contrast ratiorn16-bit color depth for smooth gradientsrnFrame rate up to 7680Hz for fluid motionrnThese features enhance image clarity, detail, and realism for professional viewing applications.

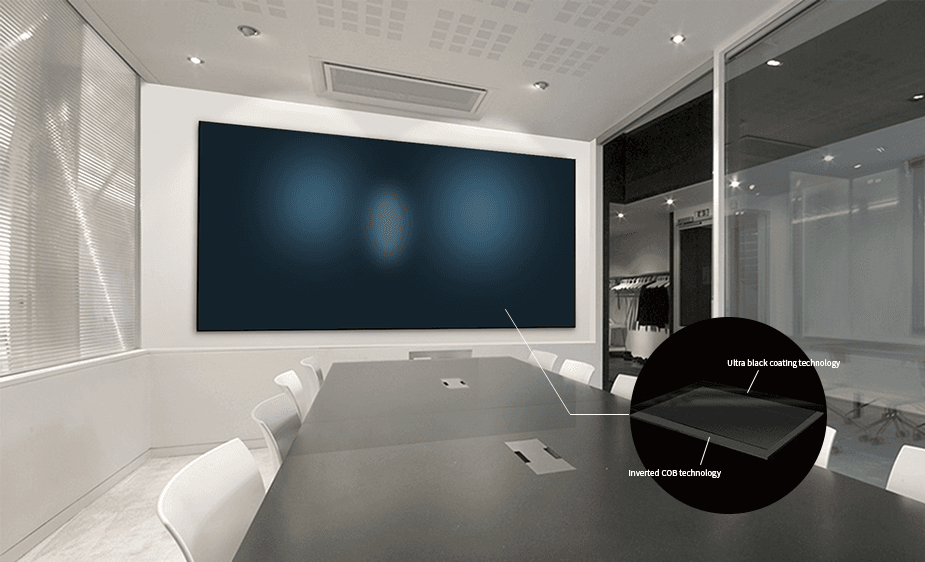

Screen-Off Mirror Black Glossy Finish
The screen-off mirror black glossy finish ensures ultra-high consistency in ink color and brightness. Combined with single-module calibration technology, the GTV Series achieves a visual appearance comparable to high-end LCD displays, while maintaining the scalability and brightness of LED.

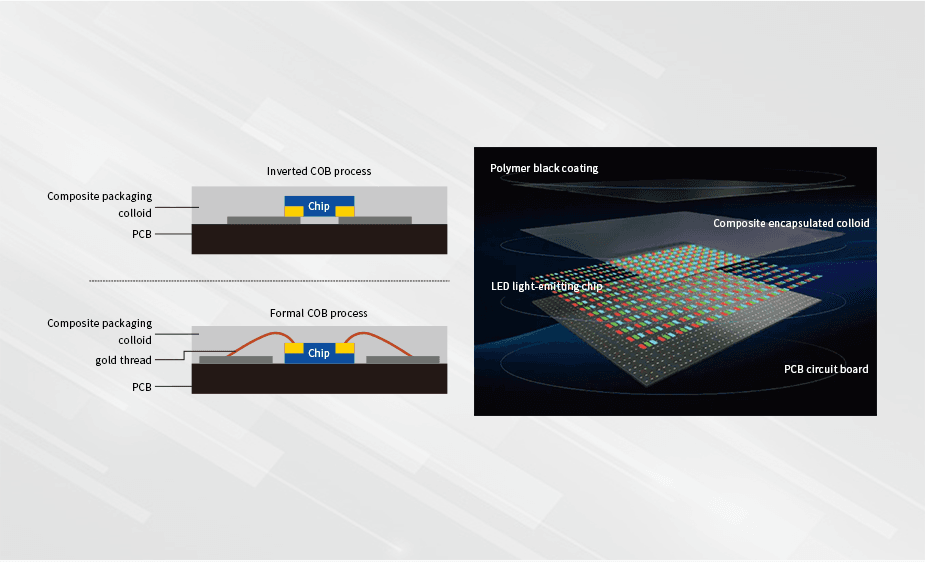

Flip-Chip COB LED Technology
The GTV Series features flip-chip COB LED technology, delivering:rnBrightness up to 1800 nitsrnImproved luminous efficiencyrnLow thermal resistance for superior heat dissipationrnExtended LED chip lifespanrnSupport for smaller pixel pitch Ultra HD displaysrnThis advanced COB structure ensures long-term stability and consistent performance in professional environments.
Ultra-high Resolution
Full size layout from 75 inches to 220 inches, covering all ultra-high definitions of 2K, 4K, and 8Krn

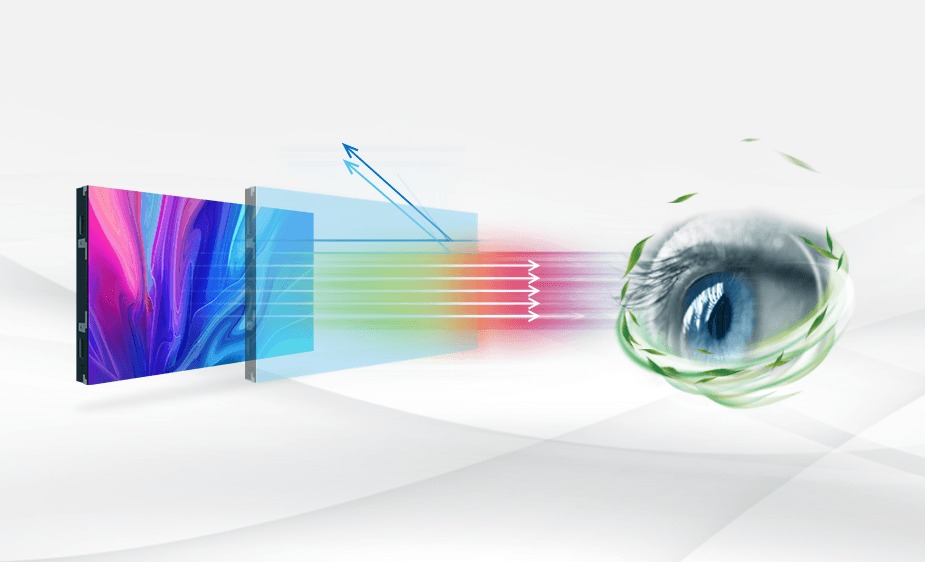

Green, Energy-Efficient & Eye-Friendly Design
The GTV Series incorporates dynamic energy-saving technology and eye-care features:rnrnLow blue light visual protectionrnLarge light-emitting chipsrnLow-power driving circuitsrnReduced power consumption without sacrificing brightnessrnThis makes it suitable for long-duration viewing environments such as offices and control rooms.

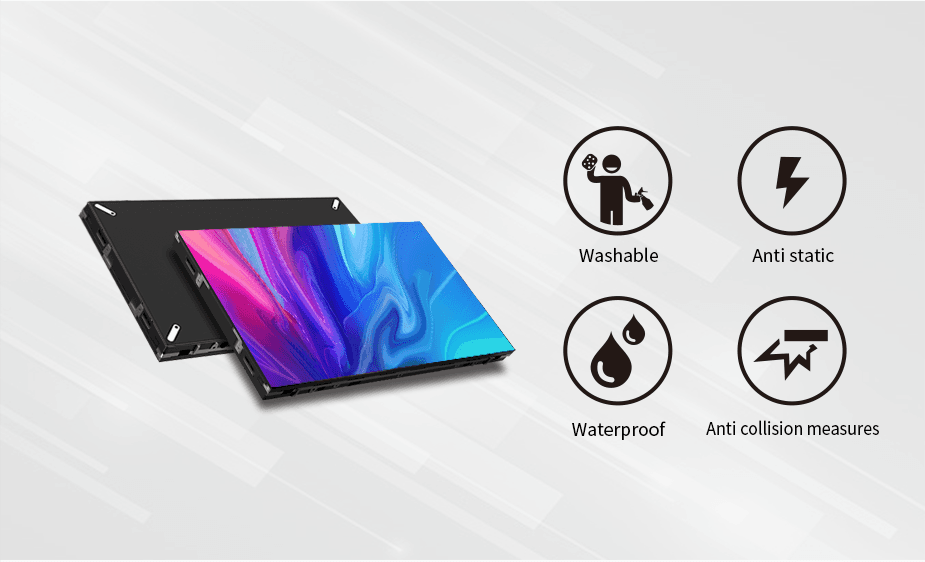

Highly Reliable COB Protection
The COB process combined with premium pure black coating technology provides exceptional protection:rnrnImpact-resistant and drop-resistantrnHighly sealed structurernWater-resistant and moisture-proofrnAnti-static and spray-resistantrnThis ensures stable performance even in demanding commercial or semi-industrial environments.

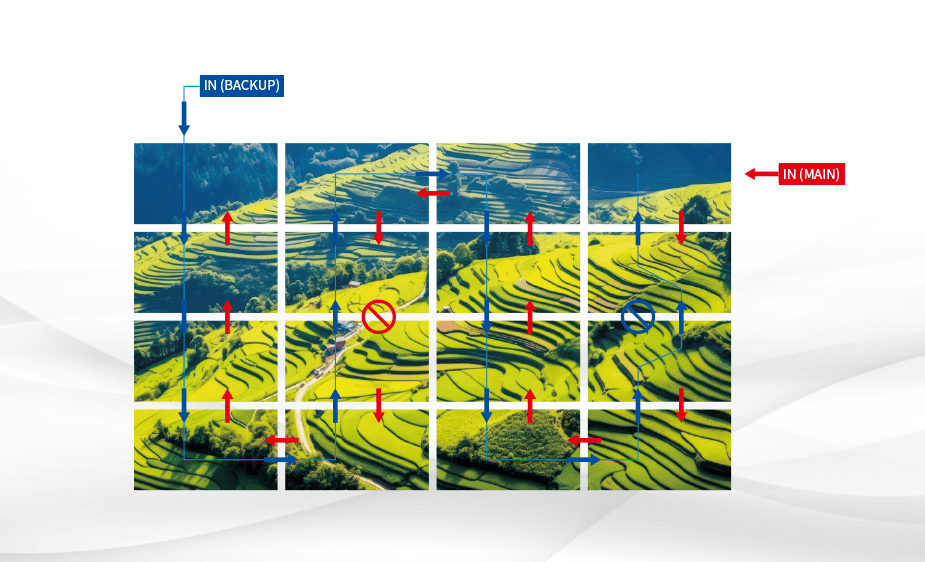

Dual Power & Signal Backup
The GTV Series features dual backup for both power and signal, ensuring uninterrupted operation. If one system encounters an issue, the backup system takes over immediately, preventing display downtime and data loss during power interruptions.rnrn
Our Process
We have a simple, streamlined process once you have decided to purchase one of our Digital Displays.
Consultation & Survey
We review your site, define your sign program, and map every location, size, and mounting spec before design begins.
Design & Permitting
Certified shop drawings are produced and submitted for permit approval u2014 signed off by your team before production starts.
In-House Fabrication
Every sign is built in our own facility with in-house QC. No outsourcing means tighter quality and reliable lead times.
Installation & Sign-Off
Certified crews install every sign. We conduct a full walkthrough and provide documentation before handover.
GTV Specifications
| Parameters | P0.7 | P0.9 | P1.2 | P1.5 | P1.875 |
|---|---|---|---|---|---|
| Pixel Pitch | 0.78mm | 0.93mm | 1.25mm | 1.56mm | 1.875mm |
| Assembly Technology | Flip Chip COB | Flip Chip COB | Flip Chip COB | Flip Chip COB | GOB |
| Brightness | 600-800nits | 600-800nits | 600-800nits | 600-800nits | 600-800nits |
| Refresh Rate | 3840Hz / 7680Hz | 3840Hz / 7680Hz | 3840Hz / 7680Hz | 3840Hz / 7680Hz | 3840Hz / 7680Hz |
| Panel Size | W23.6 x H13.3 in (W600 x H337.5mm) | W23.6 x H13.3 in (W600 x H337.5mm) | W23.6 x H13.3 in (W600 x H337.5mm) | W23.6 x H13.3 in (W600 x H337.5mm) | W23.6 x H13.3 in (W600 x H337.5mm) |
| Panel Resolution (Pixel) | 768x432 | 640x360 | 480x270 | 384x216 | 320x180 |
| Module Size | W5.9 x H6.65 in (W150 x H168.75mm) | W5.9 x H6.65 in (W150 x H168.75mm) | W5.9 x H6.65 in (W150 x H168.75mm) | W5.9 x H6.65 in (W150 x H168.75mm) | W5.9 x H6.65 in (W150 x H168.75mm) |
| Panel Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Panel Weight | 10.5 lbs | 10.5 lbs | 10.5 lbs | 10.5 lbs | 10.5 lbs |
| Protection Level | Front: IP54, Rear: IP34 | Front: IP54, Rear: IP34 | Front: IP54, Rear: IP34 | Front: IP54, Rear: IP34 | Front: IP54, Rear: IP34 |
| Maintenance | Front & Rear Service | Front & Rear Service | Front & Rear Service | Front & Rear Service | Front & Rear Service |
| Max Power Consumption | 120 watts | 100 watts | 82 watts | 60 watts | 120 watts |
| Average Power Consumption | 60 watts | 50 watts | 41 watts | 30 watts | 60 watts |
| Grey Scale | 16bit | 16bit | 16bit | 16bit | 16bit |
| Viewing Angle | H175°, V175° | H175°, V175° | H175°, V175° | H160°, V160° | H160°, V160° |
| Input Voltage | Wide Range 100-240VAC | Wide Range 100-240VAC | Wide Range 100-240VAC | Wide Range 100-240VAC | Wide Range 100-240VAC |
| Working Temperature | -22°F to +149°F | -22°F to +149°F | -22°F to +149°F | -22°F to +149°F | -22°F to +149°F |
| Working Humidity | 10%-90% RH | 10%-90% RH | 10%-90% RH | 10%-90% RH | 10%-90% RH |
| Color Temperature | 6500-9500K | 6500-9500K | 6500-9500K | 6500-9500K | 6500-9500K |
| Certifications | UL/EMC/CE/ROHS/CCC/FCC/ISO | UL/EMC/CE/ROHS/CCC/FCC/ISO | UL/EMC/CE/ROHS/CCC/FCC/ISO | UL/EMC/CE/ROHS/CCC/FCC/ISO | UL/EMC/CE/ROHS/CCC/FCC/ISO |
