Gwave Series
Rental & Virtual Production LED with Curved Design
What Makes the Gwave Series Different

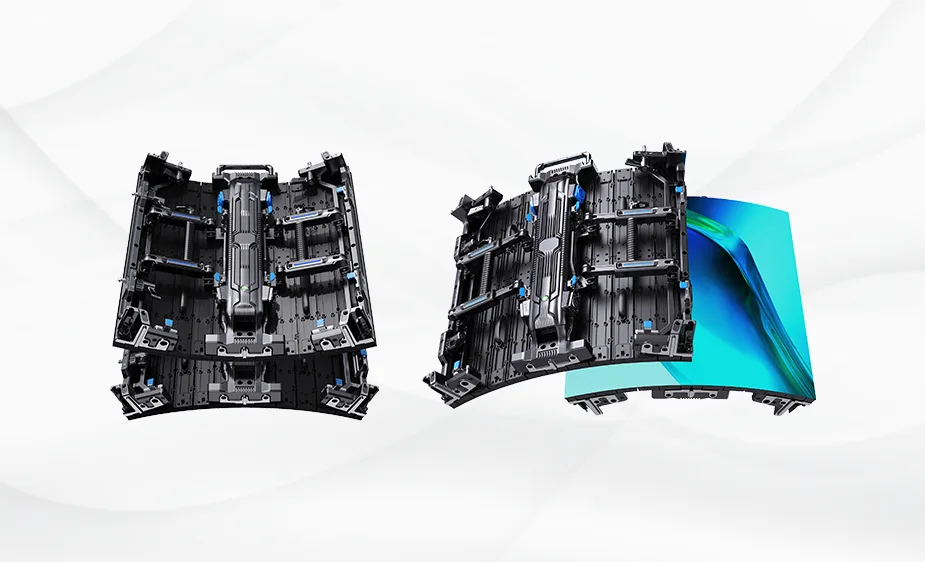

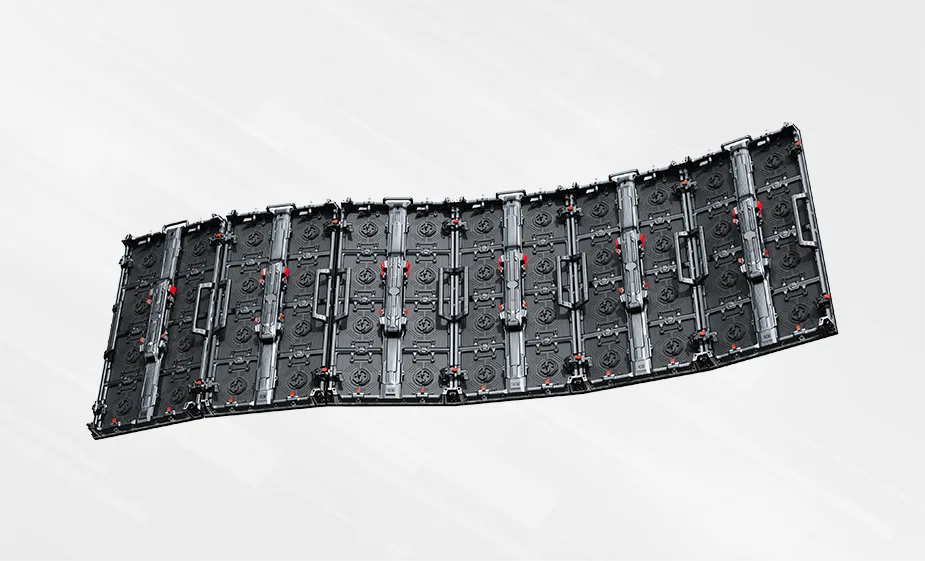

A Rental LED System Designed for Curves
This series fills a specific gap in the rental market: a panel built to handle curved configurations as a core capability rather than a workaround bolted onto a flat design. Each panel adjusts from -6 degrees to +6 degrees of curvature, which covers both concave and convex arcs across the full width of a stage, set, or backdrop. Productions that need a wraparound screen one week and a flat wall the next can run both from the same panel inventory, without renting separate hardware for each shape.

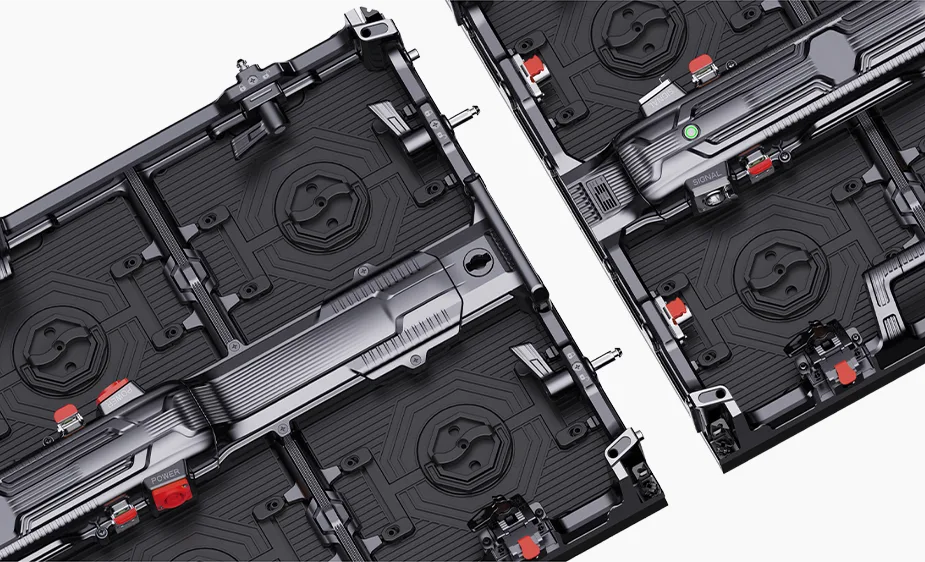

Magnetic Suction Modules
Modules attach using a magnetic suction design rather than screws, which lets crews pull and reseat a module by hand instead of working through a fastener on every panel. On a touring schedule where load-in time is tight and the crew on site changes from city to city, that difference adds up fast. Less time spent on a ladder with a screwdriver means more time actually running the show.
Cross-Compatible with Gmars Series
Panels in this line share mechanical compatibility with our Gmars Series, so mounting hardware, rigging points, and connection interfaces line up across both product lines. For rental houses running mixed inventory, that means a Gwave panel and a Gmars panel can sit in the same wall or share the same flight case setup without needing separate hardware kits for each. It's one less thing to track when a job calls for panels pulled from different parts of your stock.
Indoor and Outdoor Models in One System
The lineup spans indoor fine-pitch models (P1.5 through P2.976) through outdoor-rated P3.91 panels, all in the same 500 x 500mm panel format. The indoor models carry an IP34 rating, suited for controlled environments, while the P3.91 Outdoor steps up to IP65, sealed against rain and dust for open-air stages and festival use. Indoor and outdoor units can anchor the same production, whether it moves from a studio to an outdoor festival stage.

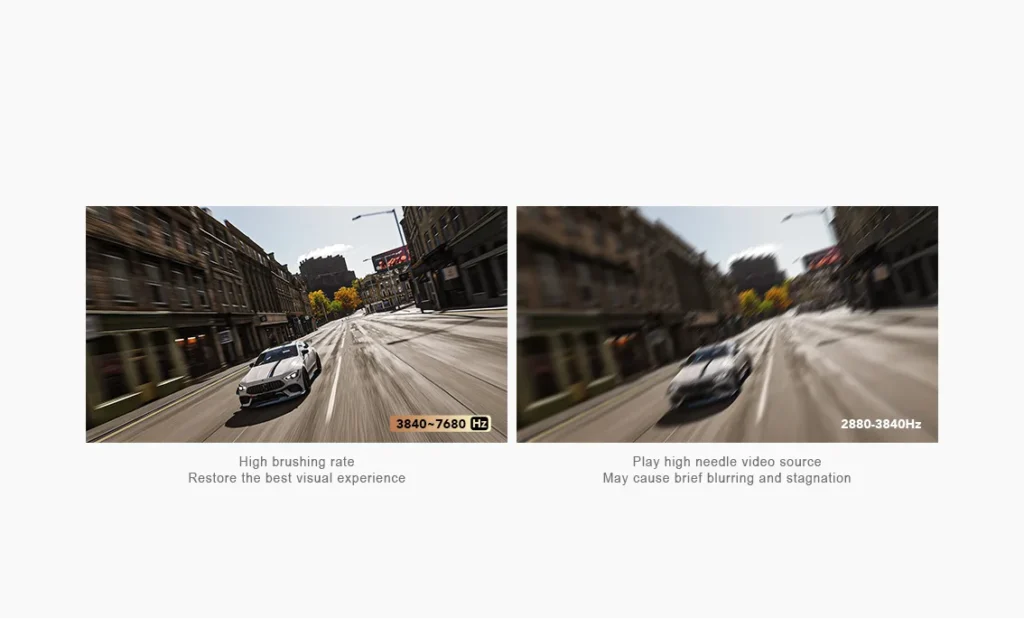

7680Hz for Virtual Production
Virtual production and XR work put a display in front of a camera sensor, not just a live audience, and that's a much less forgiving test. A 7680Hz refresh rate keeps the panel from throwing off rolling bands or flicker on camera, which is exactly the failure mode that ruins footage on lower-spec displays. That reliability carries over to standard concert and live event use as well, where the wall is just as likely to end up on a broadcast feed or a phone camera in the crowd.
Every Display Includes Lifetime Benefits
Parts Warranty
Confidence in quality of construction & availability of replacement/repair parts
Lifetime Support
Contact our technical support team with any and all technical issues
Lifetime Cloud Access
Enjoy accessing your display(s) from anywhere and anytime
Lifetime Software
Viplex handy software included with all sign packages and displays
Easy Assembly
Simple plug and play modular panel for easy accessibility and troubleshooting
High Definition
Highest refresh rates in the industry with crystal clear images, text, and video content
Extreme Brightness
Vivid, high-impact visuals indoors, with outdoor-rated options built to stay clear and visible in daylight.
Where the Gwave Series Shines
Concerts, live events, XR virtual production, touring productions, trade shows, immersive brand activations
Our Process
We have a simple, streamlined process once you have decided to purchase one of our Digital Displays.
Consultation & Survey
We review your site, define your sign program, and map every location, size, and mounting spec before design begins.
Design & Permitting
Certified shop drawings are produced and submitted for permit approval u2014 signed off by your team before production starts.
In-House Fabrication
Every sign is built in our own facility with in-house QC. No outsourcing means tighter quality and reliable lead times.
Installation & Sign-Off
Certified crews install every sign. We conduct a full walkthrough and provide documentation before handover.
Gwave Series Specifications
All specifications subject to change.
| Parameters | Indoor | Outdoor | ||||||
|---|---|---|---|---|---|---|---|---|
| P1.5 | P1.95 | P2.604 | P2.976 | P3.91 | P2.604 | P2.976 | P3.91 | |
| Pixel Pitch | 1.5625mm | 1.95mm | 2.604mm | 2.976mm | 3.91mm | 2.604mm | 2.976mm | 3.91mm |
| Panel Size | 500x500mm / 500x1000mm | 500x500mm / 500x1000mm | 500x500mm / 500x1000mm | 500x500mm / 500x1000mm | 500x500mm / 500x1000mm | 500x500mm / 500x1000mm | 500x500mm / 500x1000mm | 500x500mm / 500x1000mm |
| Module Size | 250x250mm | 250x250mm | 250x250mm | 250x250mm | 250x250mm | 250x250mm | 250x250mm | 250x250mm |
| Panel Weight | 8 KG | 8 KG | 8 KG | 8 KG | 8 KG | 8 KG | 8 KG | 8 KG |

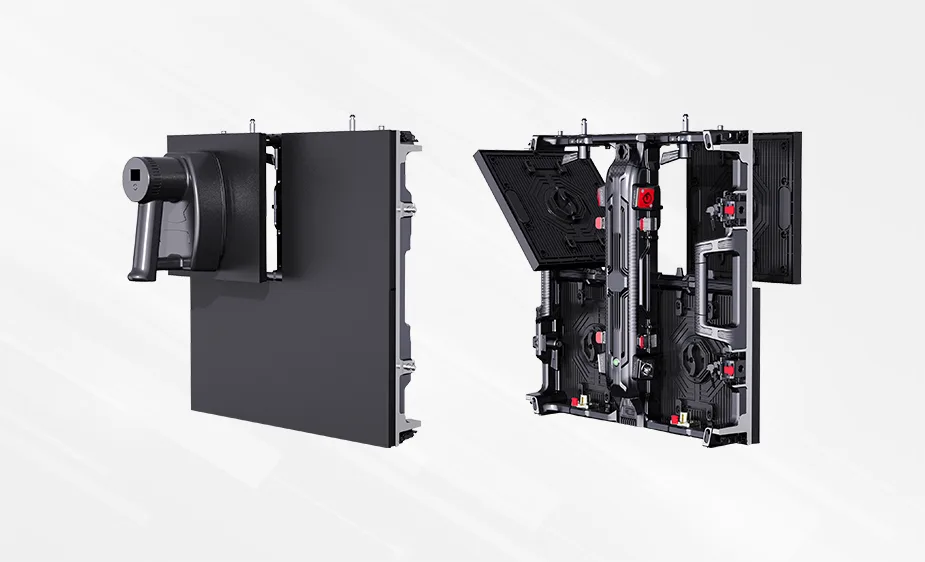

| Panel Maintenance | Module Front Service & Rear Service | Module Front Service & Rear Service | Module Front Service & Rear Service | Module Front Service & Rear Service | Module Front Service & Rear Service | Module Front Service & Rear Service | Module Front Service & Rear Service | Module Front Service & Rear Service |
