GA Series
Permanent Outdoor LED Built for Direct Sunlight
What Makes the GA Series Different
When the Display Has to Work Around the Clock
This series is built for permanent installations that run continuously: highway signage, retail facades, stadium perimeters, civic displays, anything expected to perform in direct sun year after year. At 10,000 nits, it holds full daylight legibility without washing out color, even in direct summer sun. A fully enclosed aluminum casing delivers IP65 protection without needing supplemental weatherproofing, and a passive cooling design removes the maintenance burden and failure risk that come with running air conditioning behind an outdoor display.
Gold Wire LEDs for Long-Term Reliability
Gold wire bonding in the LED package is known for better thermal performance and stronger corrosion resistance than standard bonding wire, a real advantage in outdoor environments where temperature swings and humidity put steady stress on LED components over years of continuous operation. Paired with a dual voltage power supply, this series is built to hold its specifications through the kind of extended service life a permanent outdoor install demands.
Five Pixel Pitches, One Panel Platform
Five pixel pitches, from P5.71 through P10, are built on the same standardized 960 x 960mm aluminum panel base. At P10, both SMD and DIP LED configurations are available. DIP delivers maximum outdoor brightness and durability for high-ambient environments, while SMD provides wider viewing angles and finer pitch for closer-viewing applications.
Smart Modules With Built-In Diagnostics
Each module stores its own calibration data and monitors temperature and voltage in real time, and the system can pinpoint a fault down to the specific port through signal analysis. Instead of a technician manually testing modules one by one to find a problem, the display flags the issue directly, cutting troubleshooting time down significantly on a large installation.

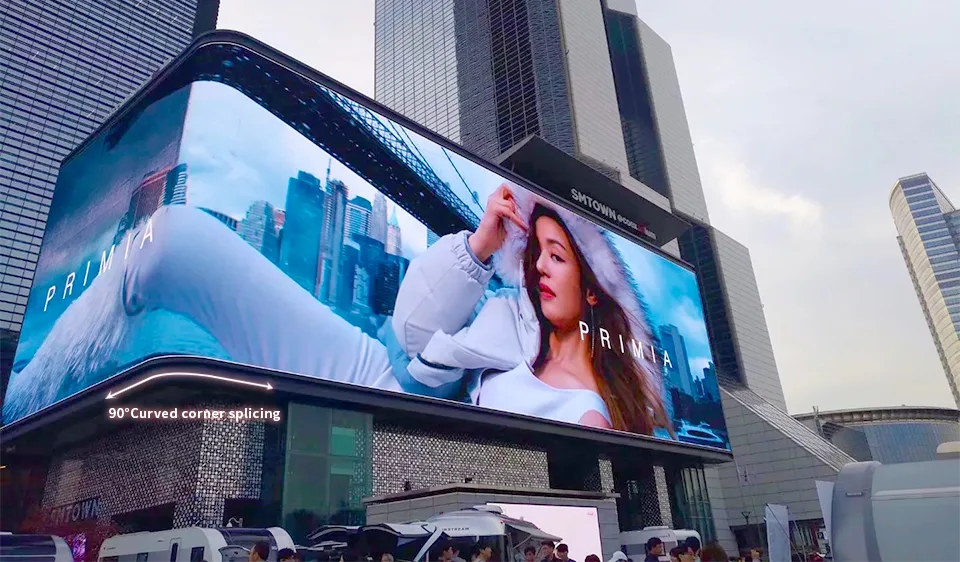

Naked-Eye 3D and Curved Configurations

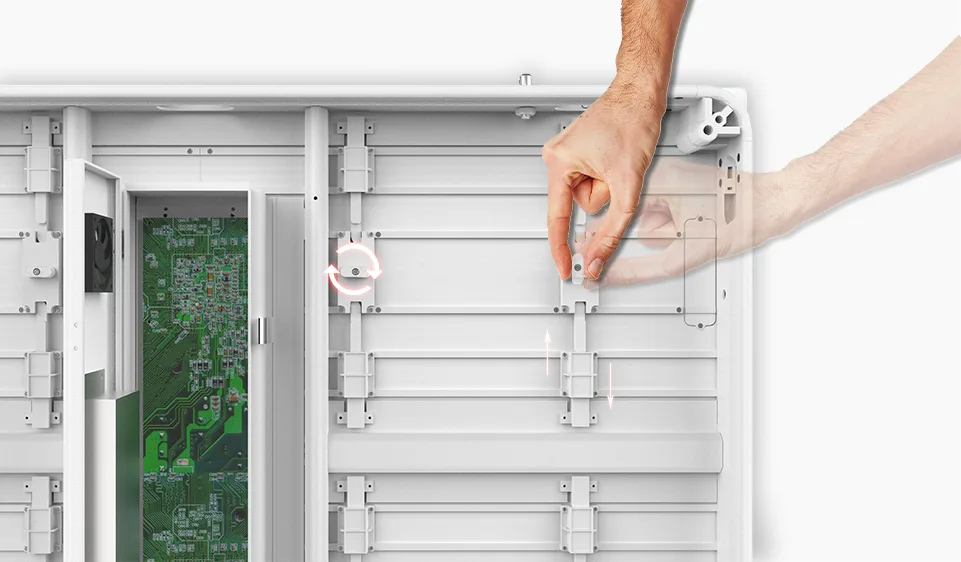

The panel supports curved layouts and true 90 degree corner assemblies, opening the door to naked-eye 3D content formats that have become a real draw for high-traffic commercial intersections. Front and rear maintenance access, combined with independently replaceable modules and power supplies, keeps the display serviceable from whichever side a project allows, with minimal disruption over its working life.
Every Display Includes Lifetime Benefits
Parts Warranty
Confidence in quality of construction & availability of replacement/repair parts
Lifetime Support
Contact our technical support team with any and all technical issues
Lifetime Cloud Access
Enjoy accessing your display(s) from anywhere and anytime
Lifetime Software
Viplex handy software included with all sign packages and displays
Easy Assembly
Simple plug and play modular panel for easy accessibility and troubleshooting
High Definition
Highest refresh rates in the industry with crystal clear images, text, and video content
Extreme Brightness
Outshine the sunshine with 10,000+ nits
Where the GA Series Shines
Digital billboards and highway signage, retail facades, double-sided signage, naked-eye 3D commercial displays, sports venues, transportation and civic infrastructure
Our Process
We have a simple, streamlined process once you have decided to purchase one of our Digital Displays.
Consultation & Survey
We review your site, define your sign program, and map every location, size, and mounting spec before design begins.
Design & Permitting
Certified shop drawings are produced and submitted for permit approval u2014 signed off by your team before production starts.
In-House Fabrication
Every sign is built in our own facility with in-house QC. No outsourcing means tighter quality and reliable lead times.
Installation & Sign-Off
Certified crews install every sign. We conduct a full walkthrough and provide documentation before handover.
GA Series Specifications
All specifications subject to change.
| Parameters | P5.71 | P6.67 | P8 | P10 SMD | P10 DIP |
|---|---|---|---|---|---|
| Pixel Pitch | 5.71mm | 6.67mm | 8mm | 10mm | 10mm |
| LED Type | SMD2727 | SMD2727 | SMD2727 | SMD2727 | DIP346 |
| Brightness | 10,000 nits | 10,000 nits | 10,000 nits | 10,000 nits | 10,000 nits |
| Scan Rate | 1/7 | 1/6 | 1/4 | 1/2 | 1/6 |
| Refresh Rate | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| Panel Size | 37.8in W x 37.8in H (960x960mm) | 37.8in W x 37.8in H (960x960mm) | 37.8in W x 37.8in H (960x960mm) | 37.8in W x 37.8in H (960x960mm) | 37.8in W x 37.8in H (960x960mm) |
| Panel Resolution (Pixel) | 168x168 | 168x168 | 120x120 | 96x96 | 96x96 |
| Module Size | 18.9in H x 12.6in W (480x320mm) | 18.9in H x 12.6in W (480x320mm) | 18.9in H x 12.6in W (480x320mm) | 18.9in H x 12.6in W (480x320mm) | 18.9in H x 12.6in W (480x320mm) |
| Panel Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Panel Weight | 67.3 lbs | 67.3 lbs | 67.3 lbs | 67.3 lbs | 73.9 lbs |
| Protection Level | IP65 | IP65 | IP65 | IP65 | IP65 |
| Max Power Consumption | 672W | 672W | 672W | 672W | 466W |
| Average Power Consumption | 336W | 336W | 336W | 336W | 233W |
| Grey Scale | 16-bit | 16-bit | 16-bit | 16-bit | 16-bit |
| Viewing Angle | H140, V140 | H140, V140 | H140, V140 | H140, V140 | H70, V140 |
| Working Temperature | -22F to +158F | -22F to +158F | -22F to +158F | -22F to +158F | -22F to +158F |
| Working Humidity | 10%-90% RH | 10%-90% RH | 10%-90% RH | 10%-90% RH | 10%-90% RH |
| Color Temperature | 6500-9500K | 6500-9500K | 6500-9500K | 6500-9500K | 6500-9500K |
| Input Voltage | 100-240V AC | 100-240V AC | 100-240V AC | 100-240V AC | 100-240V AC |
| Certifications | UL/EMC/CE/RoHS/CCC/FCC/BIS | UL/EMC/CE/RoHS/CCC/FCC/BIS | UL/EMC/CE/RoHS/CCC/FCC/BIS | UL/EMC/CE/RoHS/CCC/FCC/BIS | UL/EMC/CE/RoHS/CCC/FCC/BIS |
| Maintenance | Front and Rear Service | Front and Rear Service | Front and Rear Service | Front and Rear Service | Front and Rear Service |
| Curve Degrees | Curve / 90 Degree Angle Customizable | Curve / 90 Degree Angle Customizable | Curve / 90 Degree Angle Customizable | Curve / 90 Degree Angle Customizable | Curve / 90 Degree Angle Customizable |
