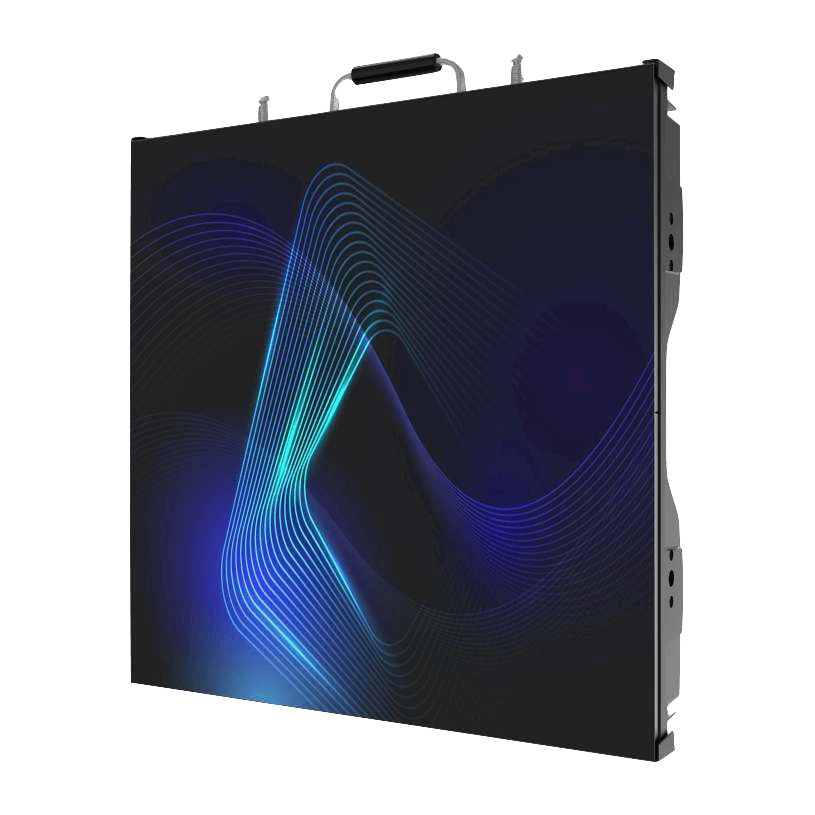

Ggalaxy Series
Fine-Pitch Permanent Indoor LED Display
What Makes the Ggalaxy Series Different
Permanent Indoor LED for Demanding Environments
The Ggalaxy Series is GCL's fine-pitch LED display for permanent indoor installations where image quality and long-term reliability are non-negotiable. Four pixel pitch options — P1.56 through P2.976 — cover close-viewing boardrooms through medium-distance lobbies and atriums.
GOB on Fine-Pitch Models
The P1.56 and P1.953 Ggalaxy panels use GOB (Glue-on-Board) technology, applying a protective layer directly over the LED surface. This makes the display resistant to impact, dust, and moisture — extending service life in environments where LED delicacy is a concern.
Front and Rear Service Access
Full front maintenance means modules, power supplies, and HUB cards are all accessible from the front face — no rear clearance requirement, no suspended ceiling disruption. Rear access is retained for installations where it's available and preferred.
Camera-Ready at 7680Hz
The 7680Hz refresh rate means Ggalaxy panels photograph and film cleanly without moiré, banding, or flicker correction. This makes them well-suited to broadcast studios, presentation spaces, and any environment where the display will appear on camera.
Compact, Lightweight Panels
At 17.6 lbs per panel with a 500×500mm footprint, Ggalaxy panels are manageable for two-person installation and compatible with standard LED rigging hardware. The consistent panel size across all four pixel pitches simplifies project planning and component management.
Every Display Includes Lifetime Benefits
7680Hz refresh rate for broadcast and camera-ready performance
GOB surface protection on P1.56 and P1.953 models
100% front and rear service access
no rear clearance required for front-service models
IP34 protection rating
Panel size: 500×500mm or 500×1000mm
17.6 lbs per panel
16-bit greyscale for smooth gradients and accurate color
UL/CE/FCC/RoHS certified
Where the Ggalaxy Series Shines
Broadcast studios, corporate boardrooms, command and control centers, high-end retail, museums, hospitality, conference venues
Ggalaxy Series Specifications
All specifications subject to change.
| Parameters | P1.56 | P1.953 | P2.604 | P2.976 |
|---|---|---|---|---|
| Pixel Pitch | 1.5625mm | 1.953mm | 2.604mm | 2.976mm |
| Assembly | GOB | GOB | — | — |
| LED Type | SMD1212 | SMD1212 | SMD1515 | SMD1515 |
| Brightness | 1000 nits | 1200 nits | 1200 nits | 1200 nits |
| Refresh Rate | 7680Hz | 7680Hz | 7680Hz | 7680Hz |
| Panel Size | 500×500mm | 500×500mm | 500×500mm | 500×500mm |
| Resolution (panel) | 320×320px | 256×256px | 192×192px | 168×168px |
| Panel Weight | 17.6 lbs | 17.6 lbs | 17.6 lbs | 17.6 lbs |
| Panel Maintenance | Front & Rear | Front & Rear | Front & Rear | Front & Rear |
| IP Rating | IP34 | IP34 | IP34 | IP34 |
| Viewing Angle | H160°, V160° | H160°, V160° | H160°, V160° | H160°, V160° |
| Grey Scale | 16-bit | 16-bit | 16-bit | 16-bit |
| Input Voltage | 100–240VAC | 100–240VAC | 100–240VAC | 100–240VAC |
| Operating Temp | –22°F to +149°F | –22°F to +149°F | –22°F to +149°F | –22°F to +149°F |
| Certifications | UL/CE/FCC/RoHS | UL/CE/FCC/RoHS | UL/CE/FCC/RoHS | UL/CE/FCC/RoHS |
