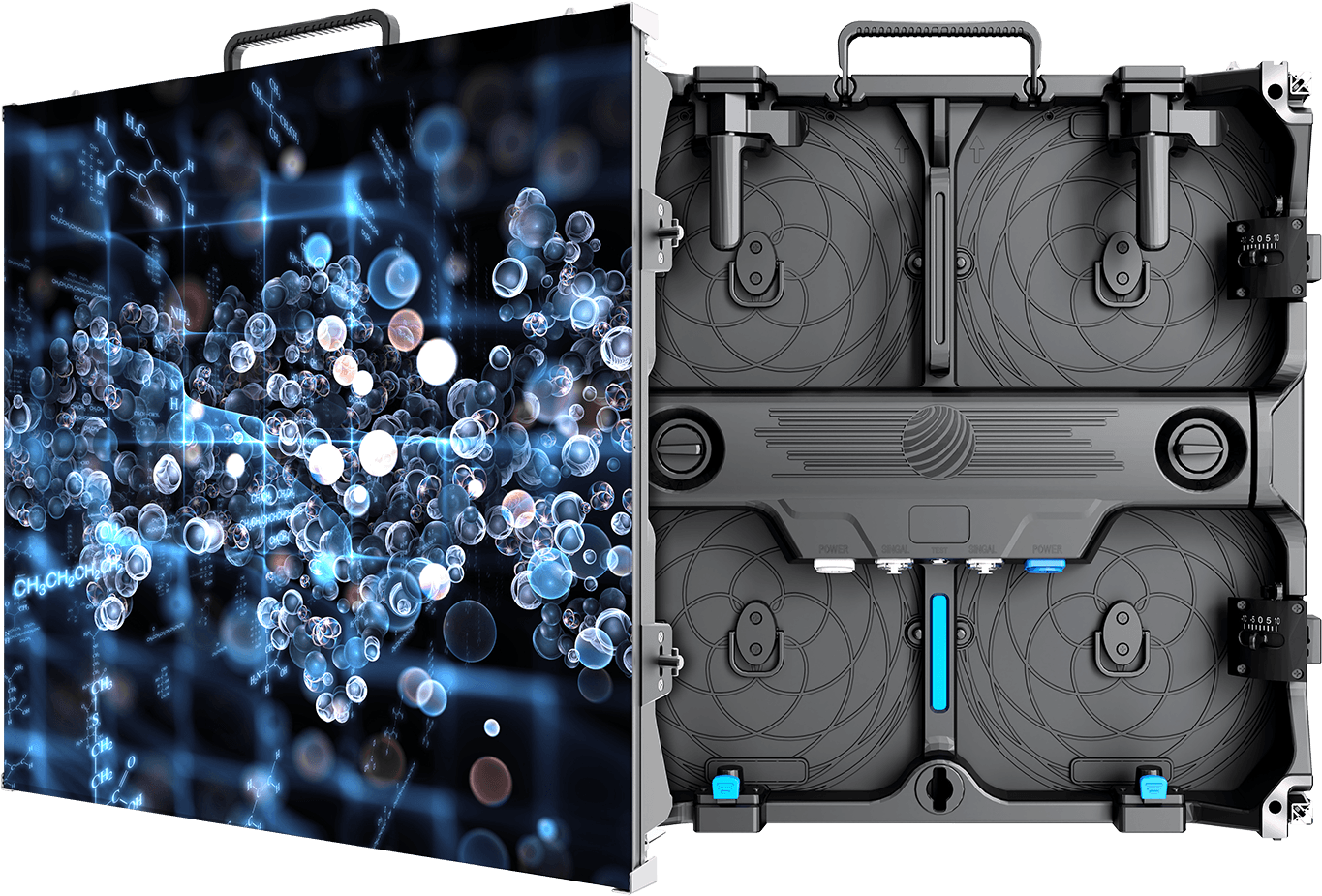

Gprime Series
Premium Rental LED Panel for Fast Deployment
What Makes the Gprime Series Different
Engineered for Fast Installs
The Gprime Series is built around a single constraint: deployment speed. The center-positioned handle lets one person carry and position each panel. The magnetic alignment system snaps panels into precise position, and the one-hand lock secures them without tools. A full stage can go up significantly faster than systems requiring two-person handling and alignment.
Wider Curve Range for Creative Staging
With –10° to +10° curve capability per panel, Gprime supports more aggressive arc configurations than standard rental LED. Curved surfaces, wraparound screens, and compound curve stage designs are achievable without custom hardware or structural compromises.
Universal Module Design
All four modules in each Gprime panel are identical — no top, bottom, left, or right orientation. Any module fits any position, which means field replacements require no matching or sorting. Stock one module type per pitch and cover any repair scenario.
Protected for Rental Realities
Anti-collision corner protection guards against the damage that accumulates across load-ins, load-outs, and freight runs. Fine-pitch models add GOB surface coating over the LED array, providing resistance to impact and contact that standard SMD panels can't match.
Quick-Release Power System
The dual-knob power box releases without tools, allowing power supply swaps in the field without disassembling the panel. Combined with the quick-release lock system, the Gprime is designed to minimize downtime whether the issue is a module, a power supply, or a panel-level fault.
Every Display Includes Lifetime Benefits
Center-positioned handle for single-person installation
One-hand lock system for rapid panel-to-panel connection
7680Hz refresh rate for broadcast-quality, camera-ready performance
–10° to +10° curve capability per panel
GOB surface protection on fine-pitch models
Magnetic alignment system for quick positioning
Universal panel design
all four modules identical, no orientation difference
Front-removable modules for in-rig maintenance
Anti-collision corner protection for transport
Dual-knob quick-release power box
16-bit greyscale, 1200-nit brightness
UL/CE/FCC/RoHS certified
Where the Gprime Series Shines
Touring productions, concerts, trade shows, corporate events, large-scale staging, indoor LED displays
Gprime Series Specifications
All specifications subject to change.
| Parameters | P1.56 | P1.953 | P1.953 XR | P2.6 | P2.6 XR |
|---|---|---|---|---|---|
| Pixel Pitch | 1.5625mm | 1.953mm | 1.953mm | 2.604mm | 2.604mm |
| Assembly | GOB | GOB | GOB | — | — |
| LED Type | SMD1212 | SMD1212 | SMD1515 | SMD1515 | SMD1515 |
| Brightness | 1000 nits | 1200 nits | 1200 nits | 1200 nits | 1200 nits |
| Scan Rate | 1/20 | 1/16 | 1/8 | 1/16 | 1/8 |
| Refresh Rate | 7680Hz | 7680Hz | 7680Hz | 7680Hz | 7680Hz |
| Panel Size | 500×500mm | 500×500mm | 500×500mm | 500×500mm | 500×500mm |
| Resolution (panel) | 320×320px | 256×256px | 256×256px | 192×192px | 192×192px |
| Panel Weight | 15.4 lbs | 15.4 lbs | 15.4 lbs | 15.4 lbs | 15.4 lbs |
| IP Rating | IP34 | IP34 | IP34 | IP34 | IP34 |
| Max Power | 143W | 143W | 143W | 143W | 143W |
| Avg Power | 71.5W | 71.5W | 71.5W | 71.5W | 71.5W |
| Grey Scale | 16-bit | 16-bit | 16-bit | 16-bit | 16-bit |
| Viewing Angle | H160°, V160° | H160°, V160° | H160°, V160° | H160°, V160° | H160°, V160° |
| Curve Range | –10° to +10° | –10° to +10° | –10° to +10° | –10° to +10° | –10° to +10° |
| Input Voltage | 100–240VAC | 100–240VAC | 100–240VAC | 100–240VAC | 100–240VAC |
| Operating Temp | –22°F to +149°F | –22°F to +149°F | –22°F to +149°F | –22°F to +149°F | –22°F to +149°F |
| Color Temp | 6500–9500K | 6500–9500K | 6500–9500K | 6500–9500K | 6500–9500K |
| Certifications | UL/CE/FCC/RoHS | UL/CE/FCC/RoHS | UL/CE/FCC/RoHS | UL/CE/FCC/RoHS | UL/CE/FCC/RoHS |
