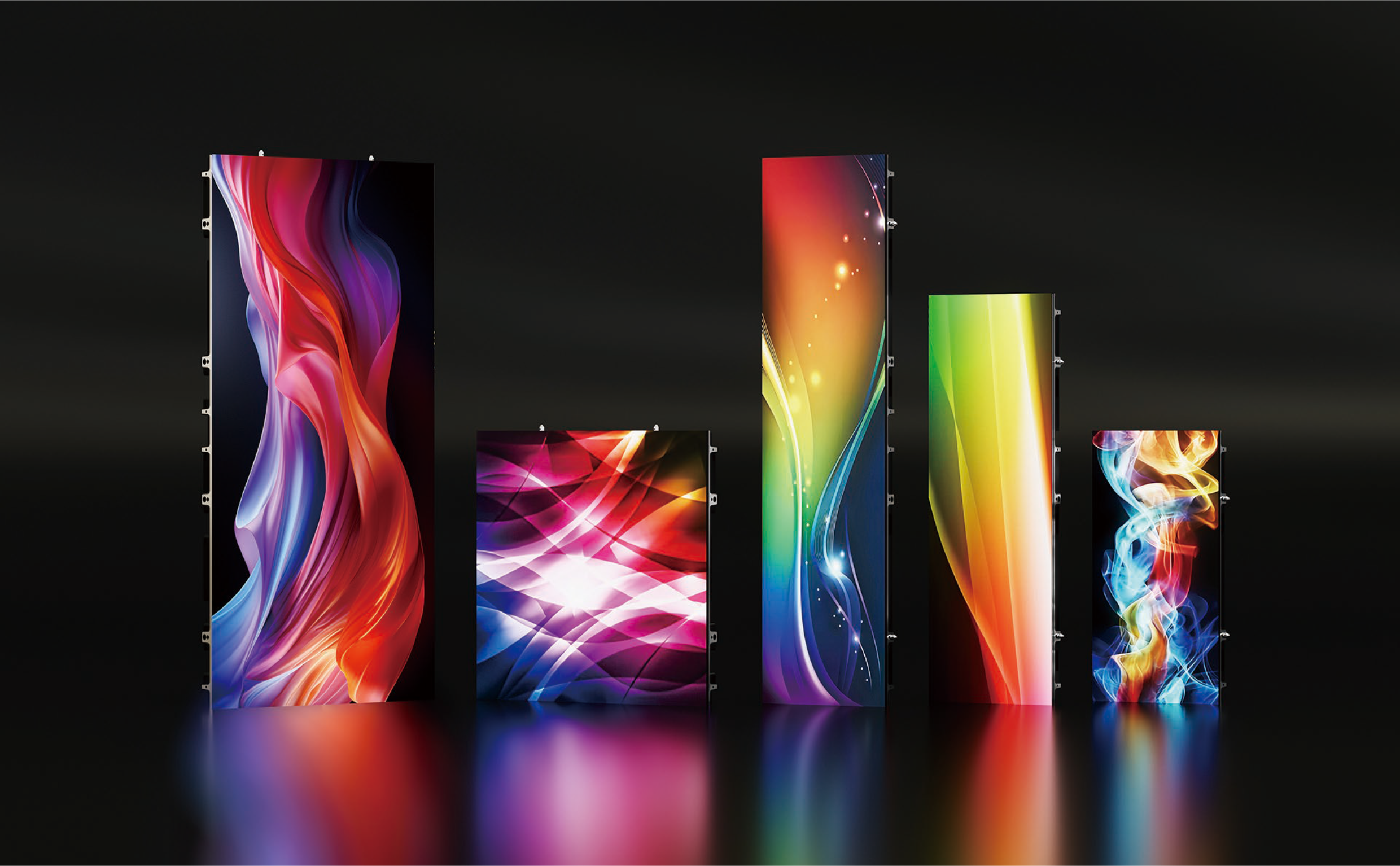

US-Omni
OMNI Indoor LED Display, Built for Any Shape You Need
What Makes the US-Omni Different

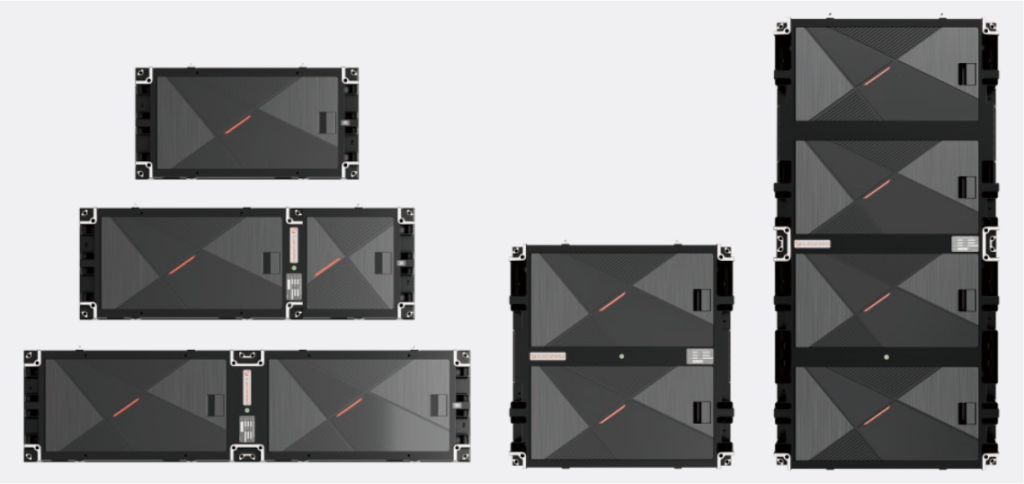

Flexible Display, Infinite Possibilities
OMNI is an indoor display solution built around one idea, that a client's layout shouldn't have to bend around the hardware. Cabinets come in multiple sizes and support several installation methods, and units of different sizes interlock into a single configuration rather than sitting in one fixed grid. That range of combinations is what makes OMNI fit retail floors, transportation hubs, and general signage work equally well, and it gives whoever's designing the content a platform that holds up under both plain and demanding use.

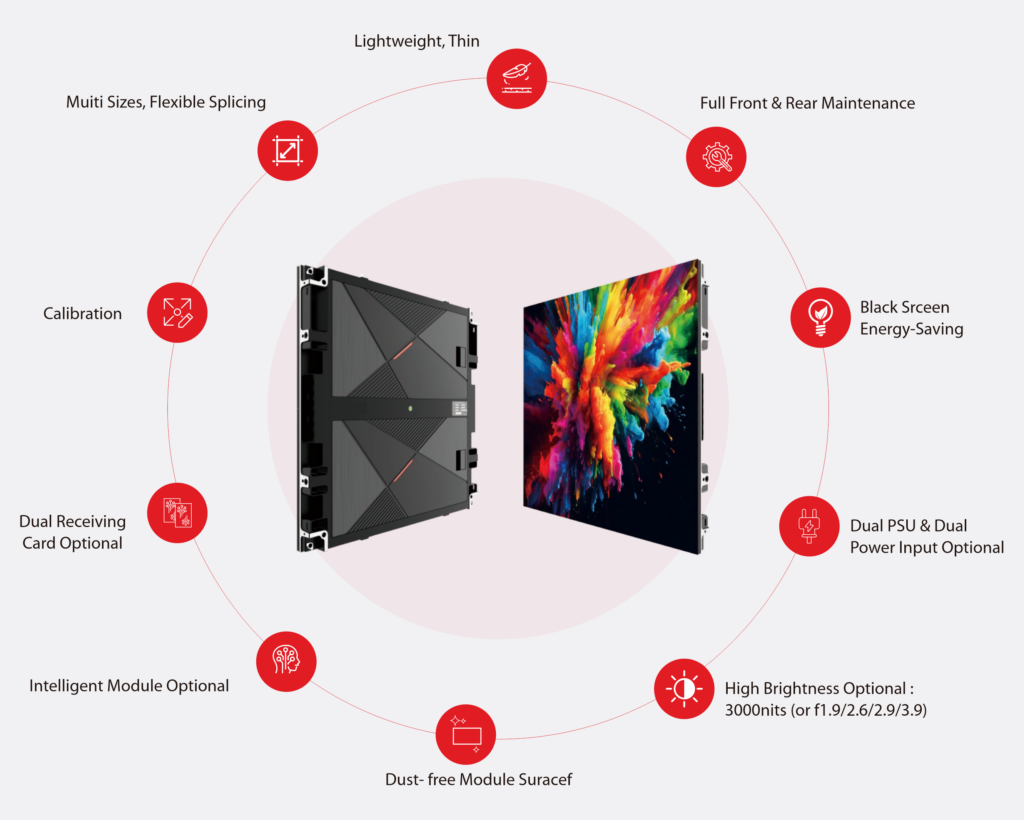

Product Features at a Glance
A few things come standard across every OMNI configuration. The cabinets are thin and light. Maintenance runs from the front or the back. There's a black screen mode for energy saving when content isn't running. Optional upgrades include dual PSU with dual power input, a dual receiving card, an intelligent module with built-in diagnostics, and a dust-resistant module surface. Calibration is supported out of the box, and the splicing system stays flexible across all five cabinet sizes. None of these require a different product line, they're part of the same base system.

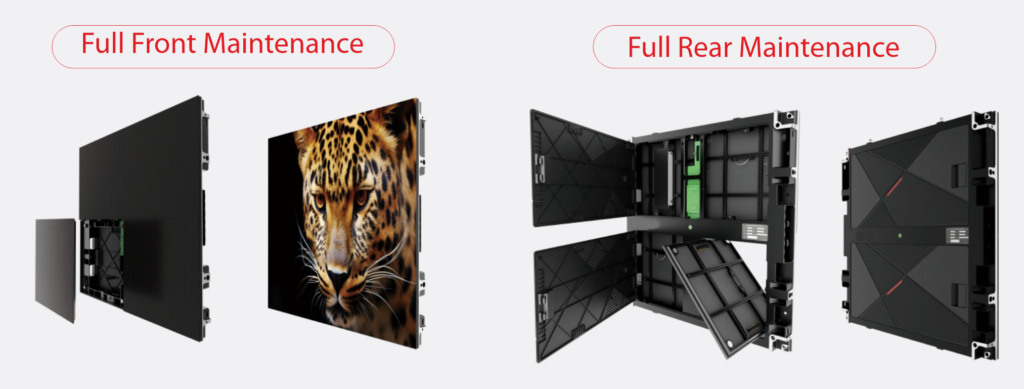

Convenient Front and Rear Maintenance
Every OMNI cabinet gives technicians access from either side. Full front maintenance means a module can be unlatched and swapped without ever reaching behind the wall, which matters when there's no rear access at all, a lobby installation set flush against drywall, for instance. Full rear maintenance opens the cabinet from the back, exposing the module frame and power supply directly for anyone servicing from behind. Either way, one module comes out without disturbing the rest of the wall, which keeps servicing fast and downtime short.

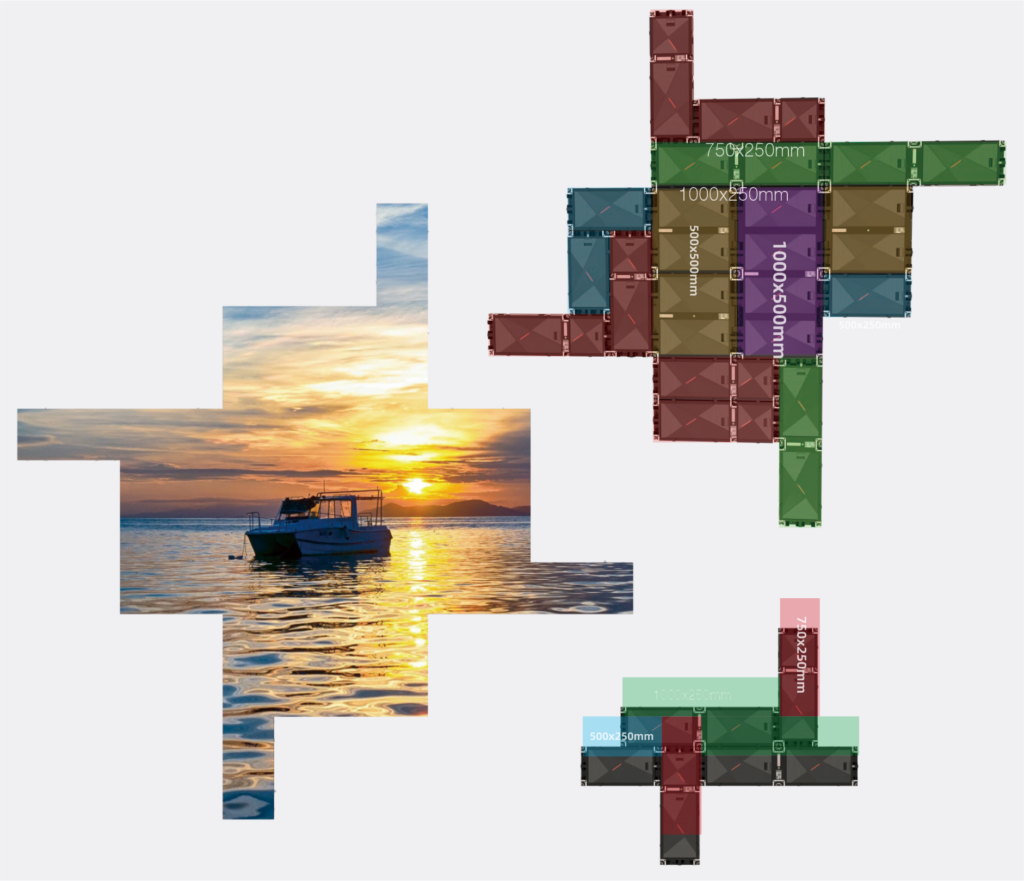

Multiple Sizes, Free Splicing
Five cabinet sizes, 500x250, 500x500, 750x250, 1000x250, and 1000x500mm, can be spliced together freely within the same display. Misaligned and rotated installs are supported too, which means the shapes possible with OMNI go well beyond a standard rectangle. A designer isn't stuck fitting a layout to whatever cabinet size is on hand, the cabinets adjust to the layout instead.

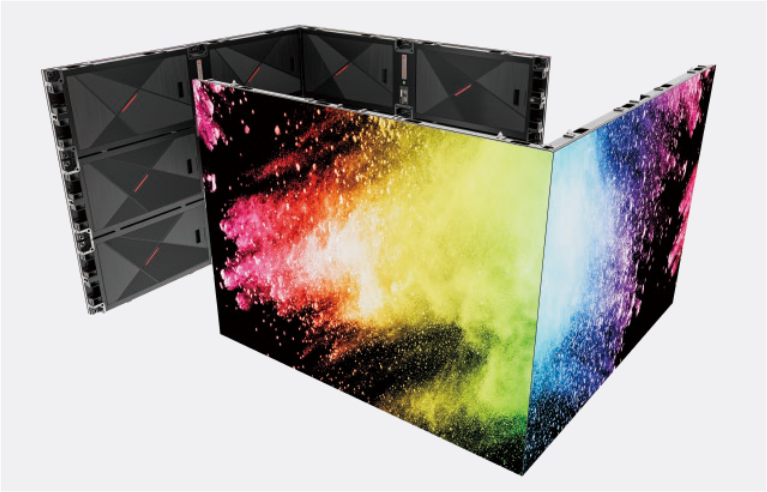

Right Angle Splicing, L Shape
Right-angle splicing lets two panels meet at a clean 90-degree corner, joining like a hinge in a single unbroken run. There's no gap or seam breaking up the image, so a display can wrap around a corner without needing a separate structure to hold it. It's the kind of setup that opens up spatial layouts a flat wall can't, entryways, corner displays, anywhere the room itself has an angle.

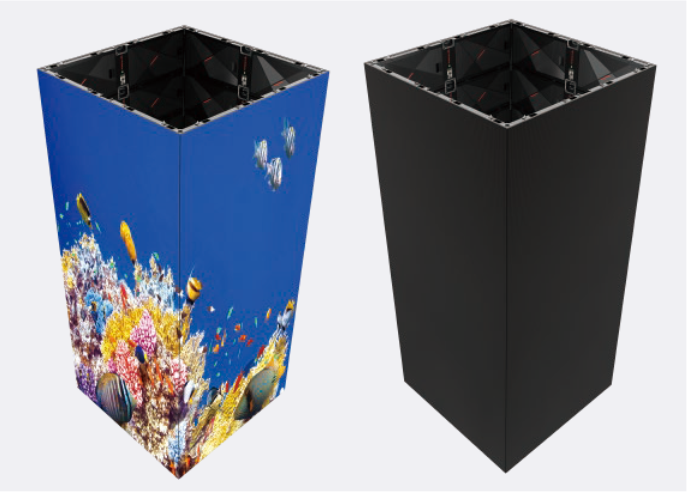

Right Angle Splicing, Column
The same right-angle hinge that builds an L shape can also close into a full box. Four panels join edge to edge and form a freestanding column, viewable from all sides. It's a different kind of display entirely, not a wall people look at from one direction, but a piece that works in open floor space and gets seen from every angle someone walks past it.

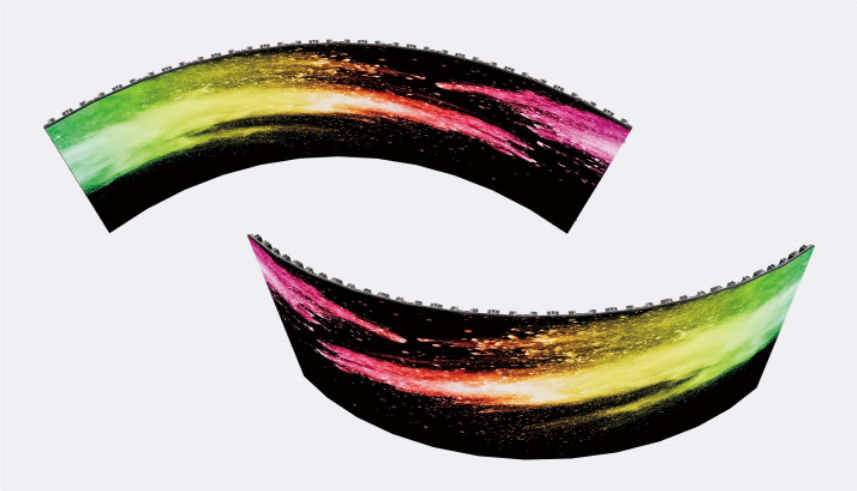

Concave and Convex Curves
OMNI bends inward or outward without losing panel alignment. Curved splicing supports both directions, so a display can wrap around a pillar, follow a rounded storefront, or arc overhead, whatever the space calls for. It's built for layouts where a flat surface isn't an option to begin with, and where the curve itself becomes part of what makes the display worth looking at.

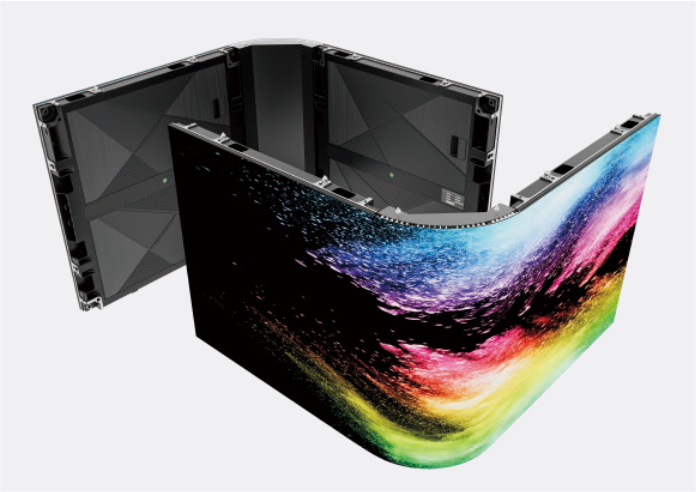

Flexible Module, Custom Shapes
Beyond right angles and curves, the module itself is flexible enough to take on shapes that don't fit a standard category. It's built for the installs where a client wants something no off-the-shelf configuration covers, an artistic centerpiece, an unconventional storefront feature, anything where the display needs to be as much a design object as a screen.

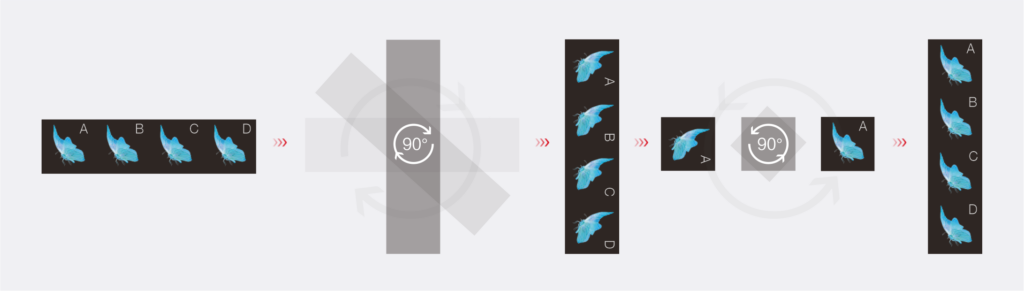

Rotatable Installation
The 250x1000, 250x750, and 250x500mm cabinets aren't locked to one orientation. Rotate the cabinet 90 degrees clockwise, then rotate the LED modules 90 degrees counterclockwise, and the same hardware runs vertically instead of horizontally. It's a two-step process built into the cabinet, not a separate SKU. For narrow columns, tall entryways, or any layout calling for a vertical run, one product line covers both directions.

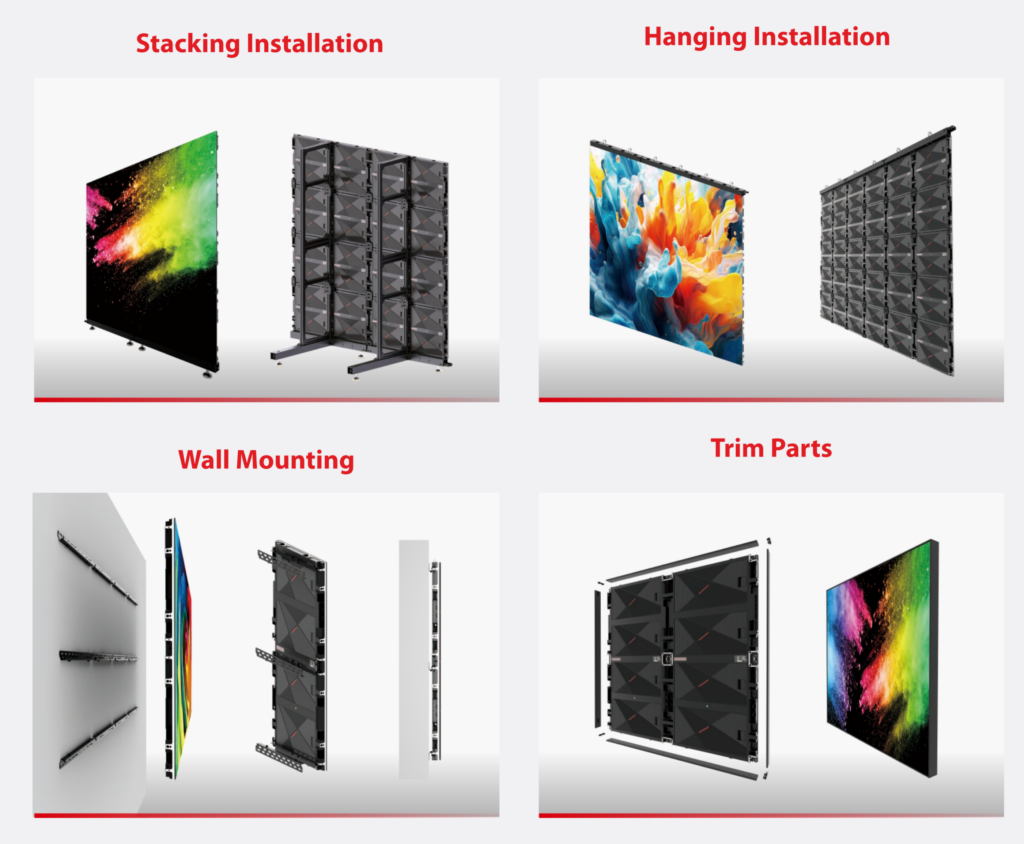

Versatile Mounting, Limitless Display Options
OMNI doesn't force one install method. Stack cabinets vertically for a freestanding wall. Hang them from overhead rigging when floor space is limited. Fix them flat to an existing wall for a slimmer footprint. Where the edges need to disappear, trim parts close the gap between the display and the surrounding surface for a finished edge instead of a visible seam.
Every Display Includes Lifetime Benefits
Parts Warranty
We stand by what we build. Replacement parts are available.
Lifetime Support
Whether it's been a month or a few years, our support team is reachable by phone or message.
Lifetime Cloud Access
Pull up your display remotely from any device. No subscription needed and no access window. It's open whenever you are.
Lifetime Software
Viplex is included and licensed for the life of the display. Once it's yours, it stays yours.
Easy Assembly
The modular design is built for straightforward setup. No specialized crew required for maintenance or adjustments.
High Definition
Among the highest refresh rates in the industry, the image quality holds with sharp text, clear visuals, and video that plays properly.
Extreme Brightness
10,000+ nits puts this display well above what direct sunlight can compete with. Full daylight, no visibility issues.
Training
From the first day of operation to routine upkeep, we make sure your team understands the display thoroughly before we wrap up.
Multiple Communication Options
Wired, Wi-Fi, or cellular, you decide what fits. All three options are under the contract and covered for the display's full lifespan.
60 FPS
Full-motion content at 60 frames per second. Smooth, clean playback with no dropped frames.
Trillions of Colors
24-bit color depth keeps your content looking exactly as it was made. Accurate color, true to the original, every time.
Unlimited Software Seats/Licenses
All three portals, Creative Library, Custom Content, and Corporate Creative, are included for your whole team with no seat restrictions or added costs.
Our Process
We have a simple, streamlined process once you have decided to purchase one of our Digital Displays.
Consultation & Survey
We review your site, define your sign program, and map every location, size, and mounting spec before design begins.
Design & Permitting
Certified shop drawings are produced and submitted for permit approval - signed off by your team before production starts.
In-House Fabrication
Every sign is built in our own facility with in-house QC. No outsourcing means tighter quality and reliable lead times.
Installation & Sign-Off
Certified crews install every sign. We conduct a full walkthrough and provide documentation before handover.
US-Omni Specifications
All specifications subject to change.
| Parameters | OMNI 1.2 | OMNI 1.5 | OMNI 1.9 | OMNI 2.6 | OMNI 2.9 | OMNI 3.9 |
|---|---|---|---|---|---|---|
| LED Package | SMD | SMD | SMD | SMD | SMD | SMD |
| Pixel Pitch (mm) | 1.25 | 1.5625 | 1.953 | 2.604 | 2.907 | 3.906 |
| Module Resolution | 200x200 | 160x160 | 128x128 | 96x96 | 84x84 | 64x64 |
| Module Size (mm) | 250x250 | 250x250 | 250x250 | 250x250 | 250x250 | 250x250 |
| PixelDensity (Point/mu00b2) | 640,000 | 409,600 | 262,144 | 147,456 | 112,896 | 65,536 |
| Cabinet Dimension (WxHxD)mm | 250x500x39.5, 250x750x39.5, 250x1000x39.5, 500X250x39.5, 750X250x39.5, 1000X250x39.5, 500X500X39.5 | 250x500x39.5, 250x750x39.5, 250x1000x39.5, 500X250x39.5, 750X250x39.5, 1000X250x39.5, 500X500X39.5 | 250x500x39.5, 250x750x39.5, 250x1000x39.5, 500X250x39.5, 750X250x39.5, 1000X250x39.5, 500X500X39.5 | 250x500x39.5, 250x750x39.5,, 250x1000x39.5, 500X250x39.5, 750X250x39.5, 1000X250x39.5, 500X500X39.5, 500X1000x39.5 | 250x500x39.5, 250x750x39.5,, 250x1000x39.5, 500X250x39.5, 750X250x39.5, 1000X250x39.5, 500X500X39.5, 500X1000x39.5 | 250x500x39.5, 250x750x39.5,, 250x1000x39.5, 500X250x39.5, 750X250x39.5, 1000X250x39.5, 500X500X39.5, 500X1000x39.5 |
| Weight per sqm (Kg) | 20 | 20 | 20 | 20 | 20 | 20 |
| Cabinet Material | Die casting aluminum | Die casting aluminum | Die casting aluminum | Die casting aluminum | Die casting aluminum | Die casting aluminum |
| Protection Level | IP30 | IP30 | IP30 | IP30 | IP30 | IP30 |
| Brightness Max Calibrated (nit) | 600 | 600 | 1000 | 1000 | 800 | 800 |
| Color Temperature, Adjustable (K) | 3000 to 10000 | 3000 to 10000 | 3000 to 10000 | 3000 to 10000 | 3000 to 10000 | 3000 to 10000 |
| Viewing Angle (Horizontal)u00b0 | 160 | 160 | 160 | 160 | 160 | 160 |
| Viewing Angle (Vertical)u00b0 | 140 | 140 | 140 | 140 | 140 | 140 |
| Contrast Ratio | 4000:1 | 4000:1 | 4000:1 | 4000:1 | 4000:1 | 4000:1 |
| AC Operation Voltage | AC100~240V(50/60Hz) | AC100~240V(50/60Hz) | AC100~240V(50/60Hz) | AC100~240V(50/60Hz) | AC100~240V(50/60Hz) | AC100~240V(50/60Hz) |
| Max Power Consumption (W/mu00b2) | 480 | 480 | 560 | 560 | 560 | 560 |
| Average Power Consumption (W/mu00b2) | 160 | 160 | 187 | 187 | 187 | 187 |
| Grayscale (bits) | 14 | 14 | 14 | 14 | 14 | 14 |
| Refresh Rate (Hz) | 3840 | 3840 | 7680 | 7680 | 7680 | 7680 |
| Frame Rate (Hz) | 50&60 | 50&60 | 50&60 | 50&60 | 50&60 | 50&60 |
| Lifetime (hrs) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| Installation Access | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| Module Maintenance | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| PSU & Others Maintenance | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| Operating Temperature (u2070C) | -20~40 | -20~40 | -20~40 | -20~40 | -20~40 | -20~40 |
| Storage Temperature (u2070C) | -30~60 | -30~60 | -30~60 | -30~60 | -30~60 | -30~60 |
| Operating Humidity (%RH) | 10~80% | 10~80% | 10~80% | 10~80% | 10~80% | 10~80% |
| Storage Humidity (%RH) | 10~85% | 10~85% | 10~85% | 10~85% | 10~85% | 10~85% |
