US-C-Pad

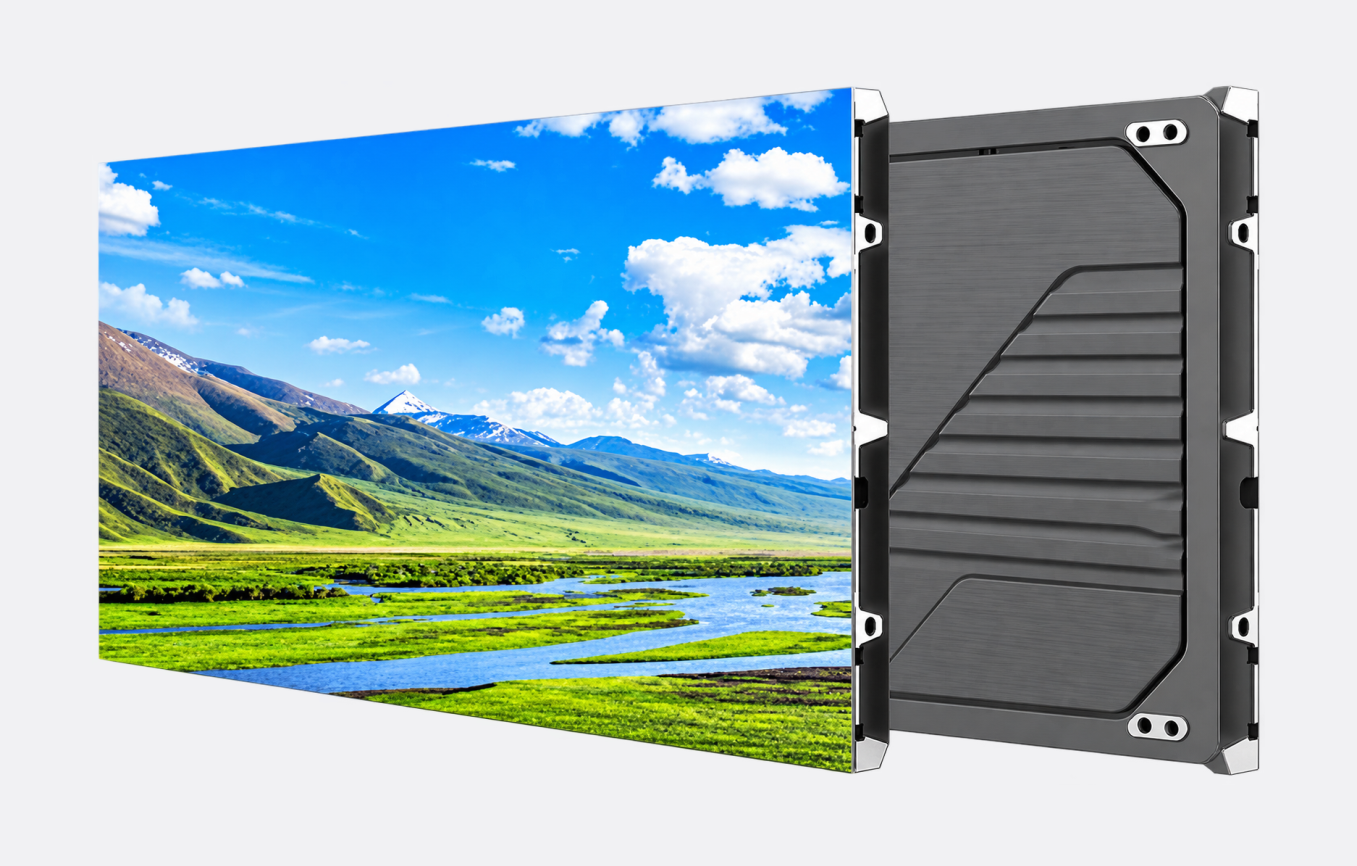

C-Pad-C Indoor LED HD Display
What Makes the US-C-Pad Different
Indoor LED HD Display u2013 C-Pad-C

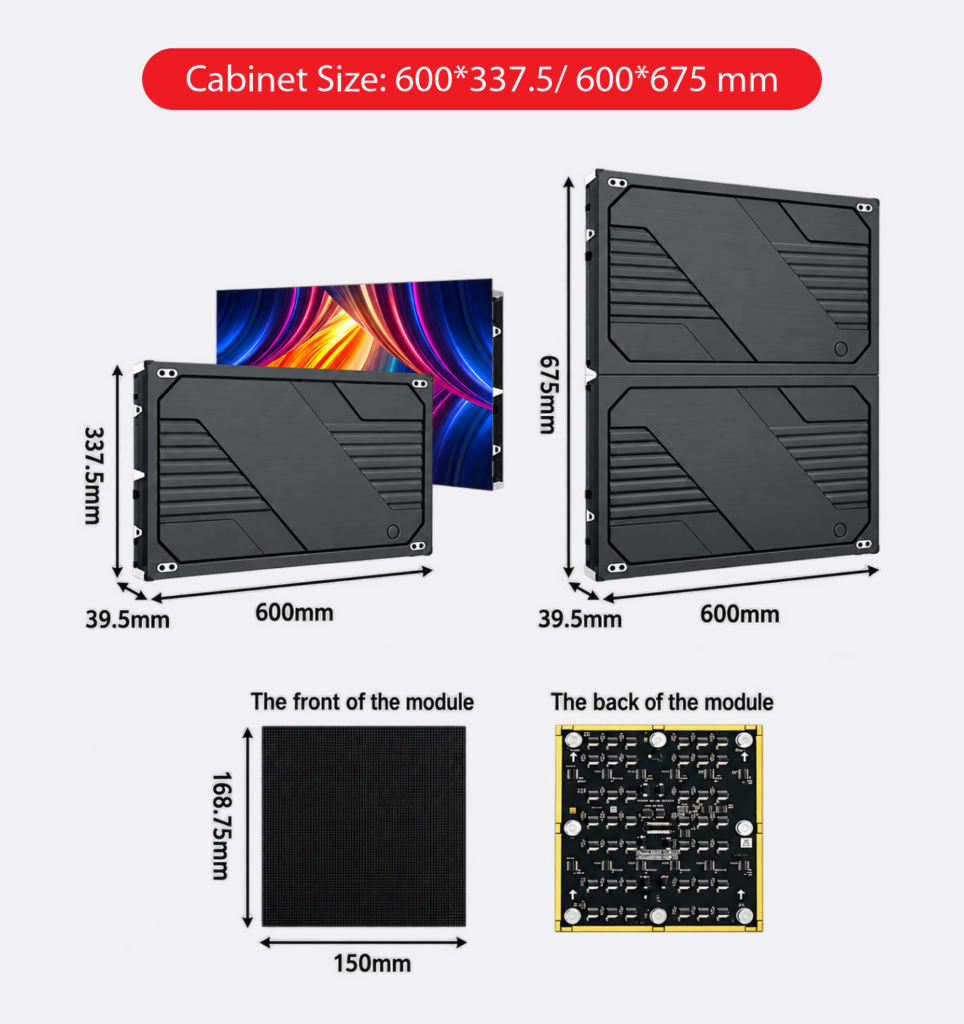

Indoor LED HD Display, model C-Pad-C, is built with COB modules for stable, high definition indoor display. The cabinet is moisture proof, anti-collision, and features a scrubable lamp surface that can be wiped clean without damage. Cabinet size: 600337.5mm / 600675mm.

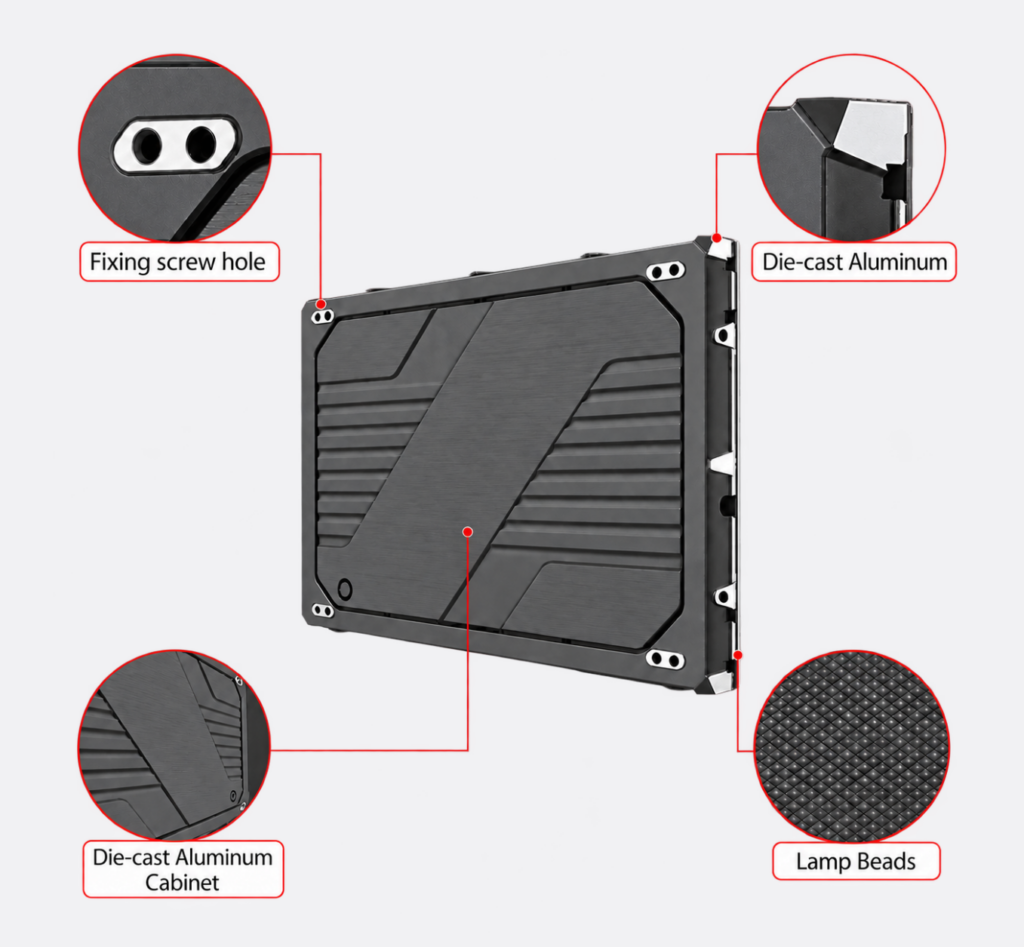

Product Details
The C-Pad-C cabinet is built with a die-cast aluminum body and frame for a strong, lightweight structure that holds its shape over long-term use. Fixing screw holes allows secure mounting and quick installation. The lamp beads are evenly arranged across the surface for consistent brightness and color, and the die-cast aluminum cabinet construction supports stable heat dissipation to keep the display running reliably.

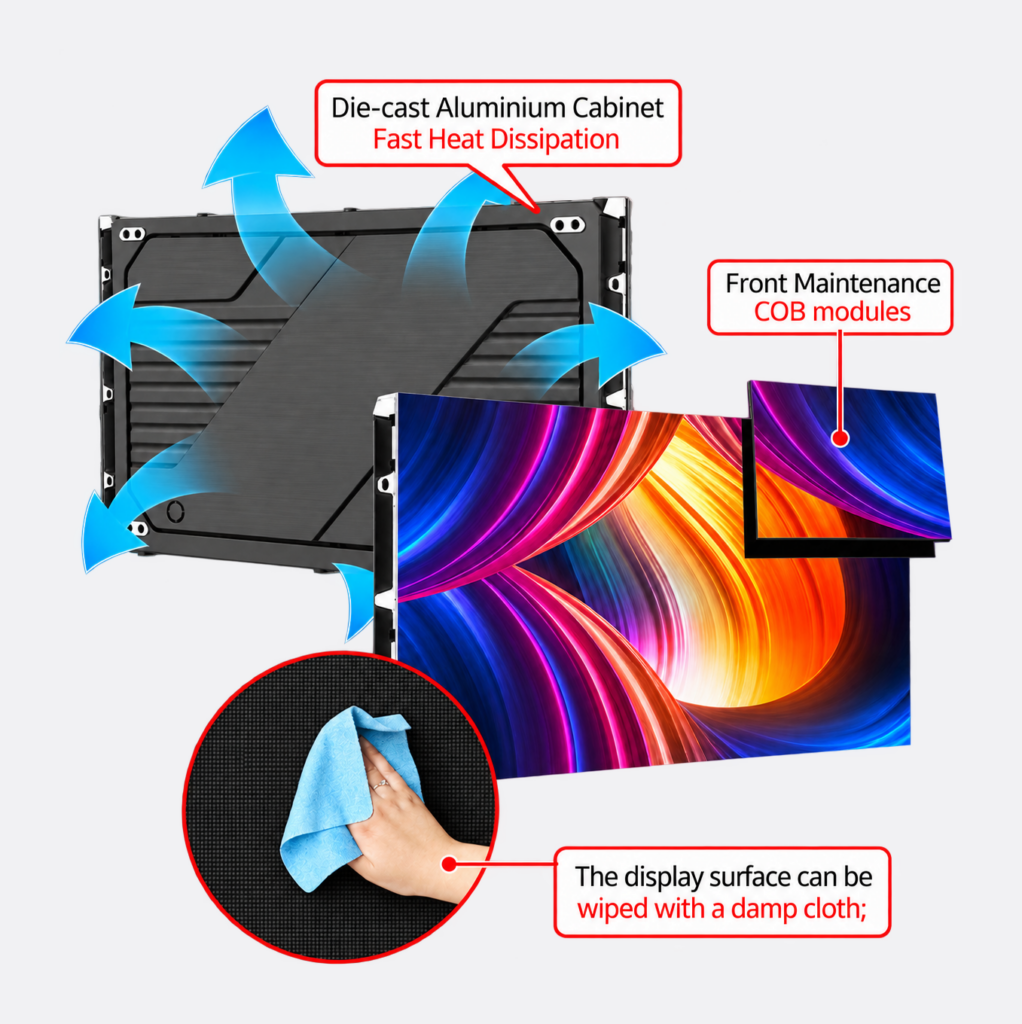

High Reliability
COB modules with die-cast aluminium cabinets support fast heat dissipation, moisture-proof performance, and anti-collision protection, helping extend the service life of the chip while keeping power consumption low. The modules allow front maintenance for easy access, and the display surface can be cleaned with just a damp cloth.

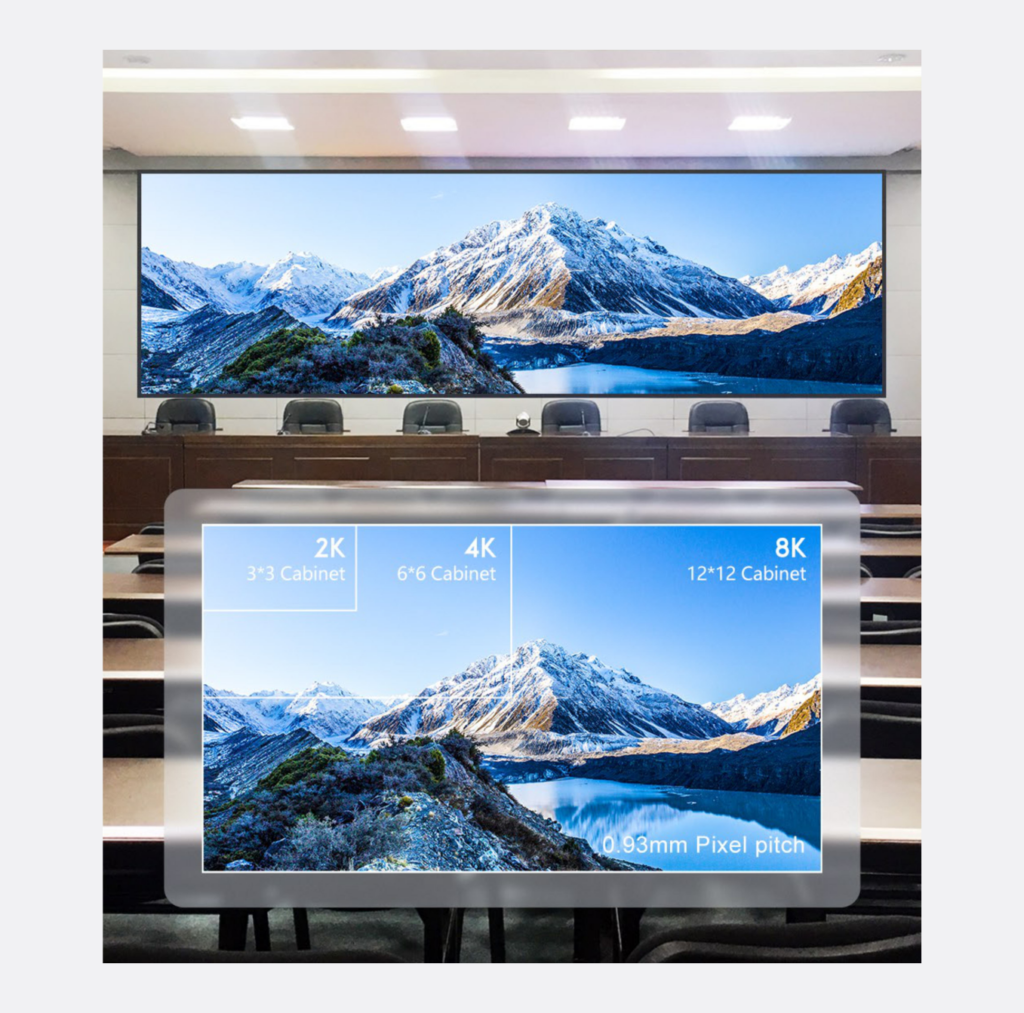

Good Consistency
The panels assemble seamlessly for a smooth, unified display, giving good consistency across the full screen. Available in 2K (33 cabinet), 4K (66 cabinet), and 8K (12*12 cabinet) configurations at 0.93 mm pixel pitch, suited for conference rooms and similar indoor spaces.

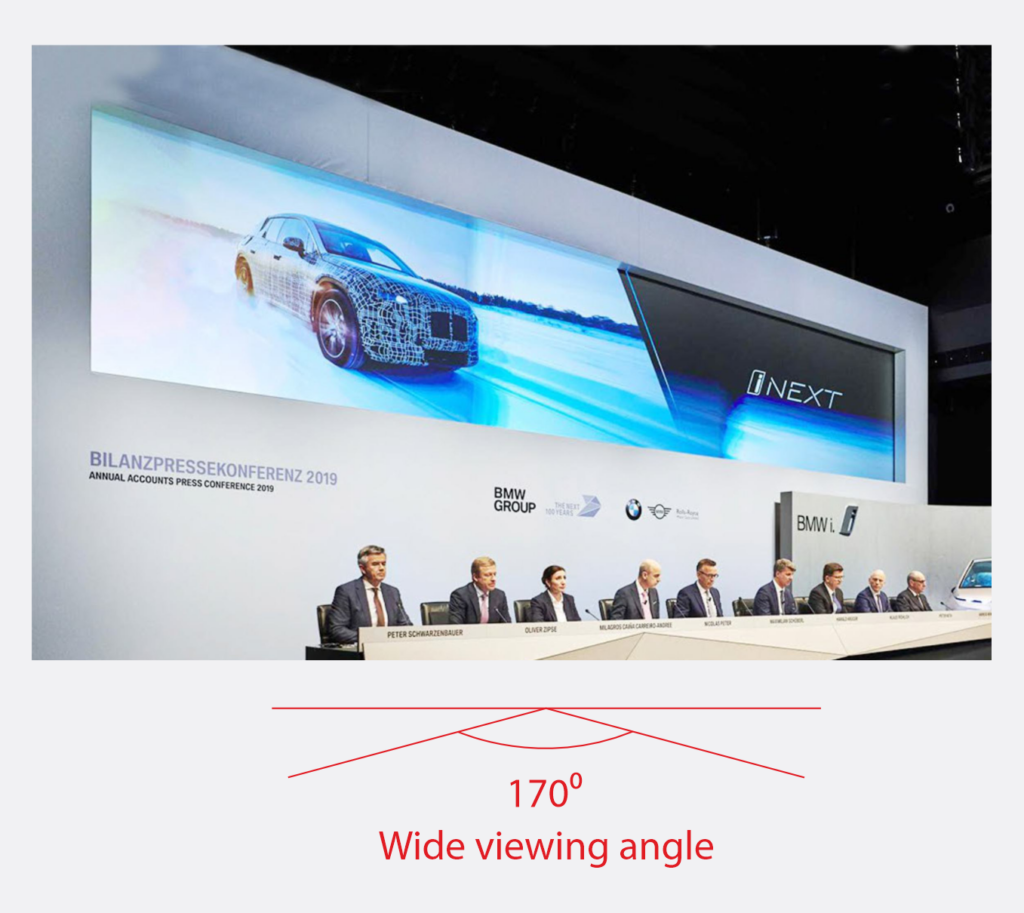

Wide Viewing Angel
With a 170u00b0 ultra-large horizontal and vertical viewing angle, the display delivers a wide color gamut and high sharpness for a soft, non-dazzling image from virtually any position in the room, well suited for conferences, press events, and large audience settings.

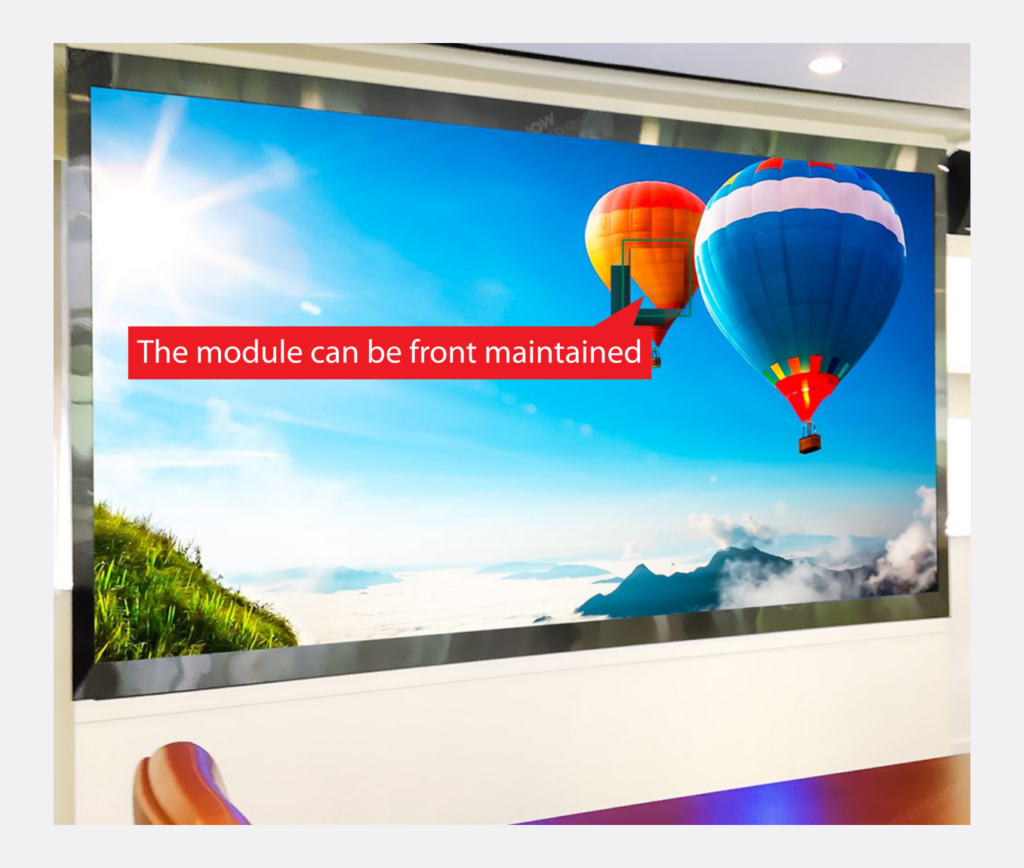

Magnetic Module
The magnetic module can be quickly assembled and disassembled from the front, allowing easy front maintenance without removing the whole panel. It also supports wall-mounted installation to save space.

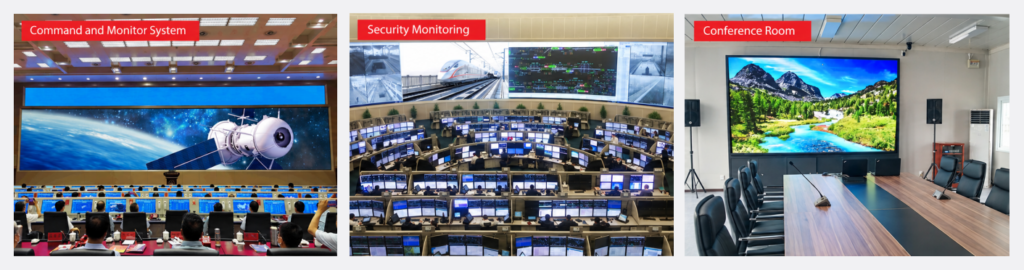

Application Scenes
Widely used across professional settings such as command and monitor systems, security monitoring, conference rooms, museums, display halls, industrial design, and exhibitions, wherever HD imaging is needed. From control rooms tracking live data to conference spaces displaying HD visuals, the display adapts to the demands of each environment.
Every Display Includes Lifetime Benefits
Parts Warranty
Confidence in quality of construction & availability of replacement/repair parts
Lifetime Support
Contact our technical support team with any and all technical issues
Lifetime Cloud Access
Enjoy accessing your display(s) from anywhere and anytime
Lifetime Software
Viplex handy software included with all sign packages and displays
Easy Assembly
Simple plug and play modular panel for easy accessibility and troubleshooting
High Definition
Highest refresh rates in the industry with crystal clear images, text, and video content
Extreme Brightness
Outshine the sunshine with 10,000+ nits of brightness
Training
We provide training on all aspects of the sign from maintenance to daily use
Multiple Communication Options
Hardwired, WiFi Modern, or Cellular Modem with a lifetime contract
60 FPS
Smooth full-motion video at 60 frames per second
Trillion of Colors
Full 24-bit color depth for lifelike, accurate color reproduction
Unlimited Software Seats/Licenses
Creative Library, Custom Content available, Corporate creative content portals
Where the US-C-Pad Shines
Widely applied to professional applications such as security monitoring, command and monitor systems, conference rooms, museums, displays, industrial design, and exhibitions where HD images are essential.
US-C-Pad Videos
Our Process
We have a simple, streamlined process once you have decided to purchase one of our Digital Displays.
Consultation & Survey
We review your site, define your sign program, and map every location, size, and mounting spec before design begins.
Design & Permitting
Certified shop drawings are produced and submitted for permit approval u2014 signed off by your team before production starts.
In-House Fabrication
Every sign is built in our own facility with in-house QC. No outsourcing means tighter quality and reliable lead times.
Installation & Sign-Off
Certified crews install every sign. We conduct a full walkthrough and provide documentation before handover.
US-C-Pad Specifications
All specifications subject to change.
| Parameters | C-Pad 0.9 | C-Pad 1.2 | C-Pad 1.5 | C-Pad 1.87 |
|---|---|---|---|---|
| Pixel Pitch (mm) | 0.93 | 1.25 | 1.56 | 1.875 |
| Pixel Density (dots/mu00b2) | 1,137,777 | 640,000 | 409,600 | 284,444 |
| LED Encapsulation | Inverted COB | Inverted COB | Inverted COB | Inverted COB |
| Driving Method | 54scan | 60scan | 54scan | 40scan |
| Resolution of Module (dot) | 160*180 | 120*135 | 96*108 | 80*90 |
| Module Size (mm) | 150*168.75 | 150*168.75 | 150*168.75 | 150*168.75 |
| Module Consumption(w) | 10 | 9 | 9 | 8 |
| Working Voltage(v) | 2.8/3.8 | 4.2 | 4.2 | 4.2 |
| Max Consumption (W/m2) | 380 | 330 | 330 | 320 |
| Ave Consumption (W/m2) | 125 | 110 | 110 | 110 |
| Brightness (cd/m2) | 300~600 | 300~600 | 300~600 | 300~600 |
| Color Temperature (K) | 9300 | 9300 | 9300 | 9300 |
| View Angle (H/V) | 160 degrees / 160 degrees | 160 degrees / 160 degrees | 160 degrees / 160 degrees | 160 degrees / 160 degrees |
| Refresh Rate (Hz) | 2880 ~ 3840 | 2880 ~ 3840 | 2880 ~ 3840 | 2880 ~ 3840 |
| Working Temperature (u00b0C) | -10 ~ 40 | -10 ~ 40 | -10 ~ 40 | -10 ~ 40 |
| Protection Degree | IP54 | IP54 | IP54 | IP54 |
| Greyscale (bit) | u226513 | u226513 | u226513 | u226513 |
