US-Pixon Indoor Fine-Pitch LED Display
What Makes the US-Pixon Different

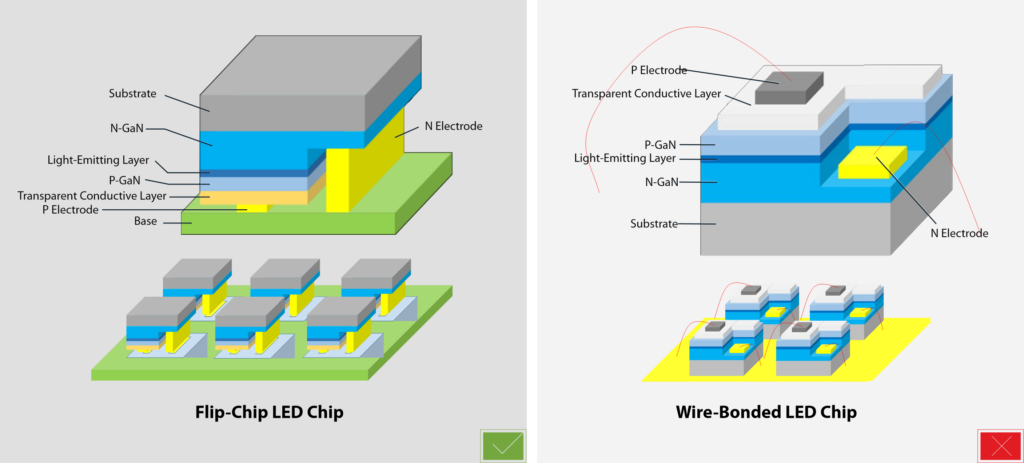

RGB Fully Flip-Chip COB Technology
Wire bonding is one of the oldest failure points in LED displays. US-Pixon skips it entirely. By flipping the chip directly onto the board, you get a cleaner electrical path, stronger heat transfer, and far fewer solder connections that can fail over time. The result is a display that runs brighter, cooler, and longer than anything built on traditional wire-bonded packaging.
Common-Cathode + DC-DC Driving
US-Pixon runs on a 3.8V + 2.8V common-cathode architecture combined with DC-DC conversion, built around an MP8771 driver stage supporting a 3V to 18V input range and a 2.8V/5A output. That combination cuts heat output by 40% compared to conventional driving methods, which means no fans, no added cooling hardware, and lower operating costs from day one. Less heat also means longer component life, which matters when a display is meant to run for years without trouble.
20,000:1 Contrast with Nano-Optical Coating
The surface of every US-Pixon panel is treated with a nano-optical material coating that absorbs ambient light rather than reflecting it. Deep blacks stay deep even in brightly lit rooms. Colors stay accurate. The 20,000:1 contrast ratio isn't a lab number, it's what you see on the wall every day.
3,840 Hz Refresh Rate, Zero Flicker
At 3,840 Hz, US-Pixon handles fast-moving content the way it was meant to be seen. Video playback is smooth, on-screen text is sharp, and the display photographs cleanly without rolling bands or flicker artifacts. Powered by smart module architecture, this refresh rate is consistent across all pixel pitch variants in the lineup.
170-Degree Viewing Angle, Every Direction
COB direct chip-on-board technology removes the physical limitations that traditional packaging puts on viewing angle. With US-Pixon, the image holds its color and brightness out to 170 degrees both horizontally and vertically. Whether someone is sitting front-and-center or at the far edge of the room, they're seeing the same picture.

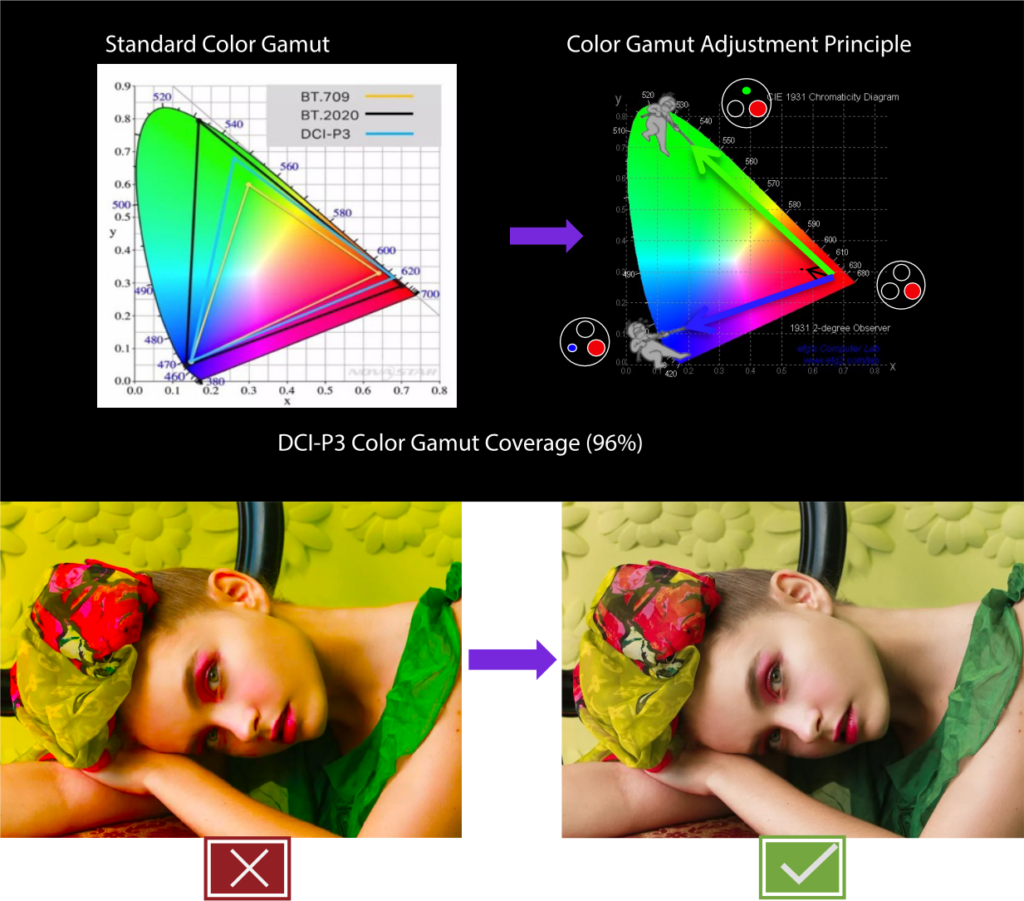

Wide Color Gamut, Precise Color Management
US-Pixon covers 96% of the DCI-P3 color space, well beyond what standard displays reproduce. A color gamut adjustment system maps the panel's output against the DCI-P3 reference points, correcting for the gaps that show up in typical RGB and BT.2020 gamuts. The result is color that holds up to scrutiny: skin tones look natural, saturated colors stay saturated, and what your content team designs on screen is what shows up on the wall.
It Fits. Whatever the Space.
US-Pixon cabinets are die-cast aluminum, checked with real-time 3D inspection, and hold a flatness tolerance of plus or minus 0.05 mm. Cabinet-to-cabinet precision lands at plus or minus 0.02 mm, tight enough that seams essentially disappear on a finished wall. Six-axis adjustment and magnetic module alignment make the assembly process fast without sacrificing accuracy. Splicing angles run from 90 degrees to 180 degrees, giving designers real flexibility on curved or angled installations.

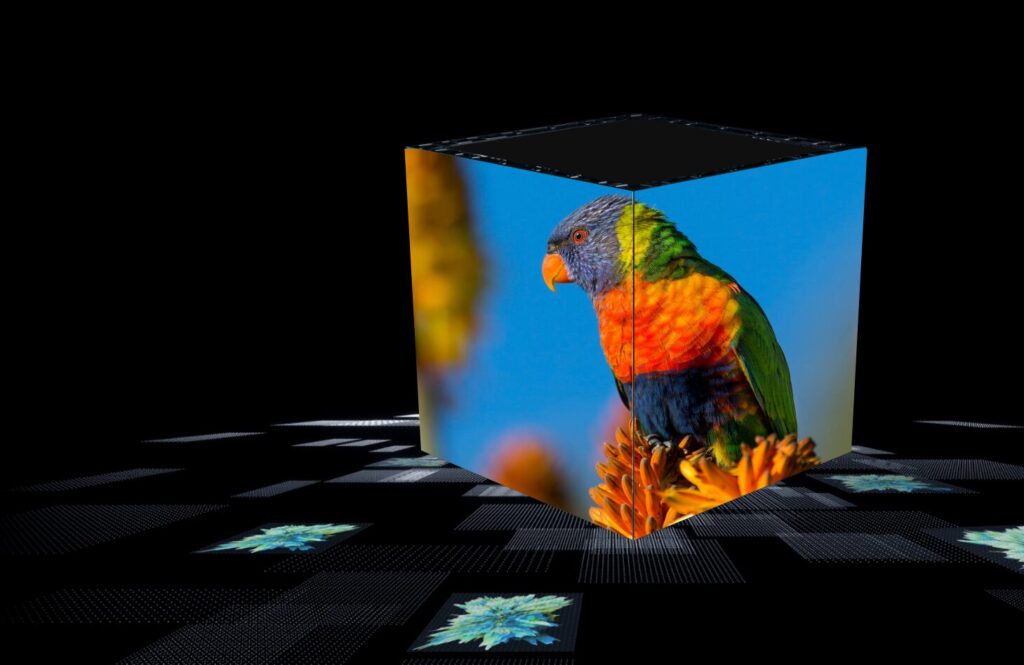

Built for Custom Configurations
Leveraging high-precision cutting techniques and die-casting accessories, US-Pixon offers a wide range of customizable splicing angles from 90 degrees to 180 degrees, with ultra-thin bezels that let designers bring curved walls, angled corners, and fully enclosed shapes to life without visible seams.
Built to Take a Hit
US-Pixon's flip-chip design cuts soldering-related failure points by 50% compared to wire-bonded panels, since there's no PN electrode bonding wire to fail in the first place. Each module is filled with a COB+ polymer material rated at 4H surface hardness, protecting against dead or dropped LEDs during shipping and install. In impact testing, the COB module withstood more than 10kg of applied force, holding up better than a standard SMD panel under the same test. The fully encapsulated COB surface also carries an IP54 rating, so cleaning is as simple as wiping it down with a wet cloth and water, no special handling required. Beyond the physical build, every display also ships with a set of smart capabilities designed to keep it running with less oversight: Dual Backup for redundancy, AI Intelligent Sensing, One-Touch Energy Saving, HDR 3.0, and 5G Transmission. Configuration options vary by project, so reach out to our engineering team to walk through which features fit your installation.
Every Display Includes Lifetime Benefits
Lifetime Support
Reach our support team by phone or message any time a technical issue surfaces. Support doesn't have an end date.
Lifetime Cloud Access
Your display is accessible remotely whenever you need it. No subscriptions, no restrictions, just open access from wherever you are.
Lifetime Software
Viplex ships with the display and stays active for its full life. It's included in what you bought, no renewals required.
Easy Assembly
Panels are plug-and-play and built to be modular. No specialist crew needed, your people can handle setup and changes on their own.
High Definition
High refresh rates keep the picture clean across the board. Text is legible, images hold detail, and video plays without issue.
Training
We cover daily operation and maintenance with your team so they're comfortable with the display from the start.
Multiple Communication Options
Hardwired, Wi-Fi modem, or cellular modem, pick what makes sense for your location. It's all covered under the contract for life.
60 FPS
60 frames per second across all full-motion video. Clean, consistent, and smooth every time it plays.
Trillions of Colors
Full 24-bit color means on-screen color matches what was designed. Accurate, with nothing lost in translation.
Unlimited Software Seats/Licenses
Creative Library, Custom Content, and Corporate Creative Portals are included across the board, with no limits on users and no per-seat billing.
Our Process
We have a simple, streamlined process once you have decided to purchase one of our Digital Displays.
Consultation & Survey
We review your site, define your sign program, and map every location, size, and mounting spec before design begins.
Design & Permitting
Certified shop drawings are produced and submitted for permit approval u2014 signed off by your team before production starts.
In-House Fabrication
Every sign is built in our own facility with in-house QC. No outsourcing means tighter quality and reliable lead times.
Installation & Sign-Off
Certified crews install every sign. We conduct a full walkthrough and provide documentation before handover.
US-Pixon Specifications
All specifications subject to change.
| Parameters | US-Pixon 1.875 | US-Pixon 1.56 | US-Pixon 1.25 | US-Pixon 0.9375 | US-Pixon 0.78 |
|---|---|---|---|---|---|
| Pixel Pitch (mm) | 1.875 | 1.56 | 1.25 | 0.9375 | 0.78 |
| LED Package Type | COB | COB | COB | COB | COB |
| Module Matrix | 80 x 90 | 96 x 108 | 120 x 135 | 160 x 180 | 192 x 216 |
| Module Dimensions | 150 x 168.75 (mm) | 150 x 168.75 (mm) | 150 x 168.75 (mm) | 150 x 168.75 (mm) | 150 x 168.75 (mm) |
| Modules Per Unit (W x H) | 4x2 | 4x2 | 4x2 | 4x2 | 4x2 |
| Cabinet Matrix | 320x180 | 384x216 | 480x270 | 640x360 | 768x432 |
| Cabinet Size (WxHxD) | 600x337.5x43.5 (mm) | 600x337.5x43.5 (mm) | 600x337.5x43.5 (mm) | 600x337.5x43.5 (mm) | 600x337.5x43.5 (mm) |
| Cabinet Area | 0.2025m² | 0.2025m² | 0.2025m² | 0.2025m² | 0.2025m² |
| Cabinet Weight | 5KG (11LBS) | 5KG (11LBS) | 5KG (11LBS) | 5KG (11LBS) | 5KG (11LBS) |
| Pixels / m sq (Density) | 284,444 | 409,600 | 640,000 | 1,137,777 | 1,638,400 |
| Cabinet Flatness | <= 0.1 mm | <= 0.1 mm | <= 0.1 mm | <= 0.1 mm | <= 0.1 mm |
| Brightness(NITS) | 600/1,000(Customize) | 600/1,000(Customize) | 600/1,000(Customize) | 600/1,000(Customize) | 600/1,000(Customize) |
| Color Temperature | 3,000 -10,000K | 3,000 -10,000K | 3,000 -10,000K | 3,000 -10,000K | 3,000 -10,000K |
| Ideal Viewing Angle | 170°(H) / 170°(V) | 170°(H) / 170°(V) | 170°(H) / 170°(V) | 170°(H) / 170°(V) | 170°(H) / 170°(V) |
| Contrast Ratio | 10,000 :1/20,000 :1 | 10,000 :1/20,000 :1 | 10,000 :1/20,000 :1 | 10,000 :1/20,000 :1 | 10,000 :1/20,000 :1 |
| Max. Power Consumption | 28W/ft² (300W/m²)/ 46W/ft² (500W/m²) | 31W/ft² (325W/m²)/ 47W/ft² (510W/m²) | 31W/ft² (325W/m²)/ 47W/ft² (510W/m²) | 35W/ft² (375W/m²)/ 49W/ft² (530W/m²) | 39W/ft² (425W/m²)/ 51W/ft² (550W/m²) |
| Avg. Power consumption | 14W/ft² (150W/m²)/ 23W/ft² (250W/m²) | 15W/ft² (160W/m²)/ 24W/ft² (260W/m²) | 15W/ft² (160W/m²)/ 24W/ft² (260W/m²) | 16W/ft² (175W/m²)/ 25W/ft² (265W/m²) | 19W/ft² (200W/m²)/ 26W/ft² (280W/m²) |
| Input Voltage | 100 ~ 240VAC | 100 ~ 240VAC | 100 ~ 240VAC | 100 ~ 240VAC | 100 ~ 240VAC |
| Video Frame Rate | 60 Frames/Second | 60 Frames/Second | 60 Frames/Second | 60 Frames/Second | 60 Frames/Second |
| Refresh Rate | >= 3,840 Hz | >= 3,840 Hz | >= 3,840 Hz | >= 3,840 Hz | >= 3,840 Hz |
| LED Life - Span | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours |
| Ingress Protection | IP 54 (Surface Cleaning with Water) | IP 54 (Surface Cleaning with Water) | IP 54 (Surface Cleaning with Water) | IP 54 (Surface Cleaning with Water) | IP 54 (Surface Cleaning with Water) |
| Operating Temperature | -10 to +40 deg C | -10 to +40 deg C | -10 to +40 deg C | -10 to +40 deg C | -10 to +40 deg C |
| Storage Temperature | -20°C to +60°C | -20°C to +60°C | -20°C to +60°C | -20°C to +60°C | -20°C to +60°C |
| Operating Humidity | 10 - 90% (No Condesation) | 10 - 90% (No Condesation) | 10 - 90% (No Condesation) | 10 - 90% (No Condesation) | 10 - 90% (No Condesation) |
| Storage Humidity | 10 - 95% (No Condesation) | 10 - 95% (No Condesation) | 10 - 95% (No Condesation) | 10 - 95% (No Condesation) | 10 - 95% (No Condesation) |
