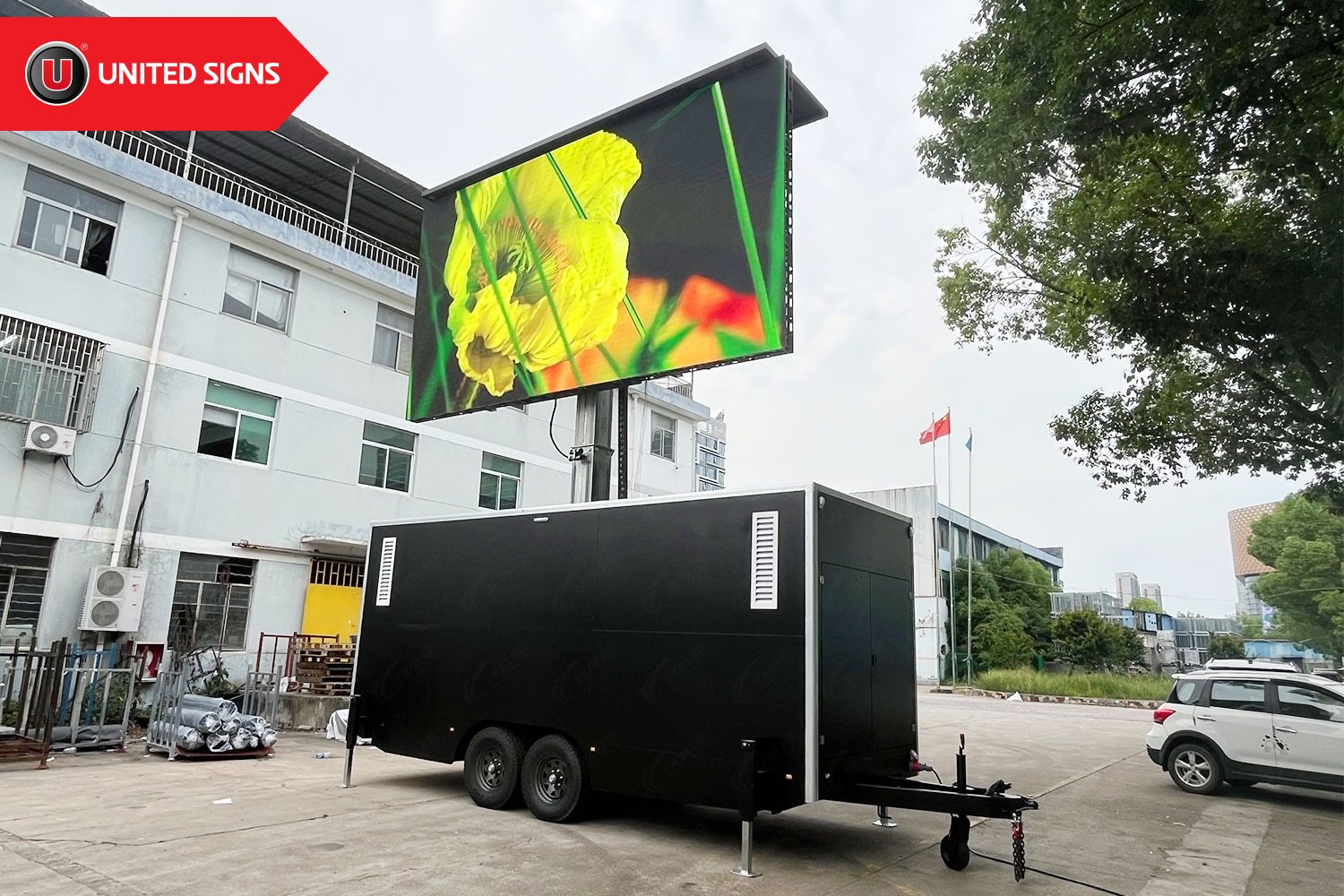

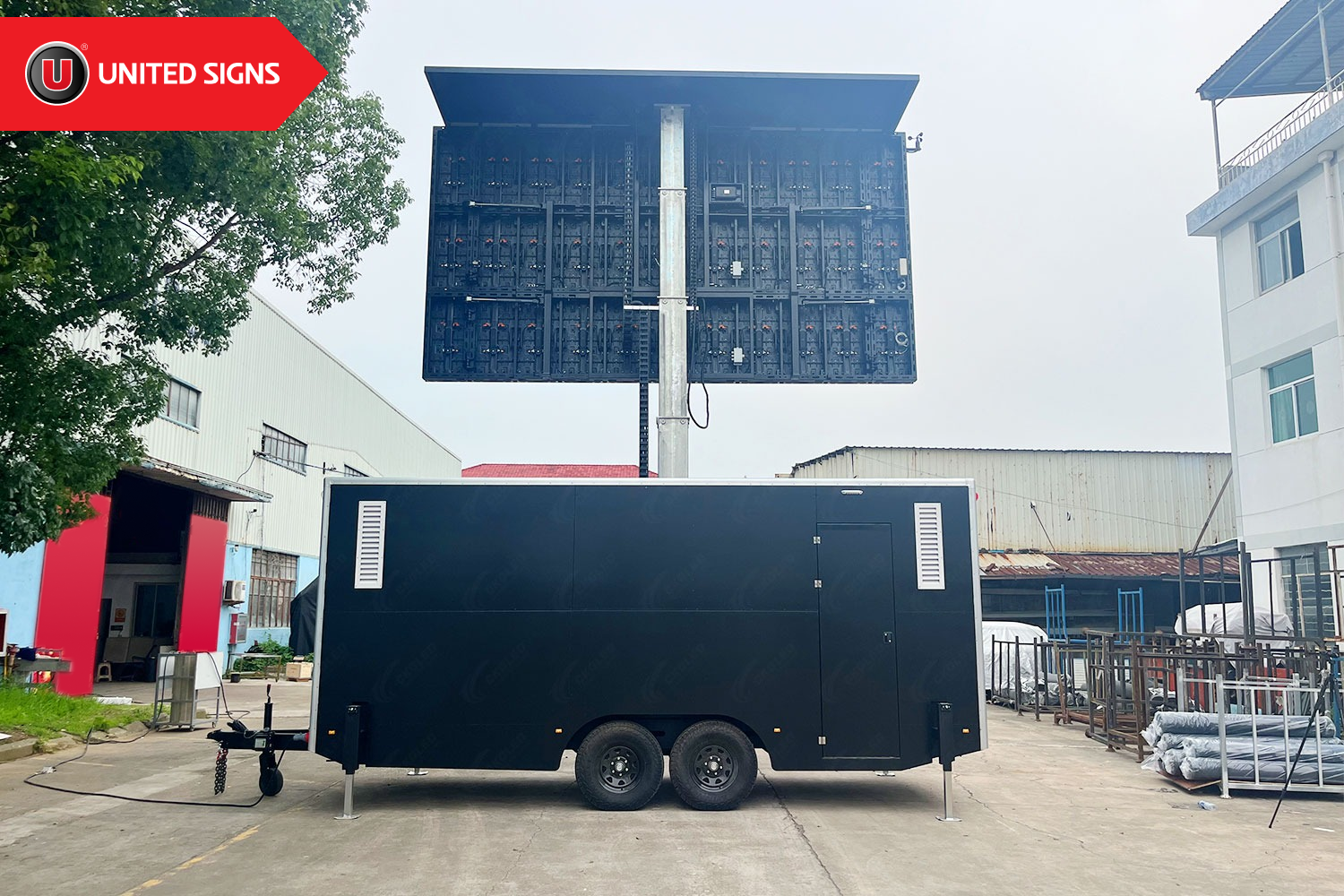

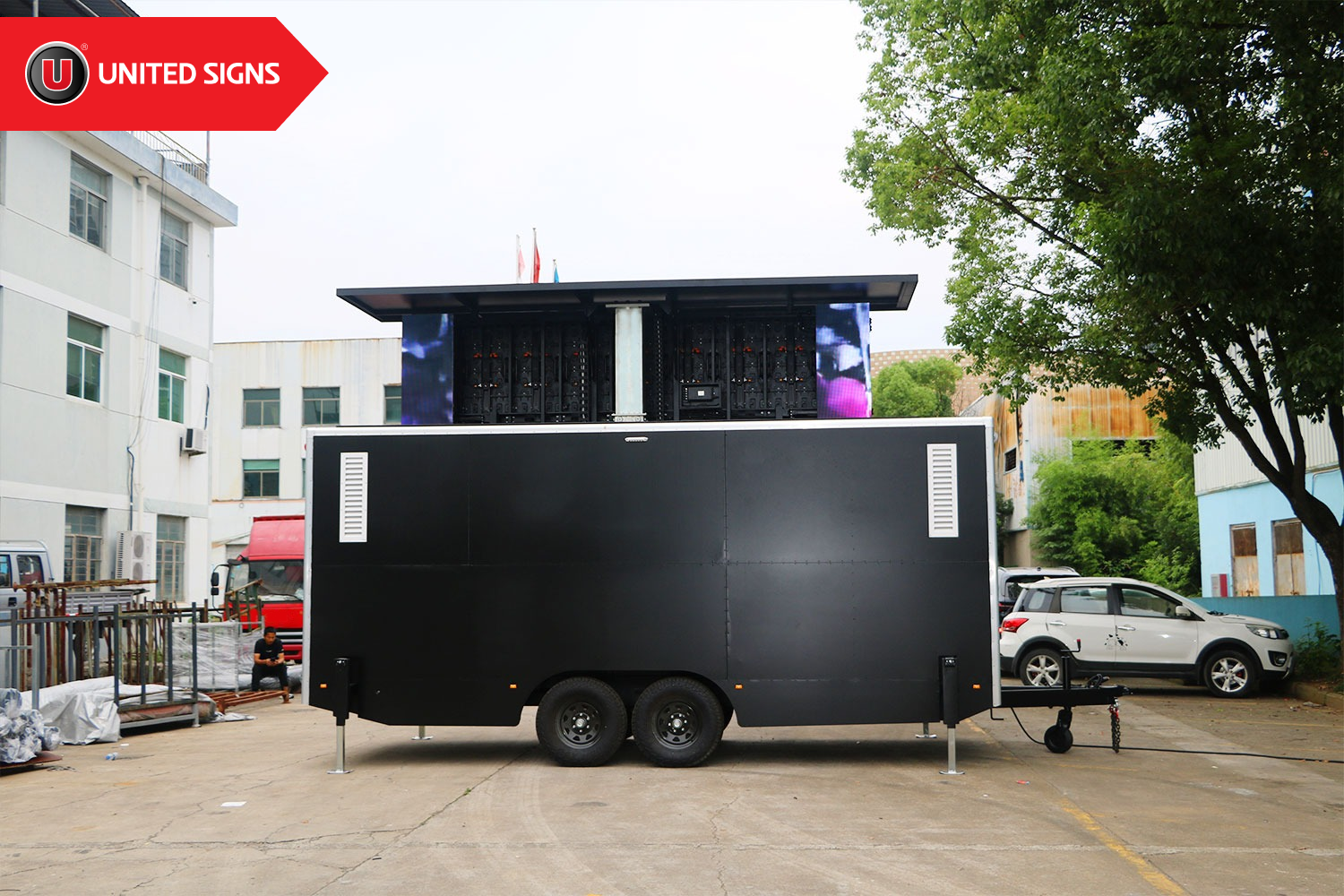

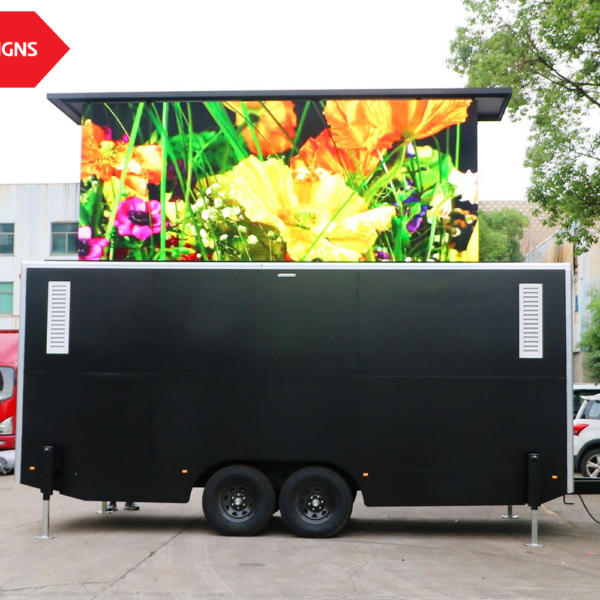

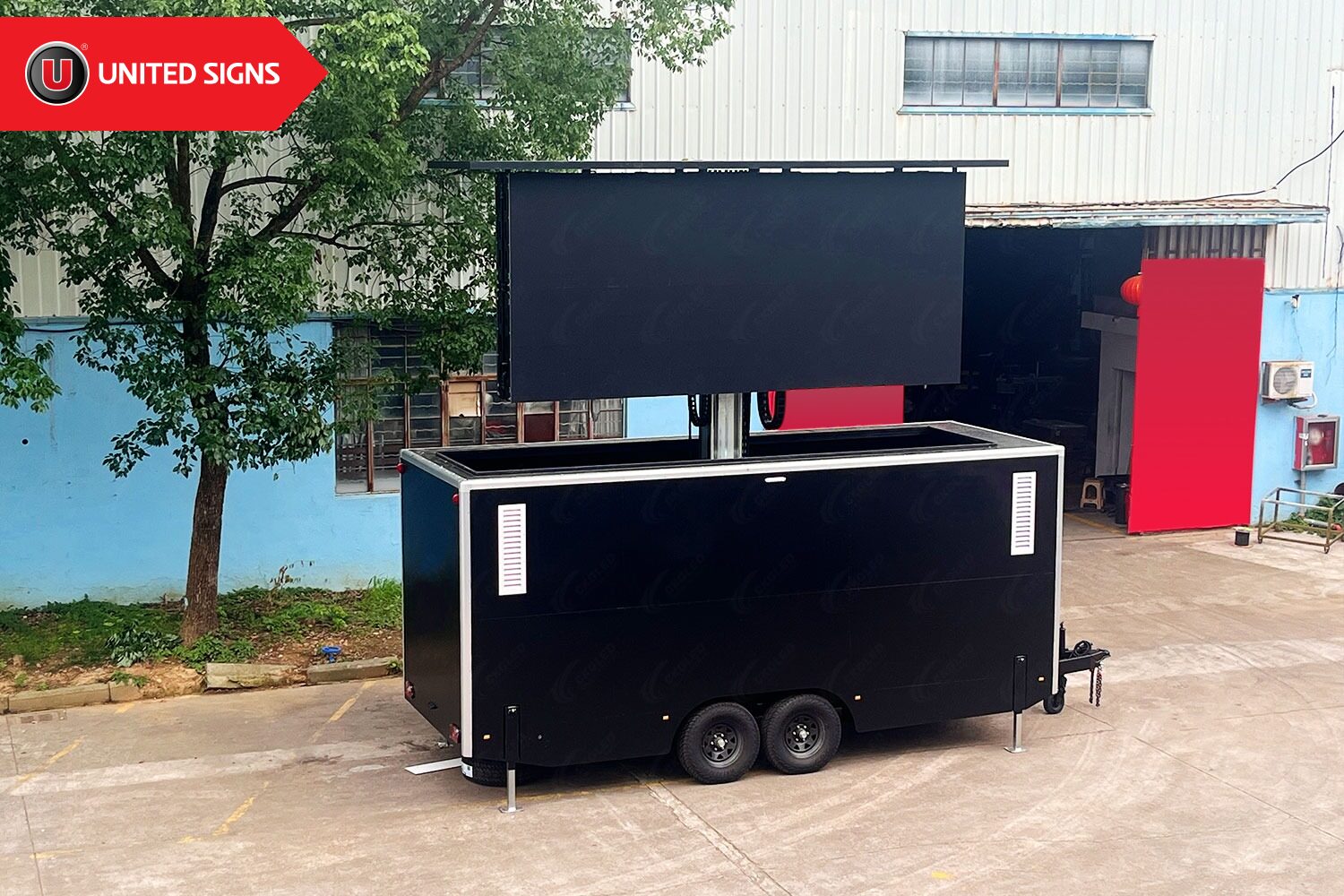

| Trailer Appearance | |
|---|---|
| Dimension (screen up) | 24’7”×6’10”×10’5” |
| Chassis | German-Made AIKO |
| Gross weight | 3500kg |
| Max speed | 100Km/h |
| Braking | Hydraulic braking |
| Axle | 2 axles, Bearing 5000kg |

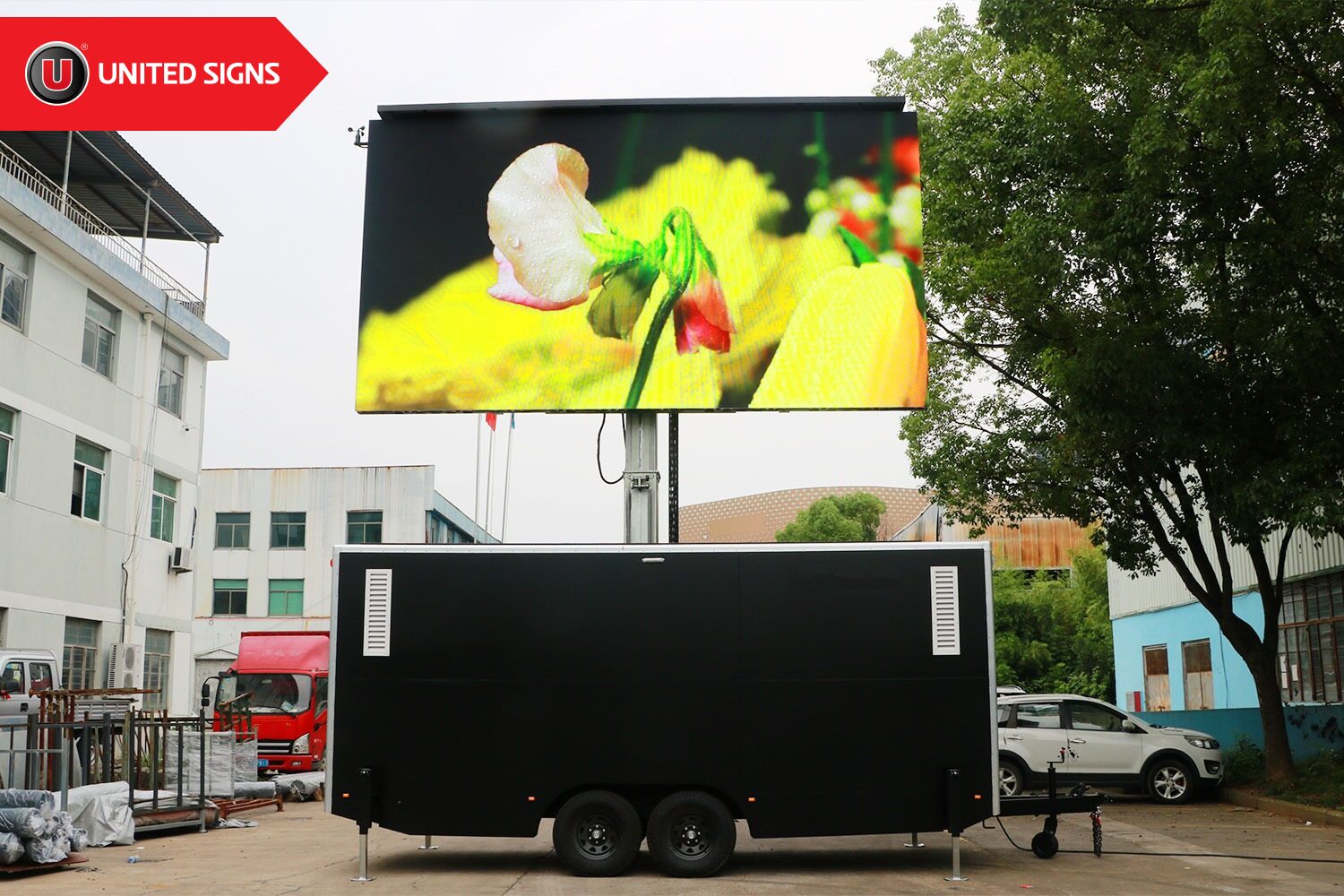

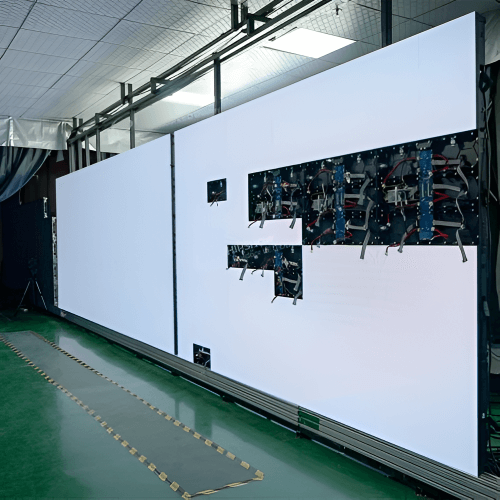

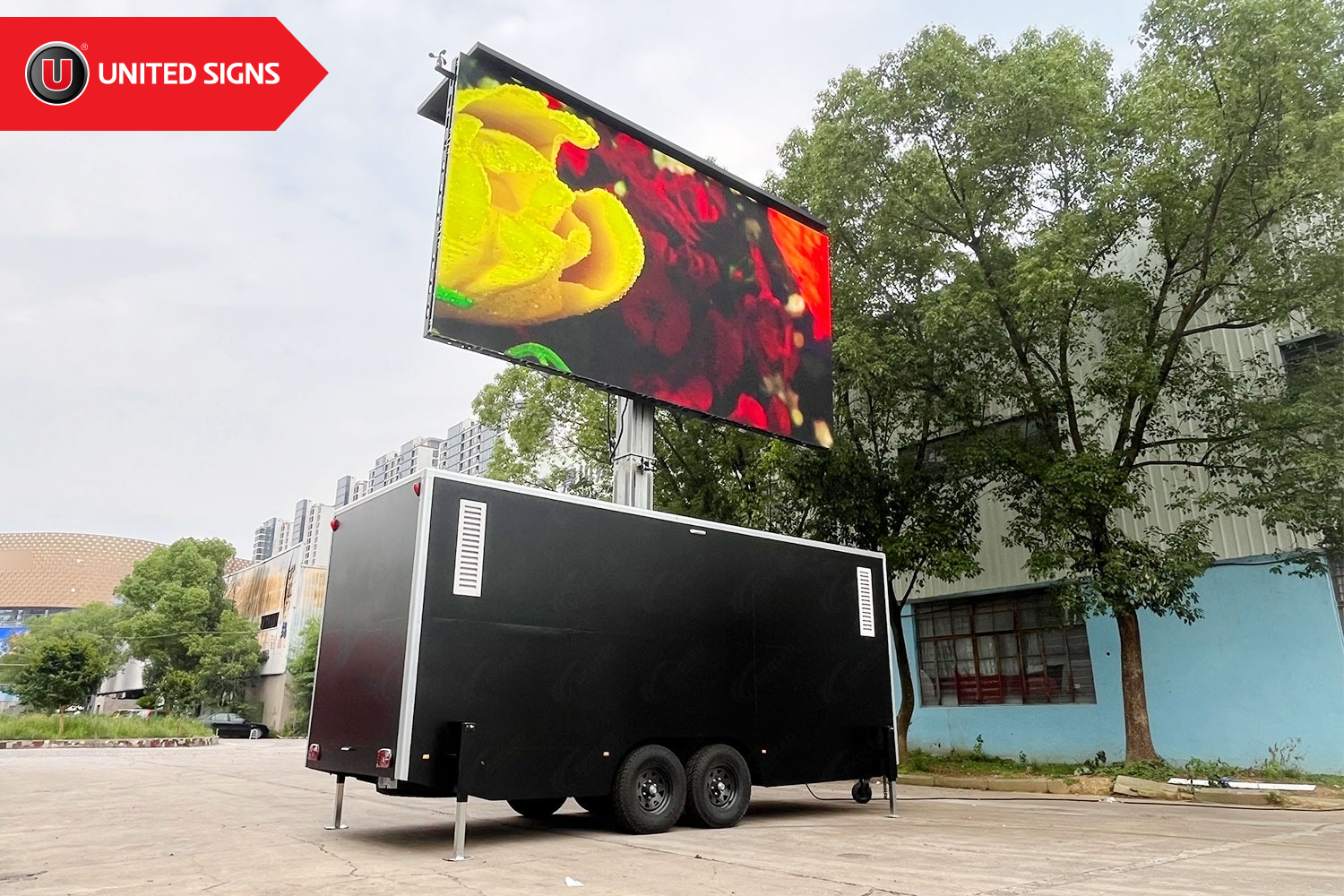

| LED Screen | |
| Dimension | 18’(W)×9’10”(H) |
| Module Size | 9.8”(W)×9.8”(H) |
| Pixel Pitch | P3.91mm, P4.81mm, etc |
| Brightness | 5500cd/㎡ |
| Lifespan | 100,000 hours |
| Cabinet Material | Die-casting aluminum |
| Cabinet Size | 1’7”×3’3” |
| Power Parameter | |
| Input Voltage | Three phases five wires 415V |
| Output Voltage | 220V |
| Inrush Current | 30A |
| Average Power Consumption | 250wh/㎡ |

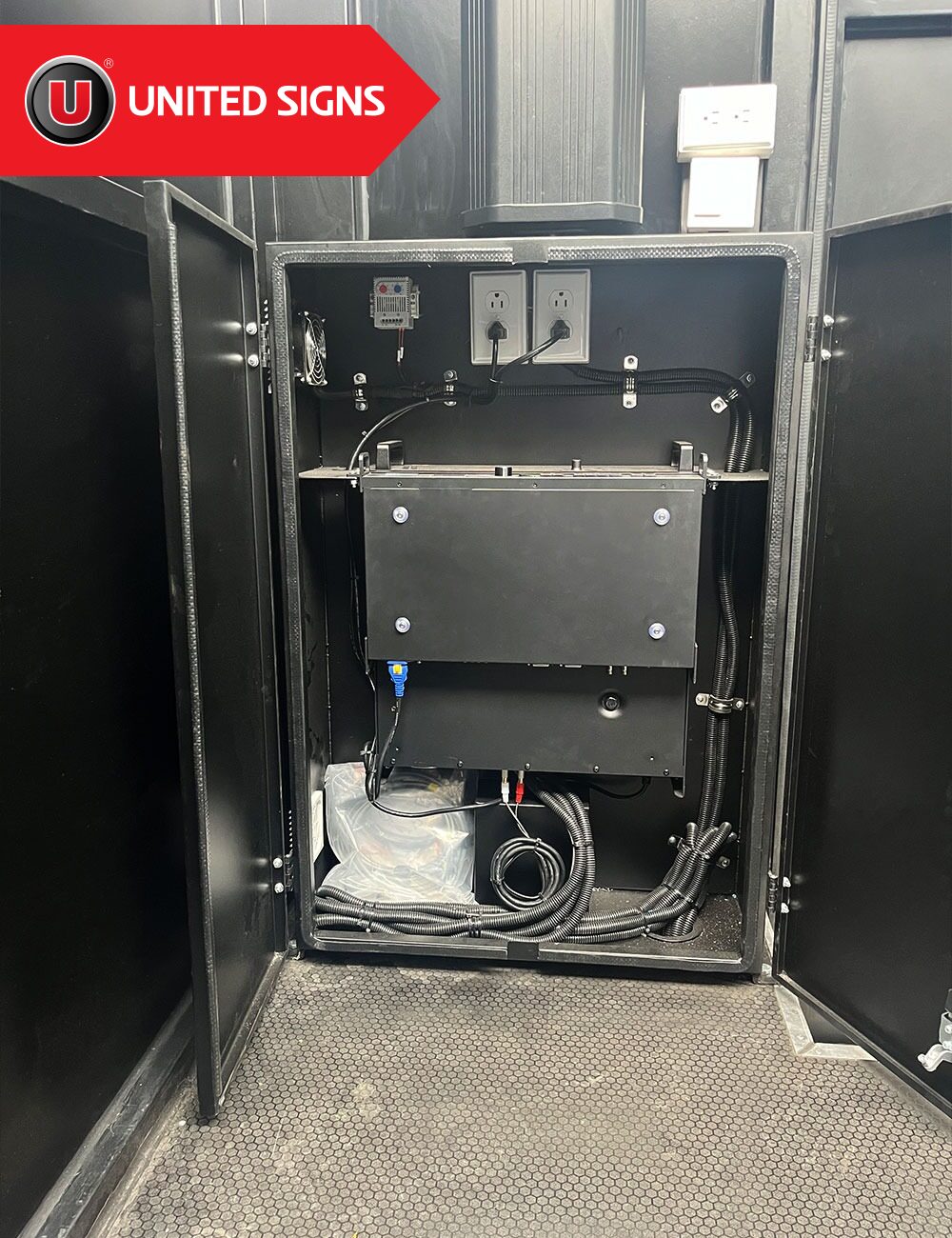

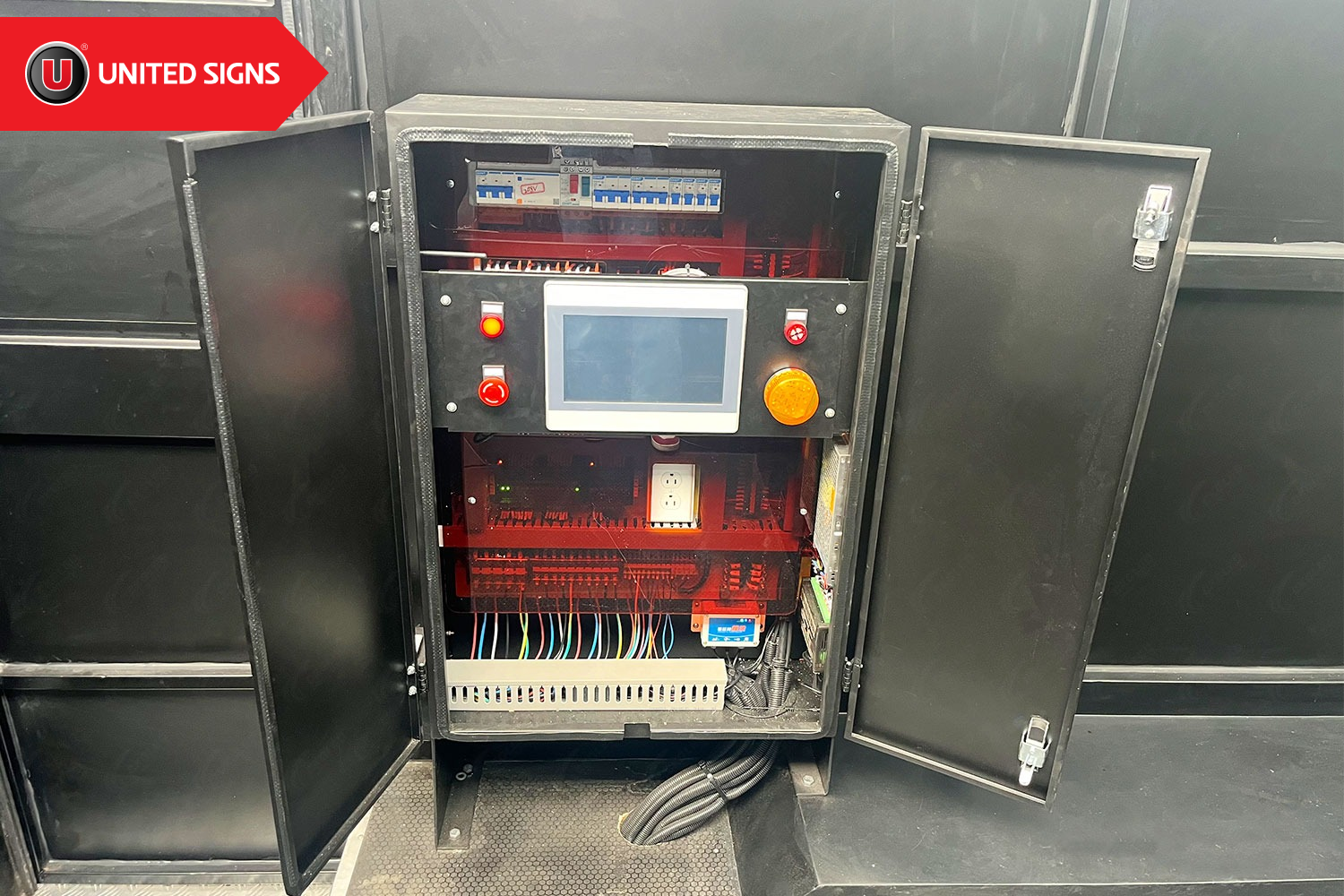

| Multimedia Control System | |
| Video Processor | NOVA |
| Model | VX400S |
| Power Amplifier | 1000W |
| Speaker | Speaker 200W×4 |
| Hydraulic System | |
| Wind Proof Level | Level 8 |
| Supporting Legs | Stretching Distance 11” |

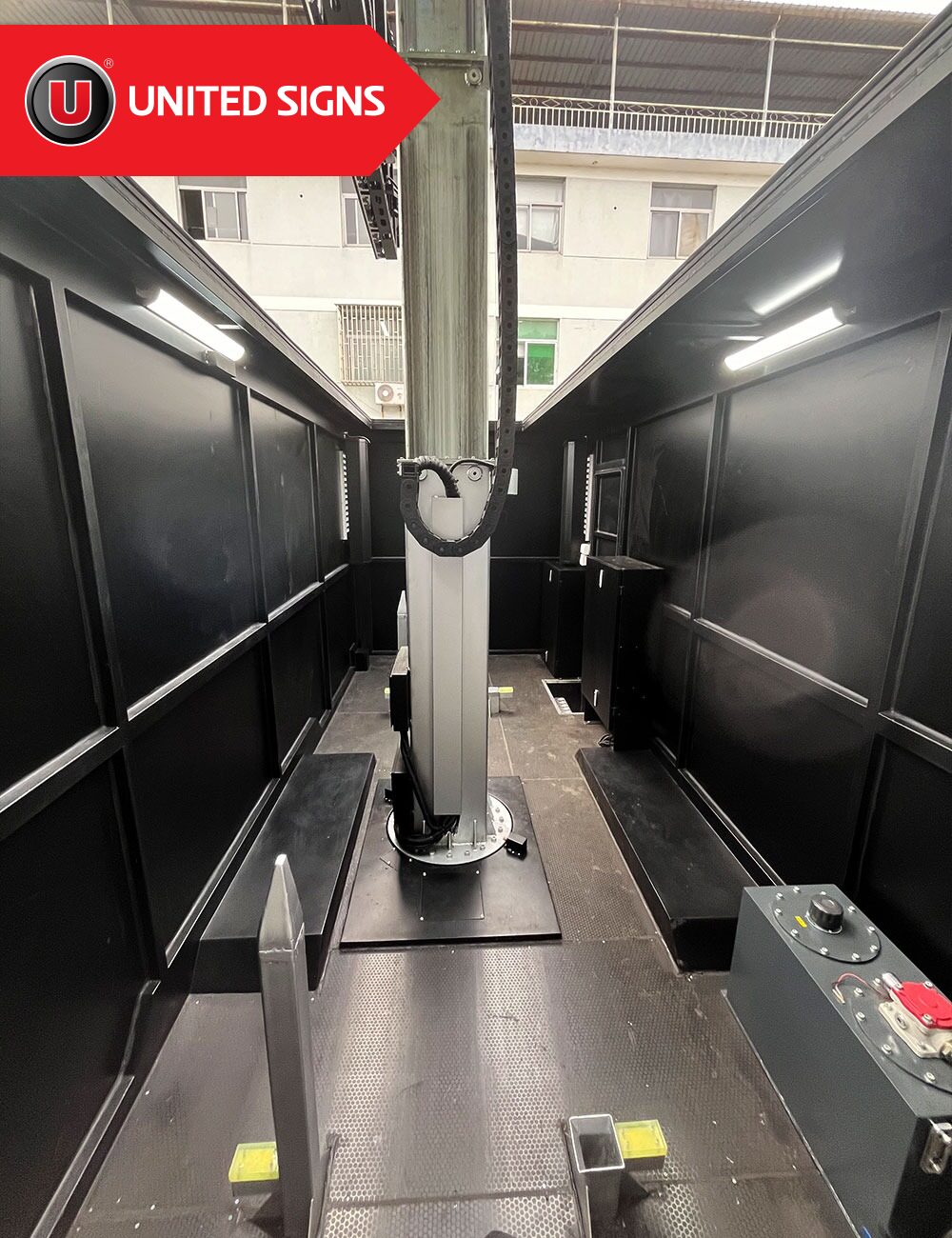

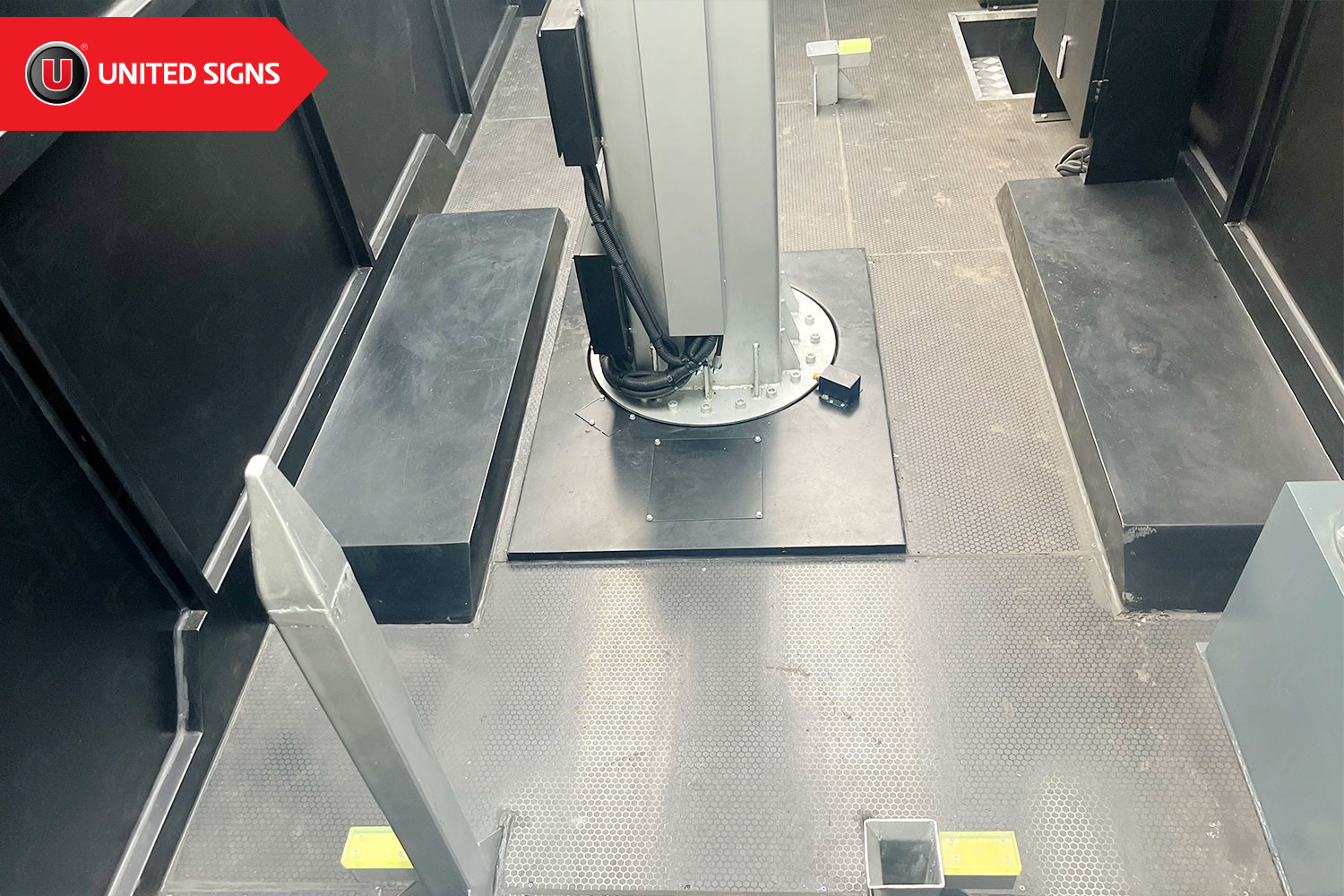

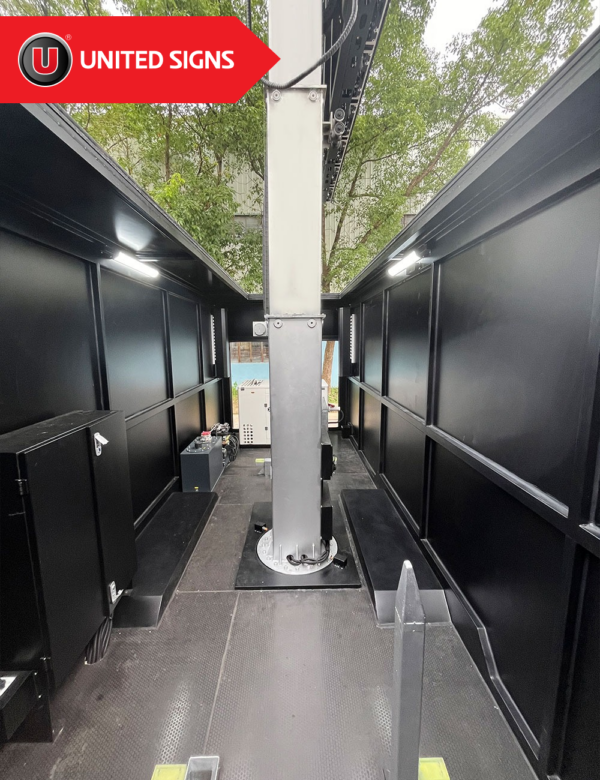

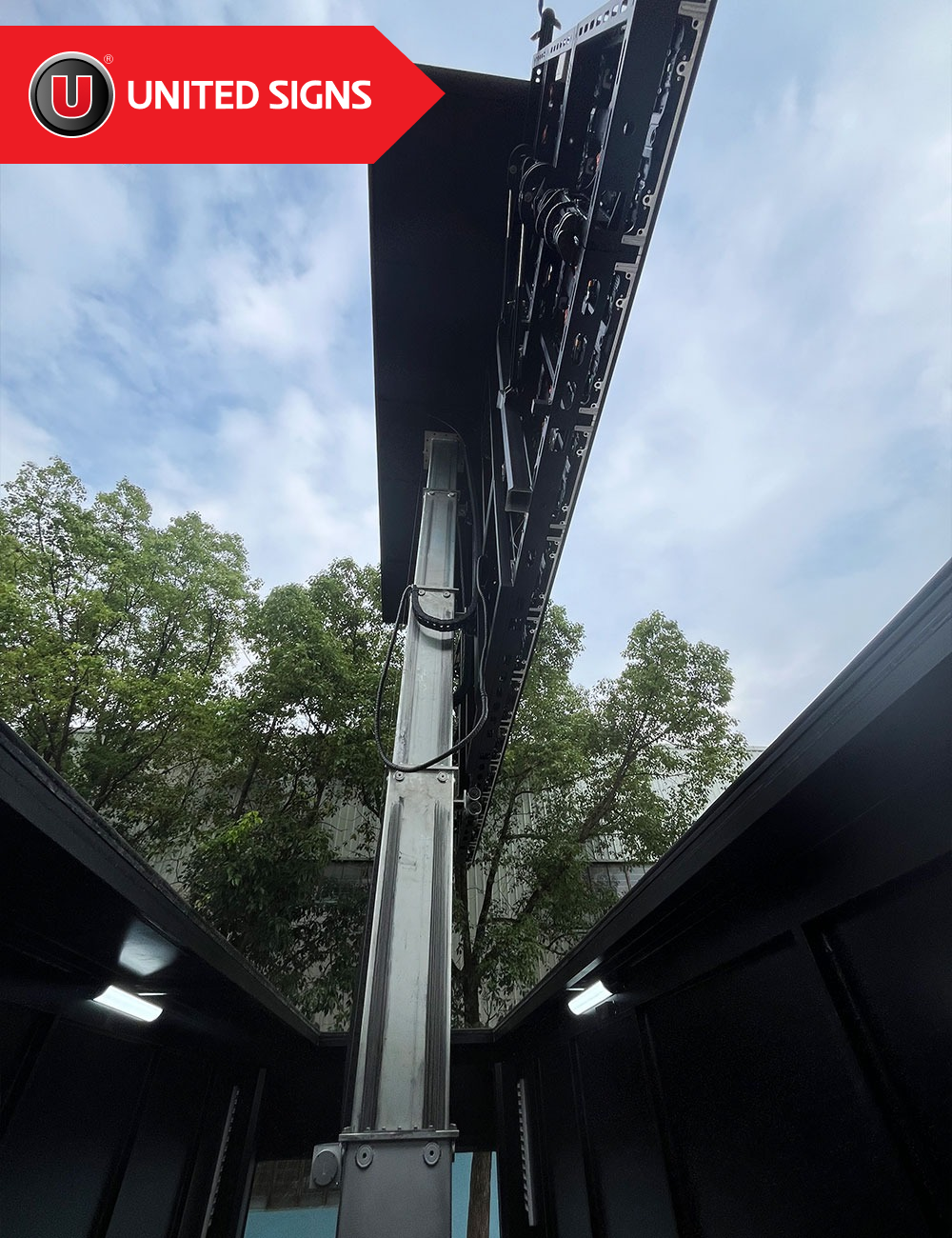

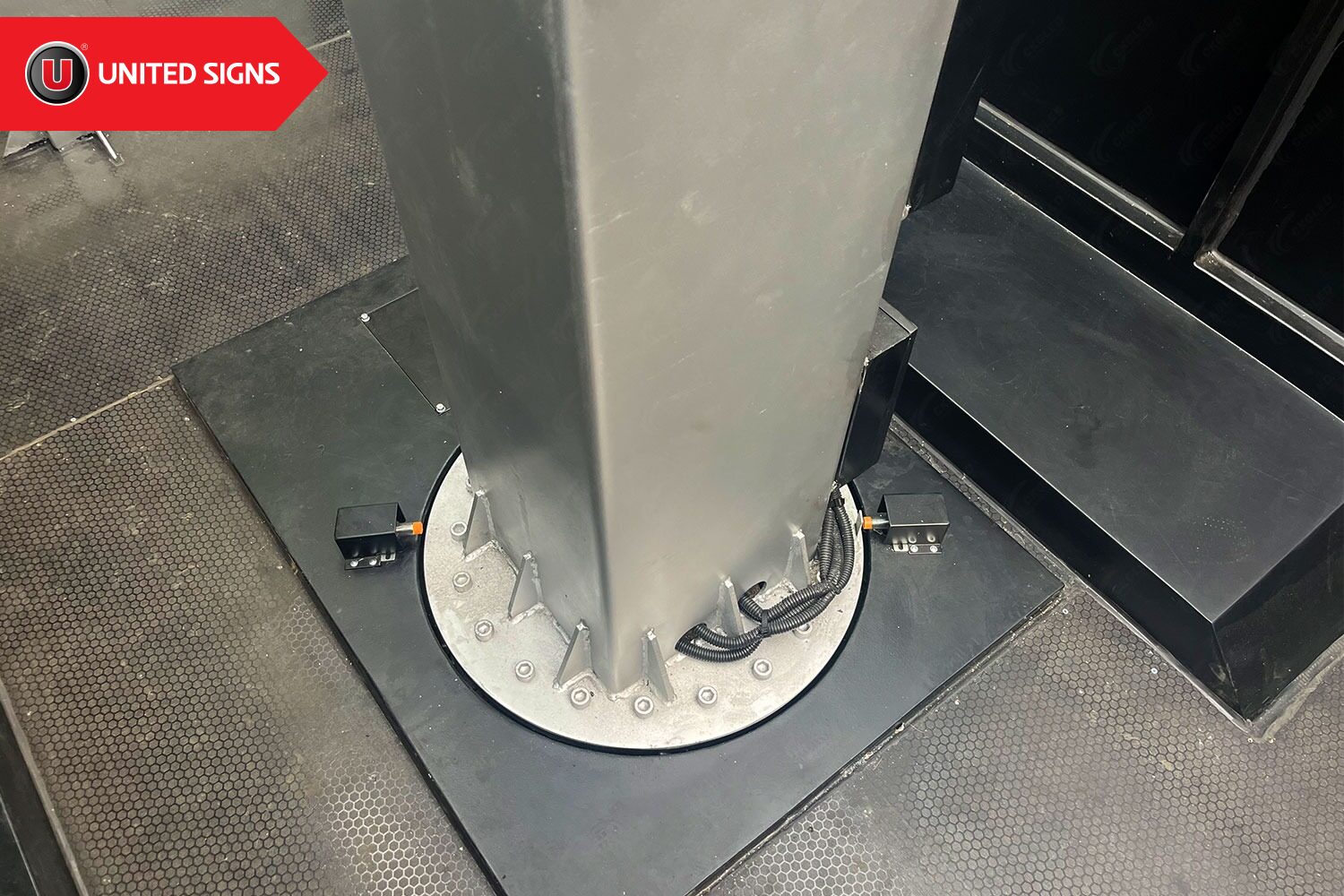

| Hydraulic Lifting | Lifting Range 15’1”, Bearing 3000kg |

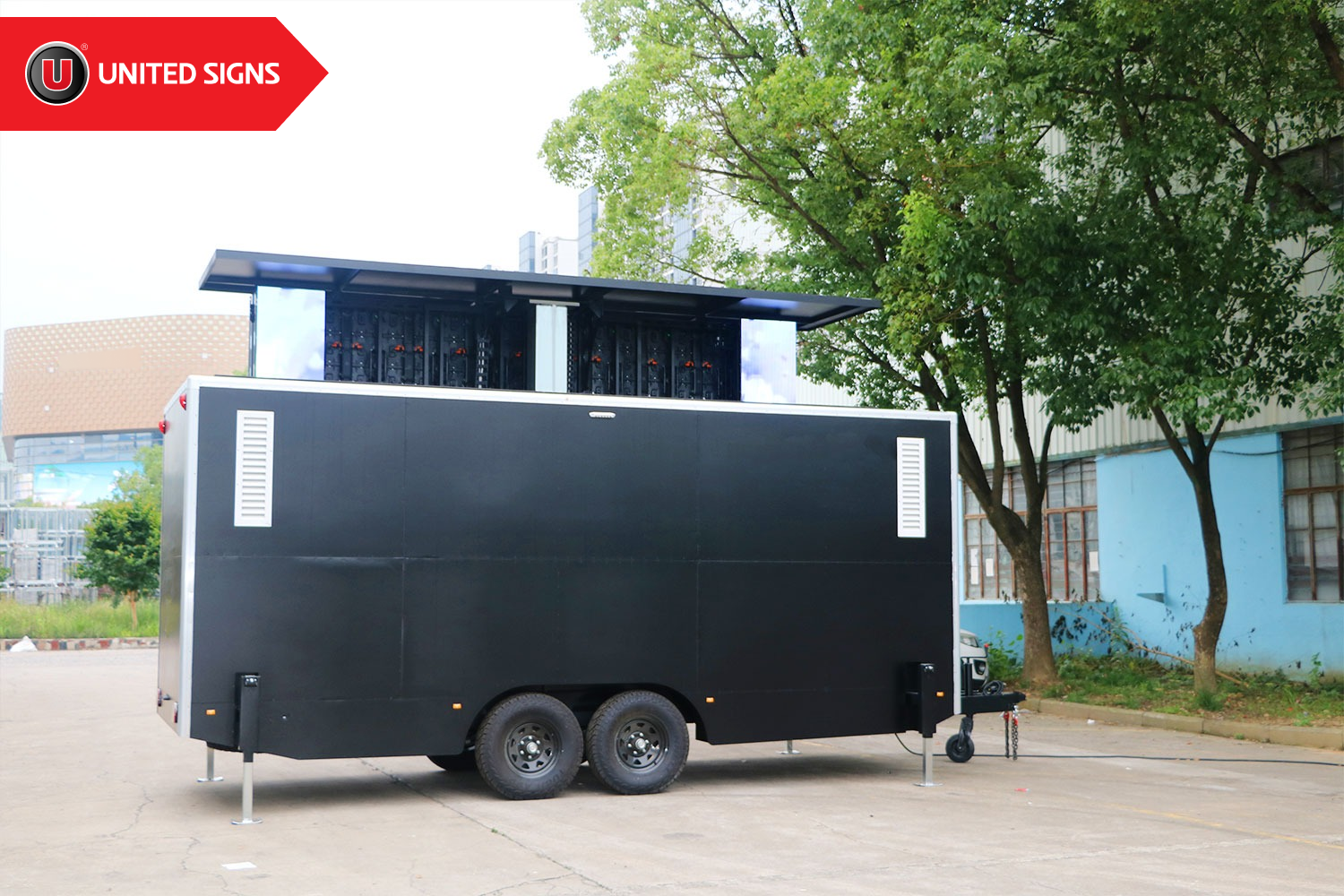

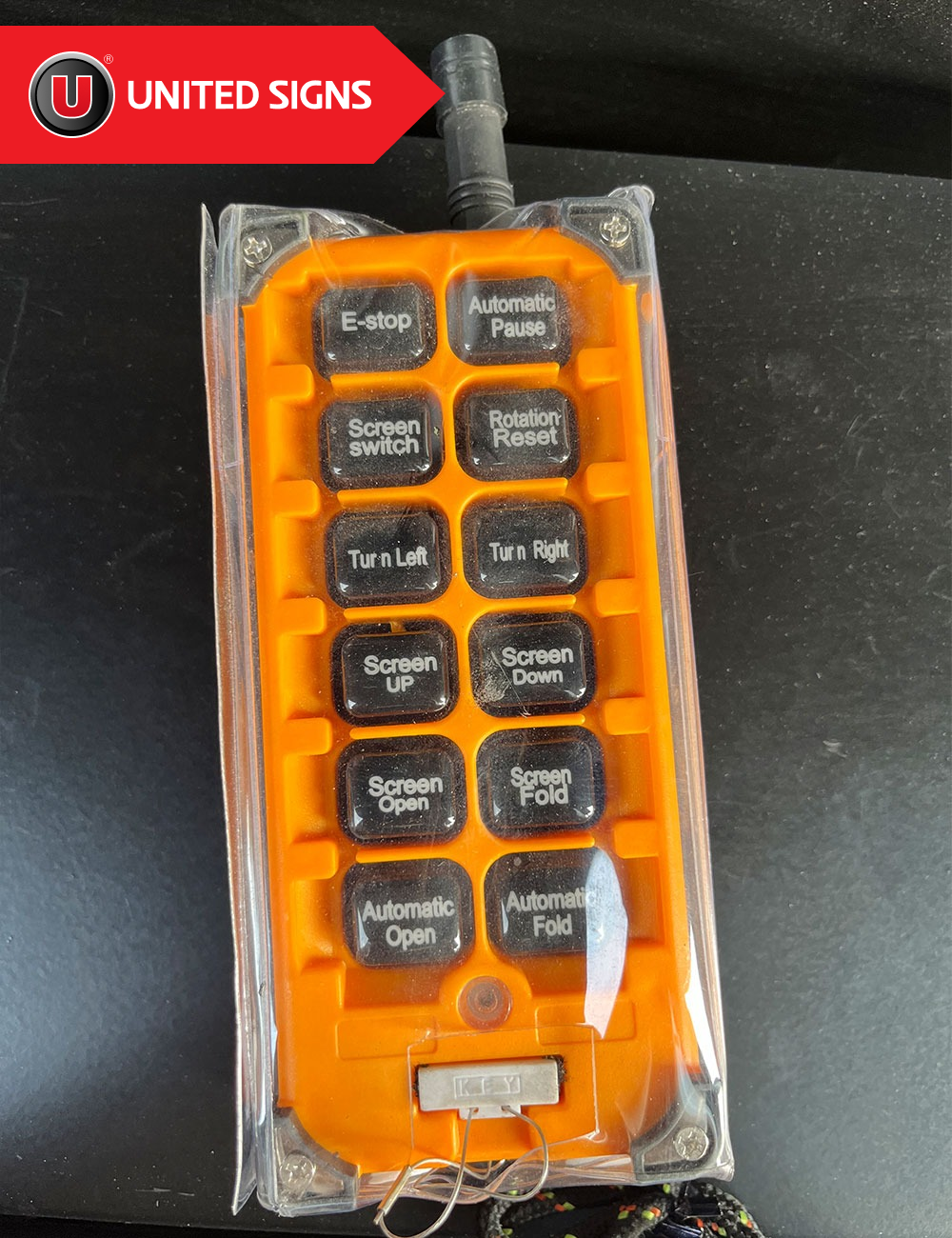

| Folding System | Fold the ear screens on 4pcs electric pushrods folded both sides |

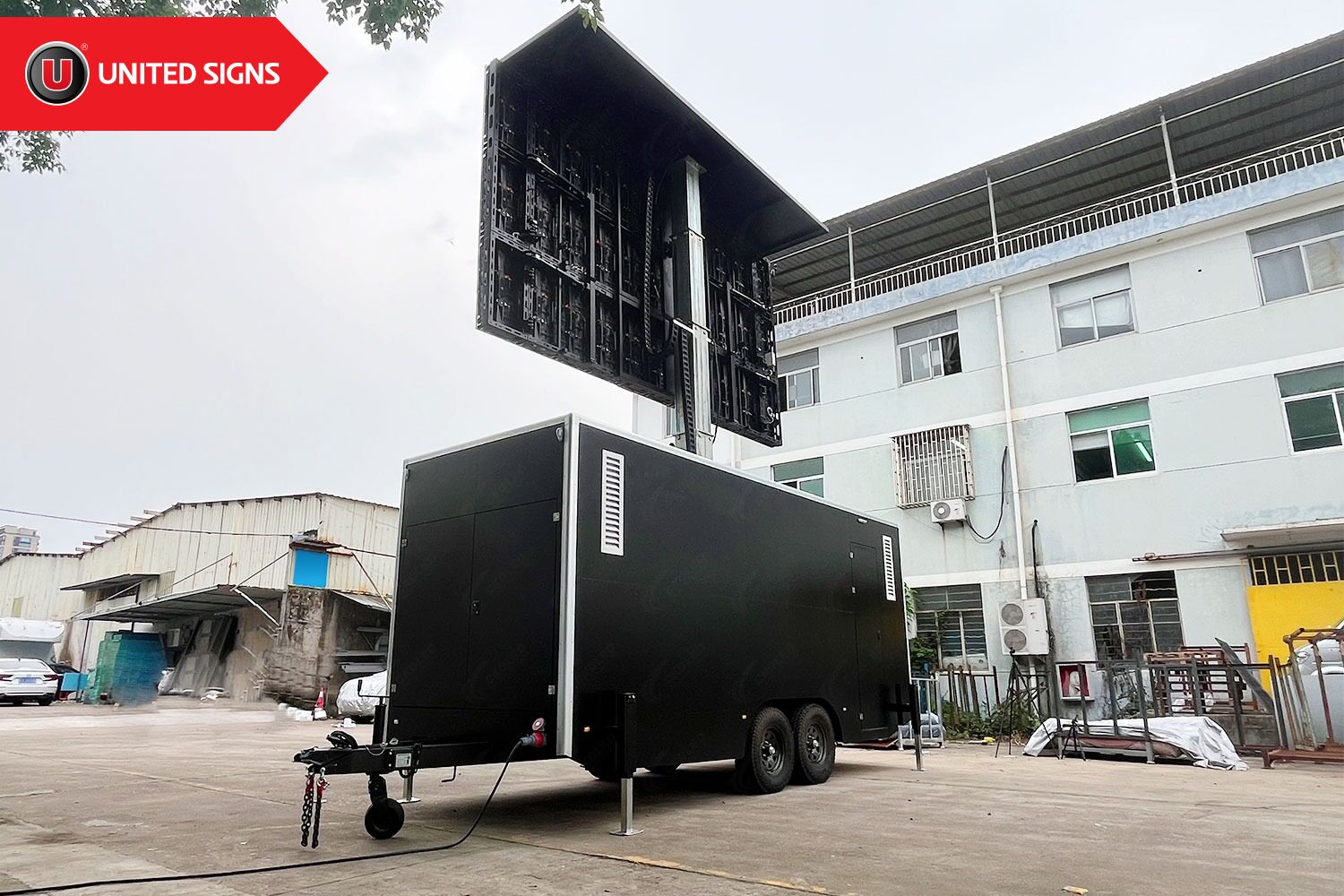

| Rotation | Electric rotation 360 degrees |
| Wind Speed Sensor | Alarm with mobile APP |
